8210SRC21.31A001

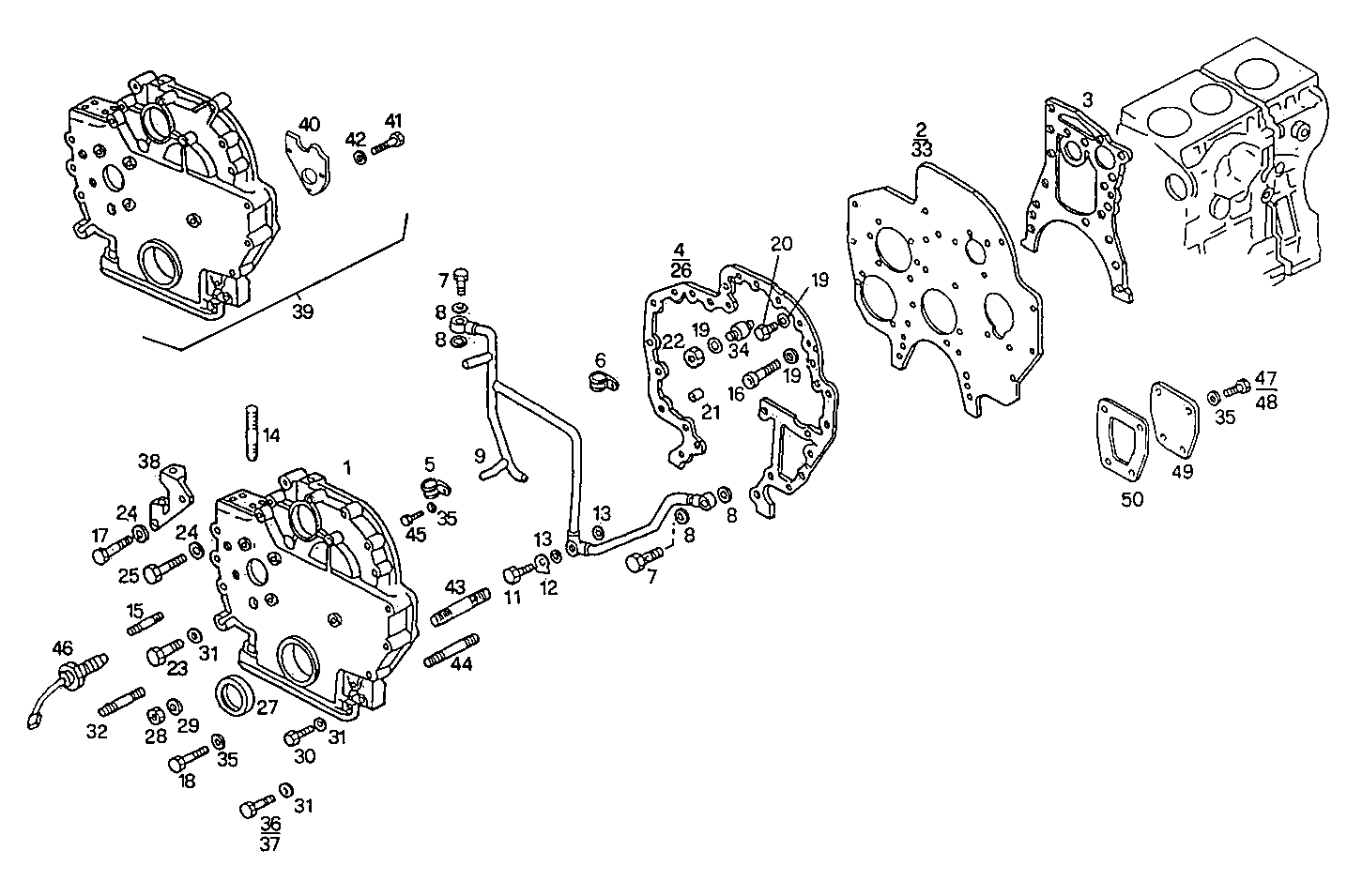

0430.206/01 INSERTED BOX ASSEM.

Iveco/FPT INSERTED BOX ASSEM.

Item Part number Description
1 500302069 FRONT C.CASE COVER ASSY REAR [up to 438825]
2 99450902 PLATE
3 4679630 FLAT ENGINE GASKET
4 99450903 FLAT ENGINE GASKET
5 852410 FASTENING BRACKET
6 4656139 FASTENING BRACKET
7 4707984 SCREW CONNECTOR
8 10262760 SEAL GASKET Ø8,2 MM
9 500302886 HYDRAULIC LINE [from 419250]
11 4679620 SCREW CONNECTOR
12 852409 LOCKING PLATE Ø10,5 MM
13 10284460 SEAL GASKET Ø10X16 MM
14 13449424 STUD M10X15X22
15 13552521 STUD M12X1,25X35 MM
16 14307430 SOCKET-HEAD SCREW M10X1,25X25 MM
17 16606524 HEXAGON BOLT M8X70 MM
18 11343724 HEXAGON BOLT M10X70 MM
19 17090274 WASHER Ø10X20 MM
20 15970733 HEXAGON BOLT M10X1,25X25 MM
21 10837810 DOWEL PIN Ø12 MM
22 17038221 HEXAGON NUT M10
23 16606424 HEXAGON BOLT M8X65 MM
24 17094914 WASHER 8x16
25 16045124 HEXAGON BOLT M8X95
26 98476488 FLAT ENGINE GASKET [up to 438825]
27 98467211 WASHER FRONT
28 17038521 HEXAGON NUT M12X1,5
29 12646901 WASHER Ø12X28 MM
30 15971721 SCREW M10X1,25X95
31 17095104 WASHER Ø10X21X2 MM
32 13453721 STUD M10X25X30
33 99430209 PLATE [up to 438825]
34 13449330 STUD M10X15X20 MM
36 15971424 HEXAGON BOLT M10X80 MM
37 15972424 HEXAGON BOLT M10X1,25X130 MM
38 98462000 SUPPORT
39 99453829 FRONT C.CASE COVER ASSY [from 438826]
40 99435080 SUPPORT [from 438826]
41 16603524 SCREW M6X12 MM (8.8)
42 17088474 WASHER Ø6X12 MM
43 98471171 STUD
44 13552724 STUD M12X1,25X24X45 MM
45 16042924 SCREW M8X1,25X10 MM
46 4861291 TRANSMITTER
47 15970921 HEXAGON BOLT M10X1,25X35 MM
48 15970521 HEXAGON BOLT M10X20 MM
49 4687341 COVER
50 4864032 FLAT ENGINE GASKET
