8210SRC22.00

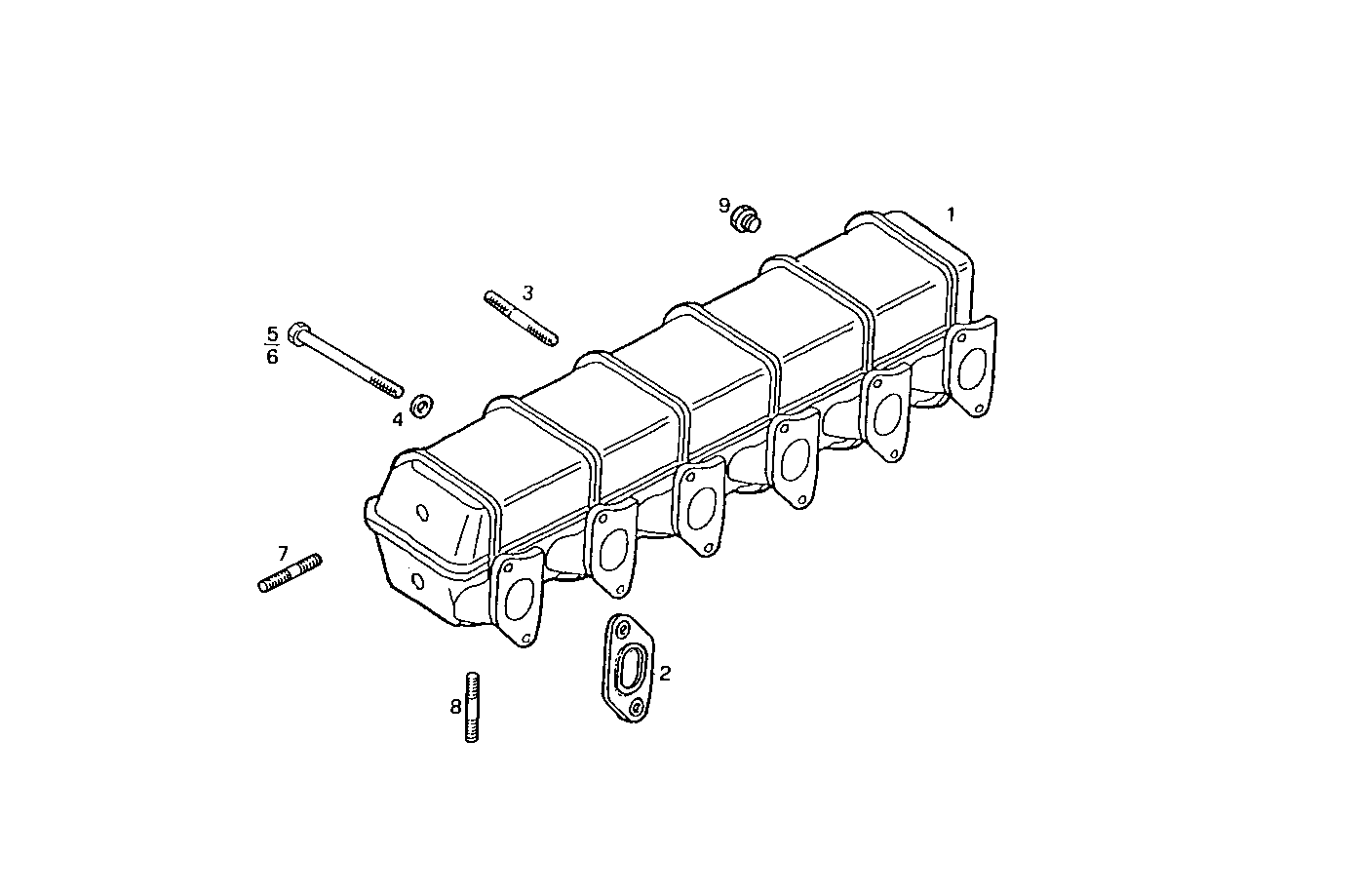

0710.114 INTAKE MANIFOLD
| Item | Part number | Description |
|---|---|---|
| 1 | 99441396 | INTAKE ELBOW |
| 2 | 99440847 | INTAKE ELBOW GASK. |
| 3 | 16746634 | STUD |
| 4 | 17095114 | WASHER Ø10X21 MM |
| 5 | 11307024 | SCREW M10X1,25X40 MM |
| 6 | 15972824 | SCREW M10X1,25X150 |
| 7 | 16727624 | STUD M6X16 MM |
| 8 | 13540824 | STUD M6X12X14 |
| 9 | 16994350 | THREADED PLUG M12X1,5 |
