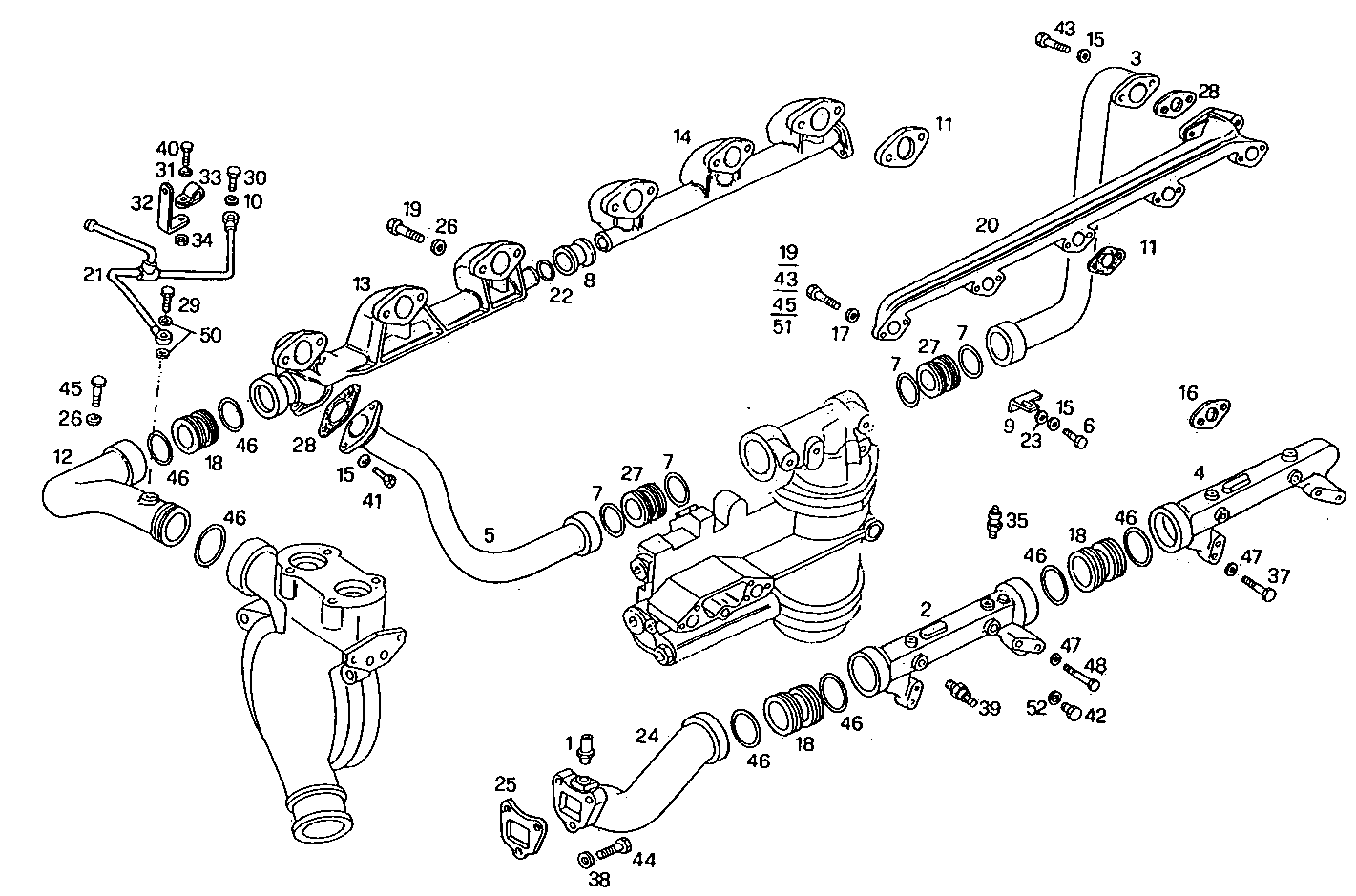

| Item |
Part number |
Description |
|
1 |
4633506 |
THREADED UNION M22X1,5 |
|
2 |
98416925 |
WATER MANIFOLD FRONT |
|
3 |
500362166 |
WATER PIPE |
|
4 |
99478899 |
WATER MANIFOLD |
|
5 |
99438837 |
WATER PIPE |
|
6 |
16605424 |
SCREW M8X16 MM (8.8) |
|
7 |
500318396 |
O-RING |
|
8 |
4762647 |
CONNECTOR SLEEVE |
|
9 |
99449711 |
RETAINER BUNDY |
|
10 |
98474306 |
WASHER Ø12X20 MM SP=1,9 MM |
|
11 |
500308780 |
FLAT ENGINE GASKET |
|
12 |
98478087 |
WATER PIPE |
|
13 |
4813618 |
WATER MANIFOLD |
|
14 |
4813620 |
WATER MANIFOLD REAR |
|
15 |
17089474 |
SPRING WASHER Ø8X16 MM SP=1,4 MM |
|
16 |
4852097 |
FLAT ENGINE GASKET |
|
17 |
4852211 |
WASHER |
|
18 |
4859434 |
CONNECTOR SLEEVE [from 301481] |
|
19 |
16605924 |
SCREW M8X40 MM |
|
20 |
98471454 |
WATER MANIFOLD |
|
21 |
99475753 |
WATER PIPE |
|
22 |
98458442 |
O-RING Ø24,99 MM SP=3,53 MM [from 657424] |
|
23 |
12646724 |
WASHER Ø8X21X1,5 MM |
|
24 |
98415295 |
WATER PIPE |
|
25 |
61318850 |
FLAT ENGINE GASKET |
|
26 |
17094914 |
WASHER 8x16 |
|
27 |
99431278 |
CONNECTOR SLEEVE ASSY |
|
28 |
4863951 |
FLAT ENGINE GASKET |
|
29 |
4864080 |
SCREW CONNECTOR M10X1,25 |
|
30 |
4864082 |
BANJO BOLT M12X1,5X25 MM |
|
31 |
17088474 |
WASHER Ø6X12 MM |
|
32 |
98466074 |
RETAINER |
|
33 |
17314890 |
CLIP |
|
34 |
17037821 |
HEXAGON NUT M6X1 |
|
35 |
4857250 |
TRANSMITTER |
|
37 |
11343821 |
HEXAGON BOLT M10X1,25X50 MM |
|
39 |
4837951 |
TEMP. TRANSMITTER CEBI |
|
40 |
16603624 |
HEXAGON BOLT M6X16 MM (8.8) |
|
41 |
16043524 |
SCREW M8X22 MM |
|
42 |
98412657 |
TEMP. TRANSMITTER |
|
43 |
16605824 |
HEXAGON BOLT M8X35 MM |
|
44 |
16606024 |
SCREW M8X45 MM |
|
45 |
16606524 |
HEXAGON BOLT M8X70 MM |
|
46 |
500349805 |
O-RING Ø56,52X5,33 MM |
|
47 |
17095114 |
WASHER Ø10X21 MM |
|
48 |
15888721 |
HEXAGON BOLT M10X1,25X55 MM |
|
50 |
98474305 |
WASHER Ø10X17 MM SP=2,3 |
|
51 |
16606624 |
HEXAGON BOLT M8X80 MM |
|
52 |
98474309 |
WASHER Ø16X24 MM SP=1,9 MM |
