8210SRC22.00

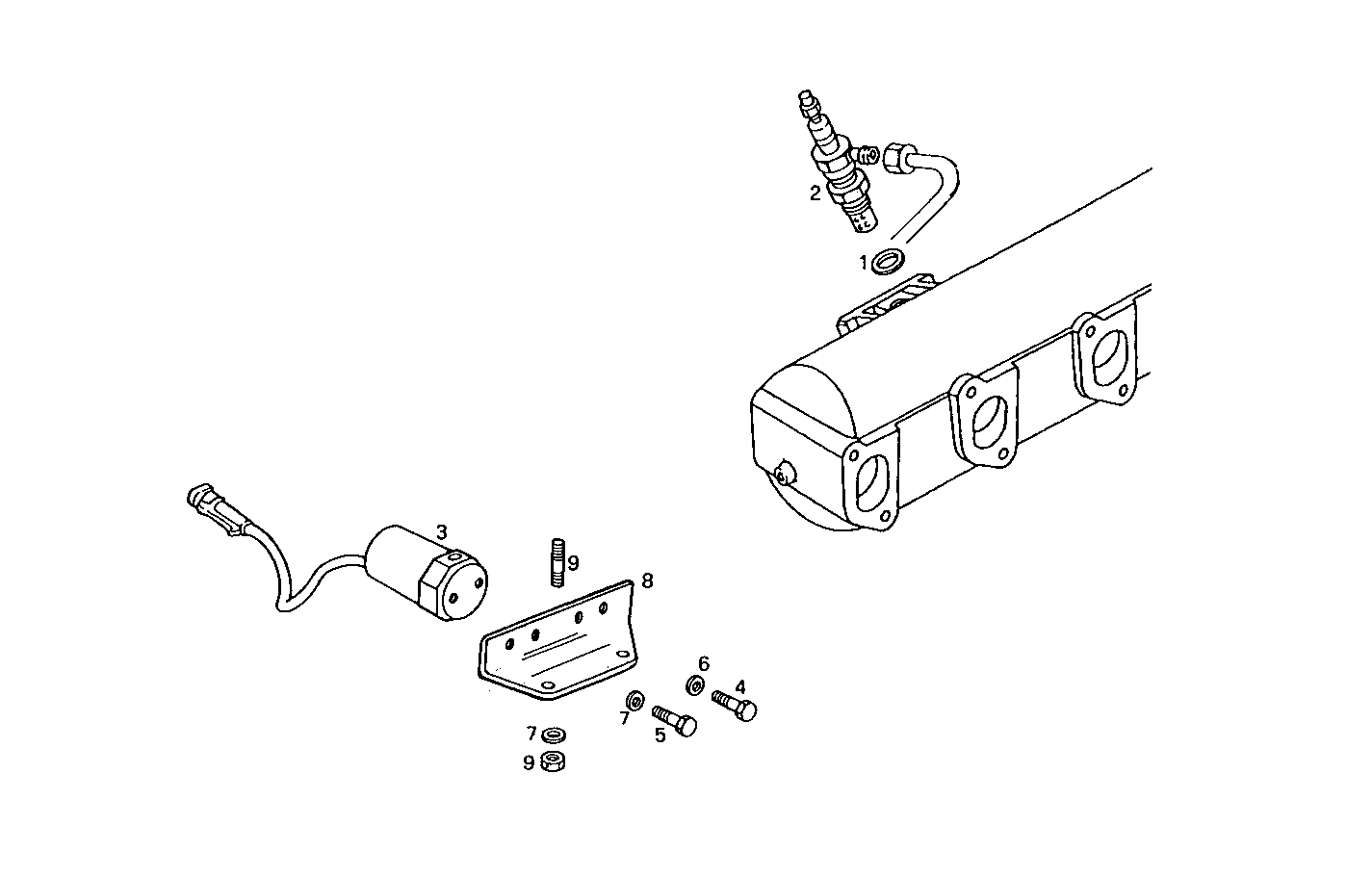

3650.028 THERMO-STARTER
Item | Part number | Description |
---|---|---|
1 | 98429280 | SEAL GASKET Ø20X26 MM SP=1,5 MM |
2 | 99450395 | THERMO-STARTER |
3 | 98494898 | ELECT.V.VE.PREHEAT |
4 | 16601924 | HEXAGON BOLT M5X10 MM |
5 | 16603424 | SCREW M6X10 |
6 | 12637801 | WASHER Ø5X10 MM |
7 | 17088474 | WASHER Ø6X12 MM |
8 | 98486849 | RETAINER |
9 | 17037821 | HEXAGON NUT M6X1 |
