8210SRE10.00

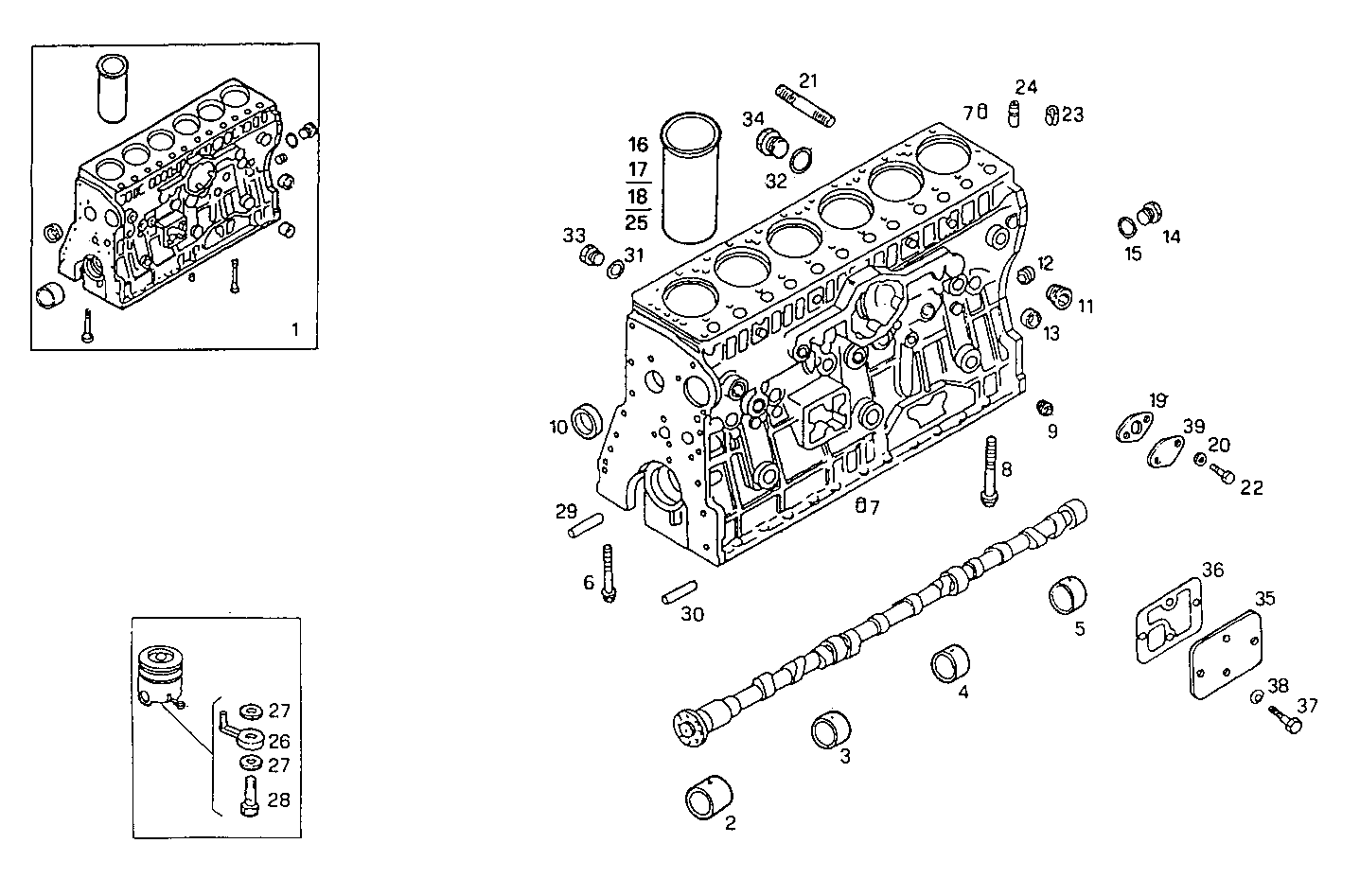

0400.128 CRANKCASE

Iveco/FPT CRANKCASE

Item Part number Description
1 99441808 CRANKCASE ASSY
2 4668570 CAMSHAFT BEARING
3 4668063 CAMSHAFT BEARING FRONT MIDDLE
4 4668064 CAMSHAFT BEARING MIDDLE REAR
5 4668571 CAMSHAFT BEARING
6 4827152 CRAHKSFT.BEAR.STUD M20
7 851425 DOWEL PIN
8 4769168 CRAHKSFT.BEAR.STUD M20
9 500367988 THREADED PLUG
10 14283370 LOCK PLUG Ø63 MM
11 99434268 THREADED PLUG M16X1,5
12 14325501 LOCK PLUG M28X1,5
13 16991170 LOCK PLUG Ø36 MM
14 16993511 LOCK PLUG M28X1,5
15 98458415 SEAL GASKET Ø28X36 MM SP=2 MM
16 4622074 CYLINDER LINER +0,0 MM
17 4679653 CYLINDER LINER +0,05 MM
18 4622379 CYLINDER LINER +0,25 MM
19 4863966 FLAT ENGINE GASKET
20 17090274 WASHER Ø10X20 MM
21 16729424 STUD M8X1,25X25
22 15970524 HEXAGON BOLT M10X1,25X20
23 4663640 DOWEL PIN
24 4502626 DOWEL PIN
25 99450067 CYLINDER LINER +0,5 MM
26 4833421 OIL NOZZLE
27 4700613 GASKET
28 4775503 SCREW CONNECTOR
29 10837810 DOWEL PIN Ø12 MM
30 4533969 DOWEL PIN
31 4858608 SEAL GASKET dia.14x19,5x1,5
32 10265460 SEAL GASKET Ø42X49 MM SP=1,5 MM
33 10300611 LOCK PLUG M14X1,5
34 4665029 LOCK PLUG M42X1,5
35 4638507 COVER
36 4863963 FLAT ENGINE GASKET
37 16605724 SCREW M8X1,25X30
38 17089474 SPRING WASHER Ø8X16 MM SP=1,4 MM
39 4785274 FLANGE
