8210SRE10.00

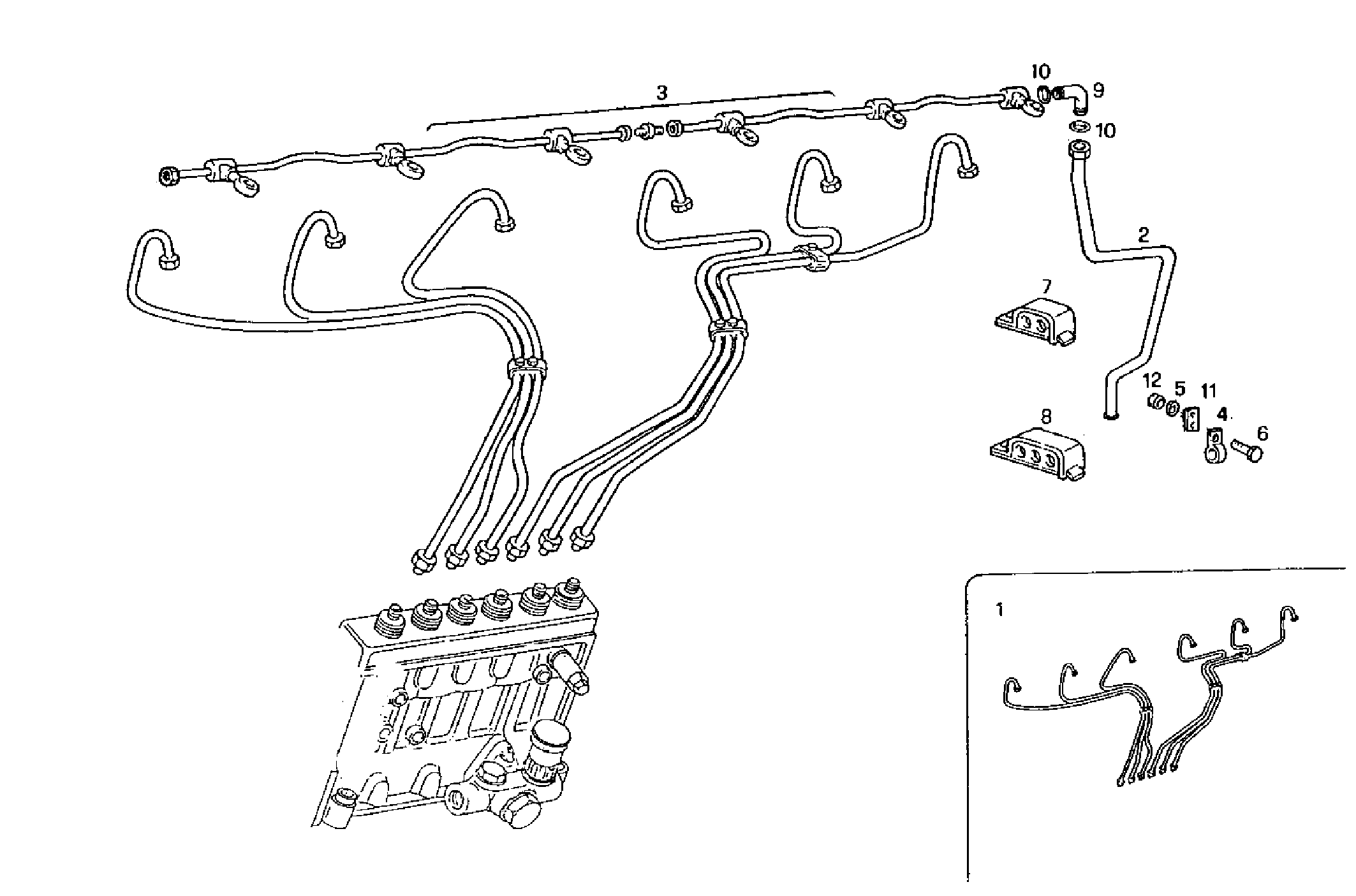

2020.117 INJECTION PIPES
| Item | Part number | Description |
|---|---|---|
| 1 | 98413215 | INJECTION LINE SET |
| 2 | 8006415 | FUEL LINE |
| 3 | 4863056 | FUEL LINE ASSY |
| 4 | 17316390 | CLIP |
| 5 | 17089474 | SPRING WASHER Ø8X16 MM SP=1,4 MM |
| 6 | 16605424 | SCREW M8X16 MM (8.8) |
| 7 | 4806611 | FASTENING BRACKET |
| 8 | 4806612 | FASTENING BRACKET |
| 9 | 16503011 | PIPE SOCKET |
| 10 | 8024645 | O-RING Ø4 MM |
| 11 | 8100819 | RETAINER |
| 12 | 17037931 | HEXAGON NUT M8X1,25 |
