8210SRE10.00

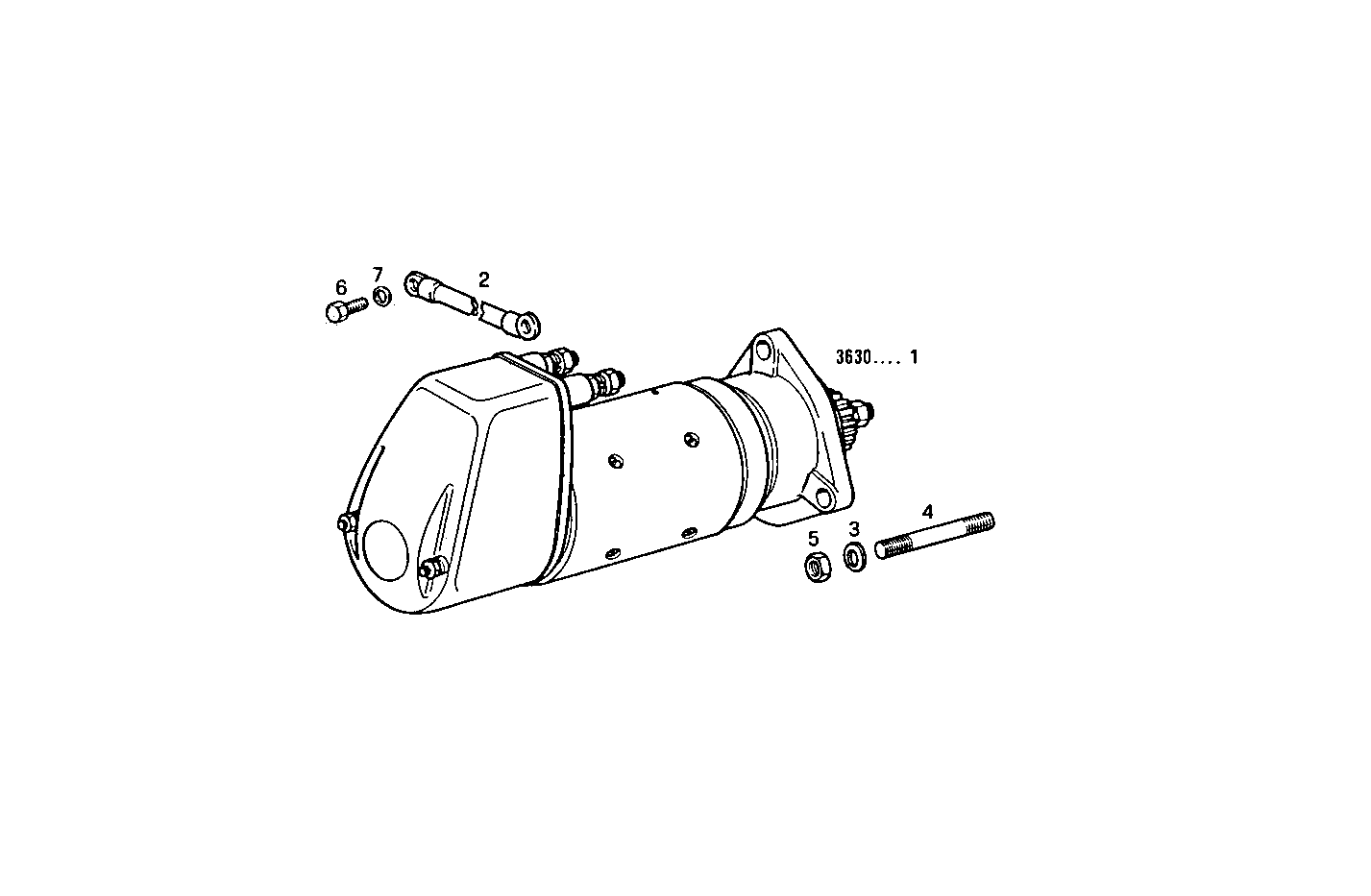

3600.020 STARTER MOTOR
Item | Part number | Description |
---|---|---|
1 | 4782803 | STARTER MOTOR ASSY BOSCH |
2 | 8109817 | EARTH WIRE |
3 | 17091674 | WASHER Ø14X27X3,0 MM |
4 | 11797421 | STUD M14X20X35 |
5 | 17157721 | NUT M14X1,5 |
6 | 16605524 | HEXAGON BOLT M8X20 MM |
7 | 17089474 | SPRING WASHER Ø8X16 MM SP=1,4 MM |
