8210SRE10.00

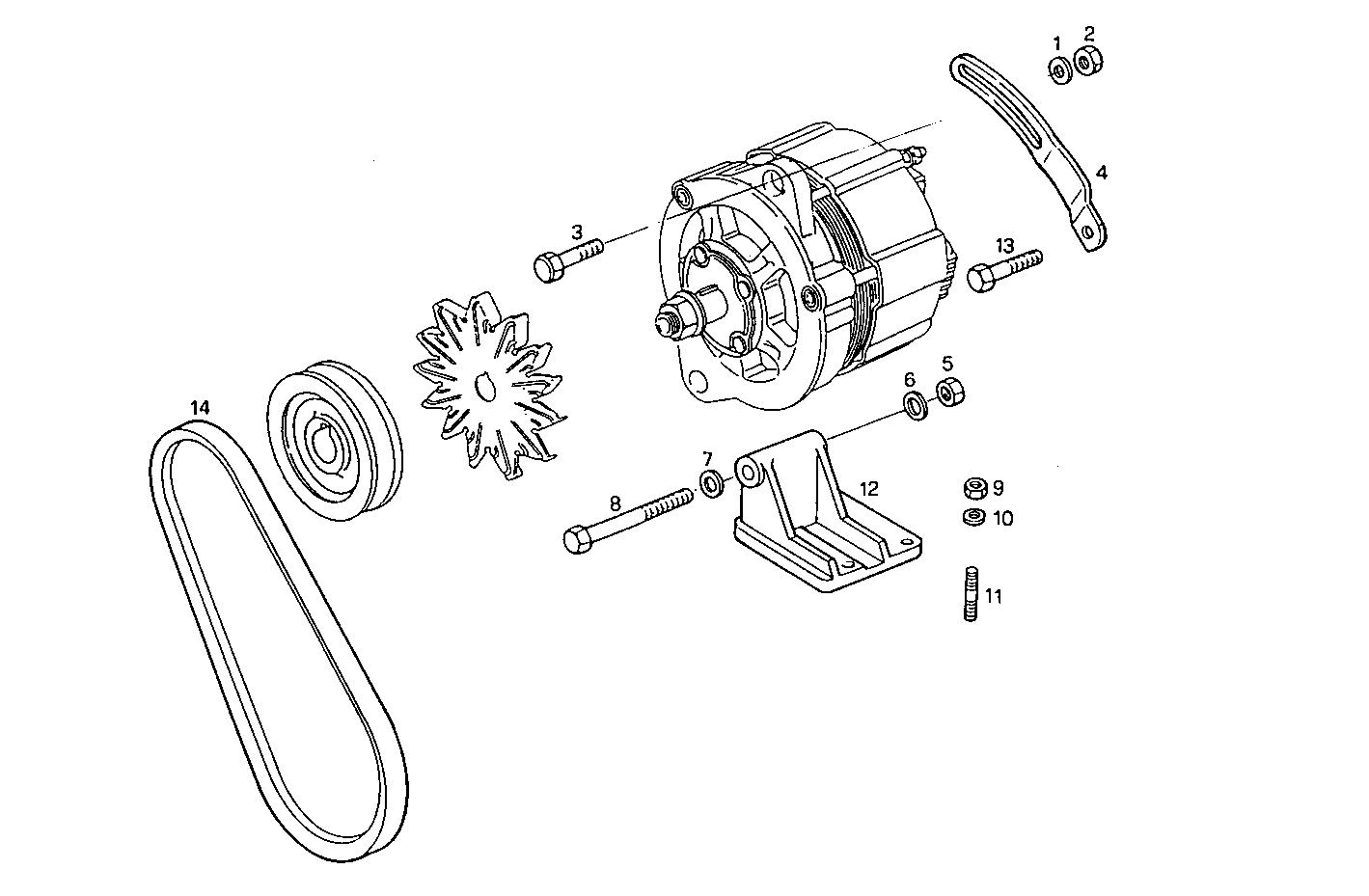

4010.102 MOUNT
Item | Part number | Description |
---|---|---|
1 | 4513436 | SUPPORT RING Ø10X21X2 MM |
2 | 17157221 | NUT M10X1,25 |
3 | 11307021 | HEXAGON BOLT M10X40 MM |
4 | 8028451 | BELT TENSIONER |
5 | 17157521 | NUT M12X1,25 |
6 | 17091074 | WASHER Ø12X24X2,8 MM |
7 | 12646921 | WASHER Ø12X28 MM |
8 | 15541821 | HEXAGON BOLT M12X1,25X120 MM [up to 565948] |
9 | 17038221 | HEXAGON NUT M10 |
10 | 17090474 | SPRING WASHER Ø10X27 MM SP=2,5 |
11 | 13449521 | STUD M10X15X25 |
12 | 4838279 | GENERATOR SUPPORT |
13 | 11343721 | HEXAGON BOLT M10X65 MM |
14 | 4829322 | V-BELT L=1800 MM |
