8210SRE10.00

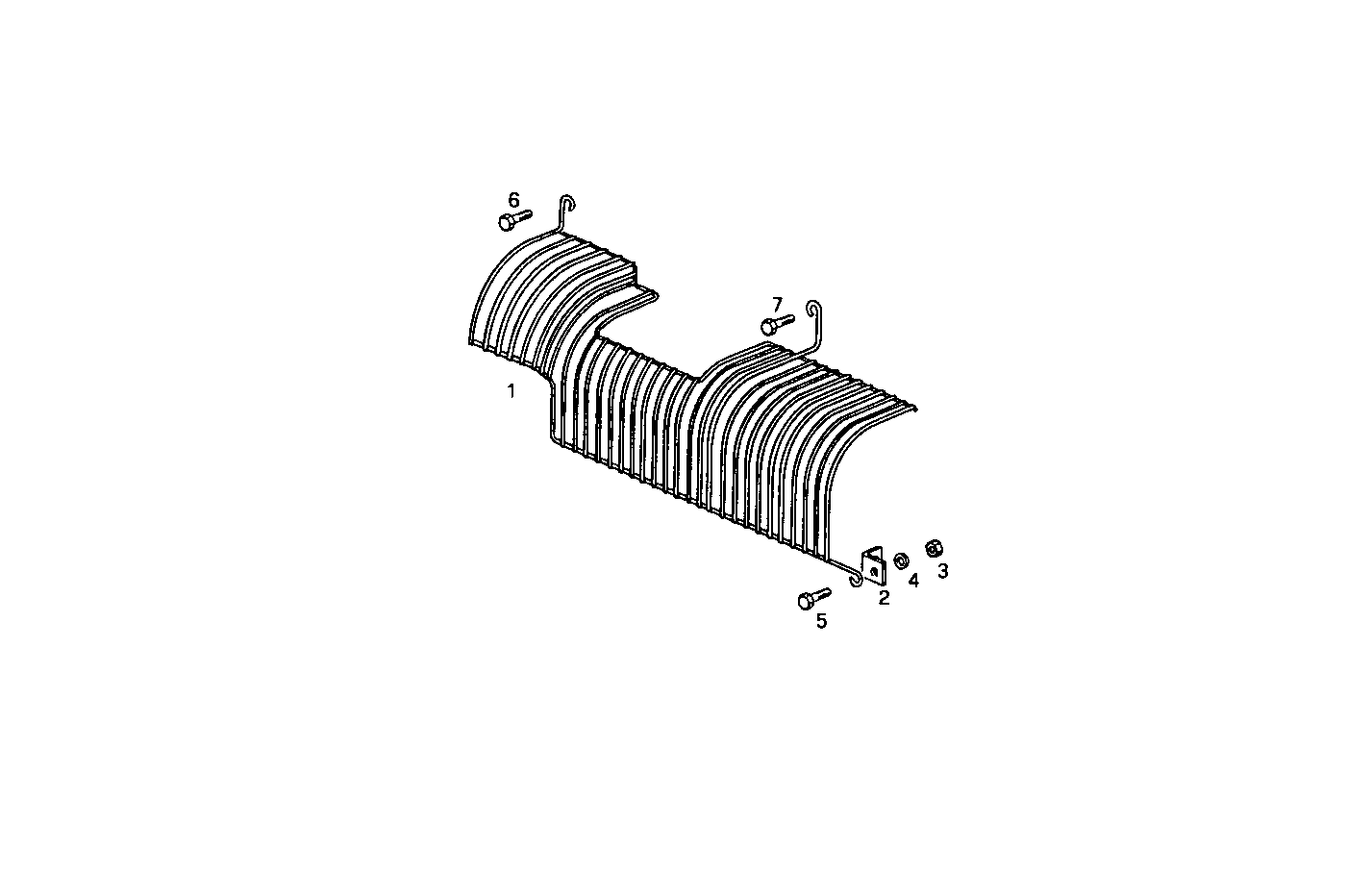

5770.014 SHIELDS
Item | Part number | Description |
---|---|---|
1 | 8111657 | PROTECTION |
2 | 8100819 | RETAINER |
3 | 17037931 | HEXAGON NUT M8X1,25 |
4 | 17089774 | SPRING WASHER Ø8,4X22 MM SP=2,4 MM |
5 | 16605524 | HEXAGON BOLT M8X20 MM |
6 | 16605924 | SCREW M8X40 MM |
7 | 16606124 | HEXAGON BOLT M8X50 MM |
