8210SRE10.00

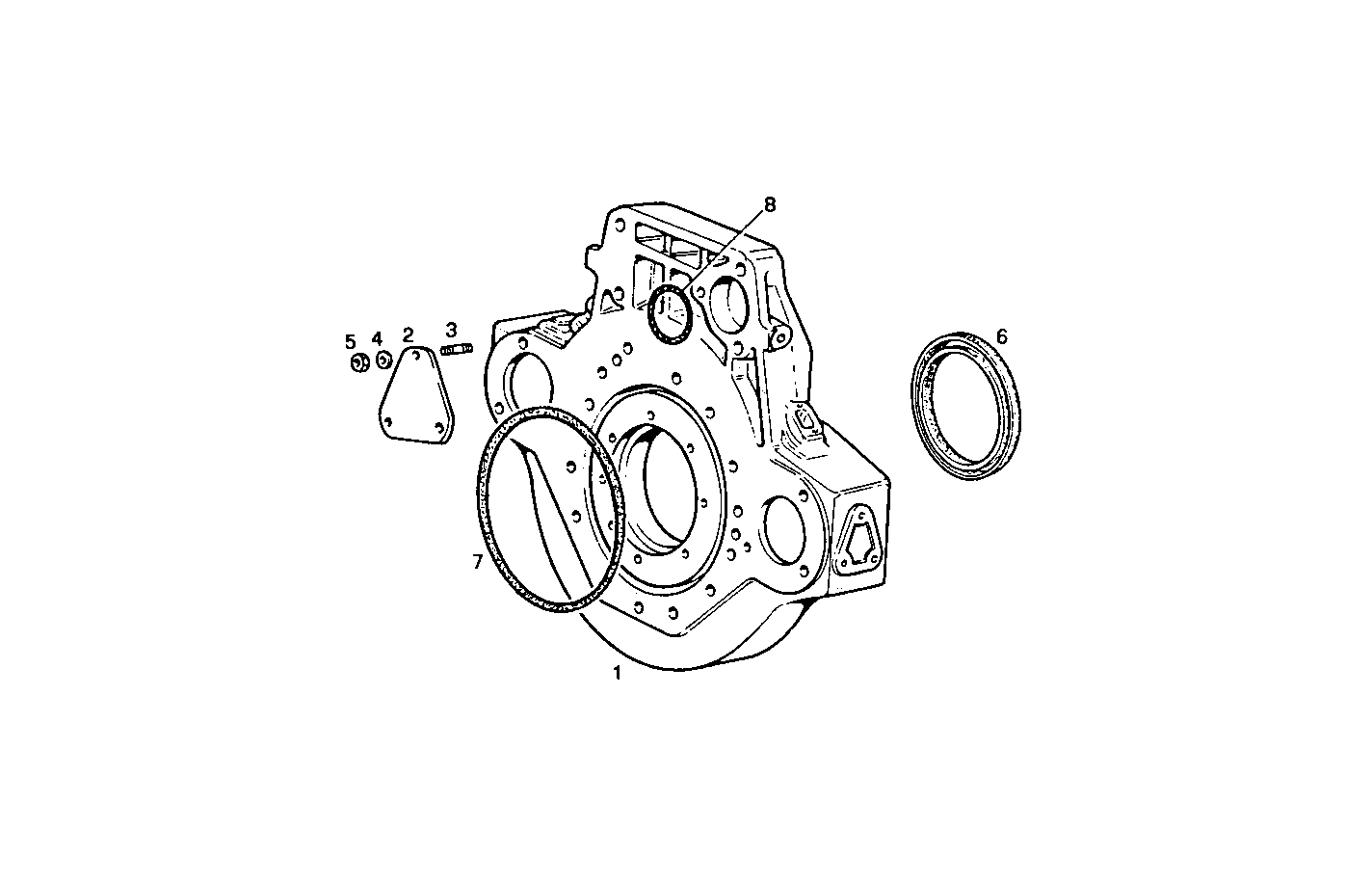

A03060002 FLYWHEEL HOUSING SAE 1 - with 2 starter motor seat
| Item | Part number | Description |
|---|---|---|
| 1 | 4929880 | FLYWHEEL HOUSING |
| 2 | 4721732 | COVER |
| 3 | 11797421 | STUD M14X20X35 |
| 4 | 11194171 | SPRING WASHER Ø15 MM |
| 5 | 12164011 | HEXAGON NUT M14X1,5 [up to…] |
| 6 | 98467213 | WASHER |
| 7 | 98464798 | O-RING Ø247 MM SP=6,98 MM |
| 8 | 98464890 | O-RING Ø74,6 MM SP=3,53 MM |
