| Item |
Part number |
Description |
|
1 |
99440226 |

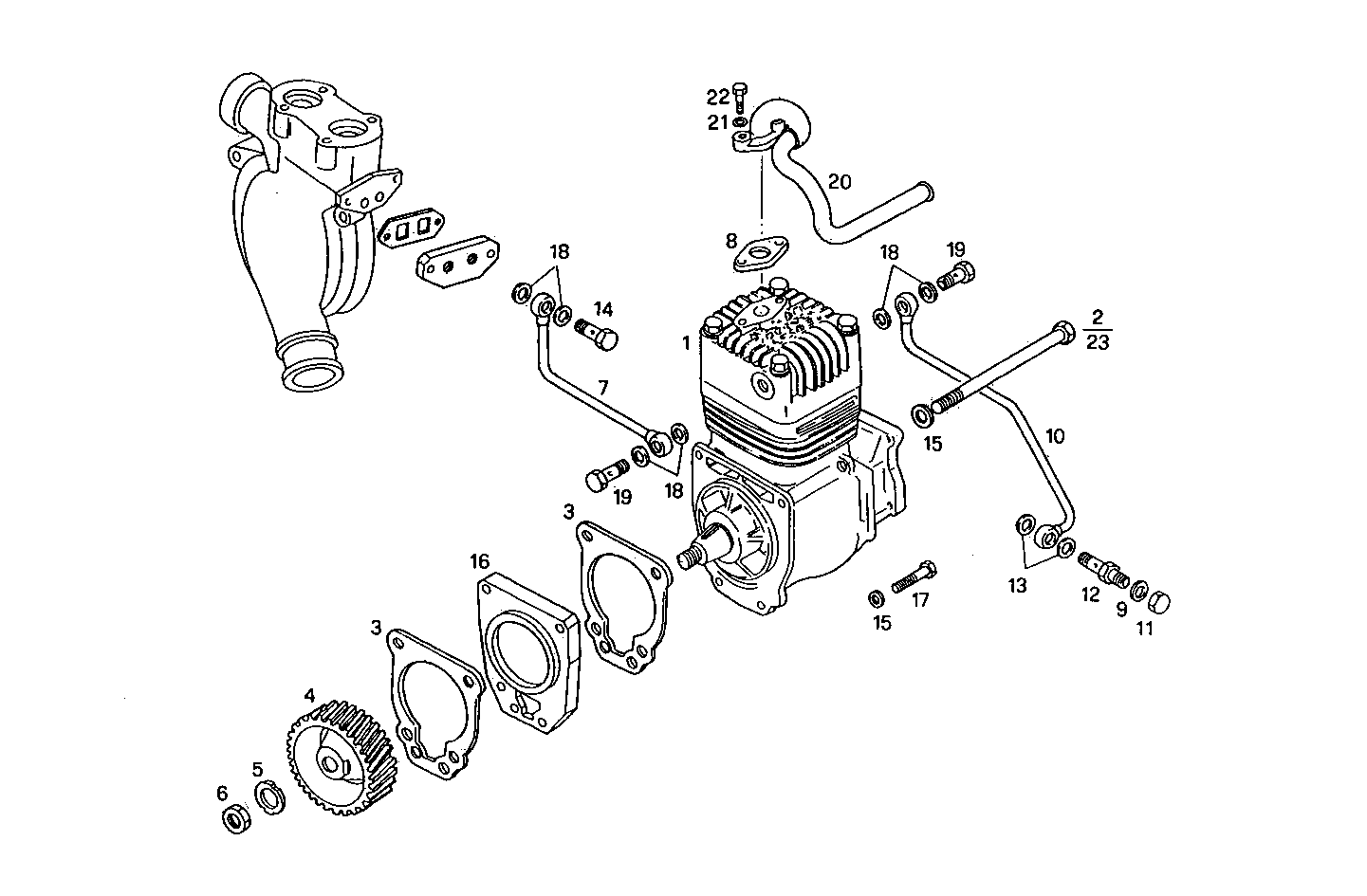

AIR COMPRESSOR ASSY BENDIX |
|
2 |
15972621 |
HEXAGON BOLT M10X1,25X140 MM |
|
3 |
4864032 |
FLAT ENGINE GASKET |
|
4 |
98424645 |
COMP. DRIVE GEAR [up to 457050] |
|
5 |
4709364 |
LOCKING PLATE |
|
6 |
99471892 |
HEXAGON NUT |
|
7 |
99452316 |
WATER PIPE |
|
8 |
4863948 |
FLAT ENGINE GASKET |
|
9 |
4858607 |
WASHER Ø12X17 MM SP=1,5 MM |
|
10 |
99436231 |
WATER PIPE ASSY |
|
11 |
16992211 |
THREADED PLUG M12X1,5 |
|
12 |
98443961 |
PIPE SOCKET |
|
13 |
98474306 |
WASHER Ø12X20 MM SP=1,9 MM |
|
14 |
98495066 |
THREADED UNION M16X1,5 - M22X1,5 |
|
15 |
17090274 |
WASHER Ø10X20 MM |
|
16 |
98424166 |
SPACING BAR |
|
17 |
14308221 |
SCREW |
|
18 |
98474309 |
WASHER Ø16X24 MM SP=1,9 MM |
|
19 |
4864084 |
BANJO BOLT M16X1,5 |
|
20 |
98438667 |
SUCTION LINE |
|
21 |
17094914 |
WASHER 8x16 |
|
22 |
16605524 |
HEXAGON BOLT M8X20 MM |
|
23 |
98434832 |
HEXAGON BOLT M10X1,25X122 MM |
