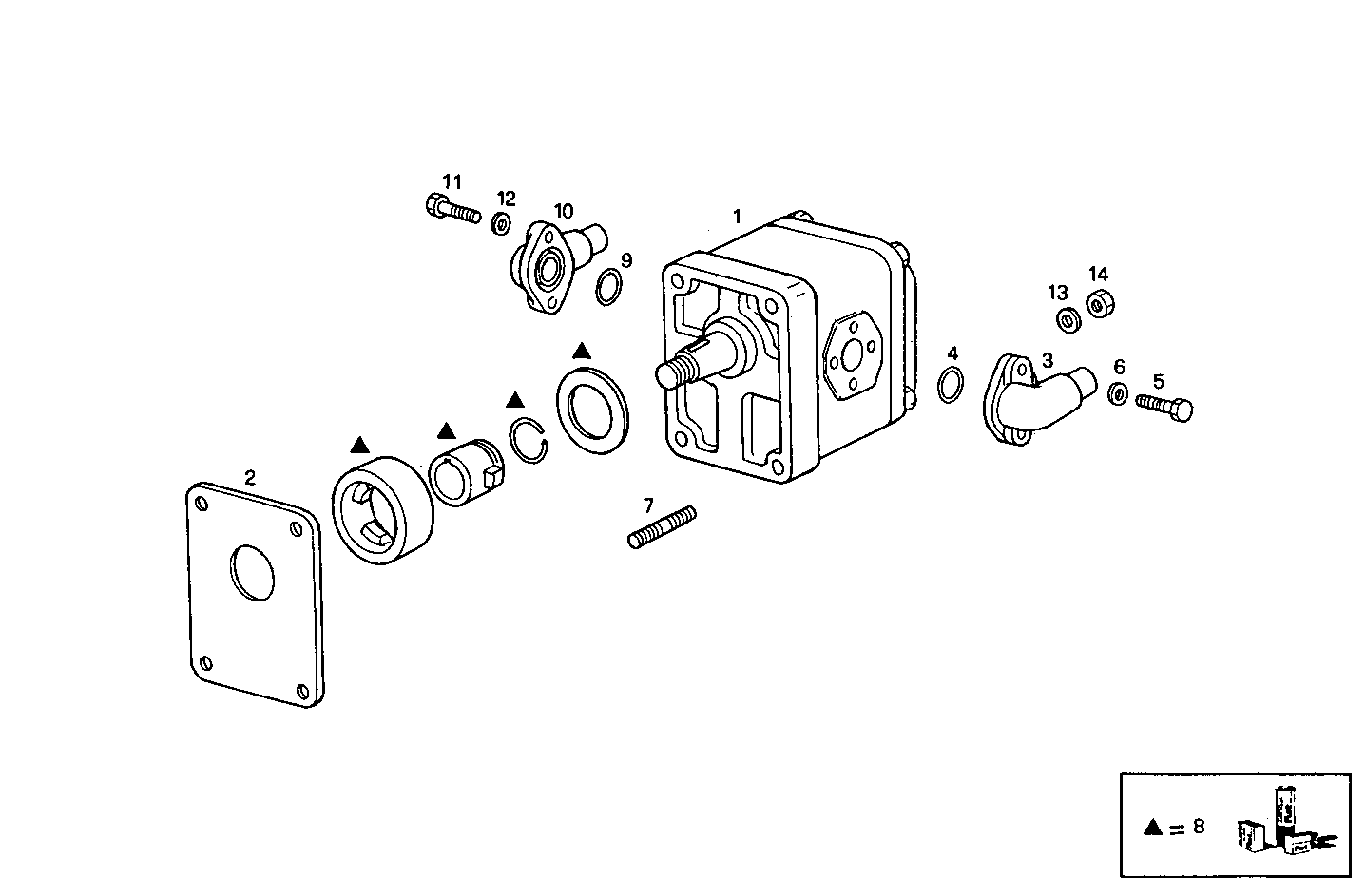

A18050018/02 AIR COMPRESSOR - with hydraulic pump - PLESSEY 25 - 250cc
| Item | Part number | Description |
|---|---|---|
| 1 | 5129478 | OIL PUMP-STEERING ASSY |
| 2 | 4850986 | FLAT ENGINE GASKET |
| 3 | 4670953 | PIPE SOCKET |
| 4 | 4503785 | WASHER |
| 5 | 14305521 | SCREW M6X30 |
| 6 | 11197779 | SPRING WASHER Ø6X12 MM |
| 7 | 10980821 | STUD M6X15X30 MM |
| 8 | 8090343 | KIT-HYDRAULIC PUMP |
| 9 | 17281781 | O-RING Ø15,5 MM SP=2,6 MM |
| 10 | 4690715 | PIPE SOCKET |
| 11 | 14306621 | SCREW M8X35 |
| 12 | 11198079 | SPRING WASHER Ø8,2 MM |
| 14 | 15896211 | HEXAGON NUT M6 |
