8210SRE10.00

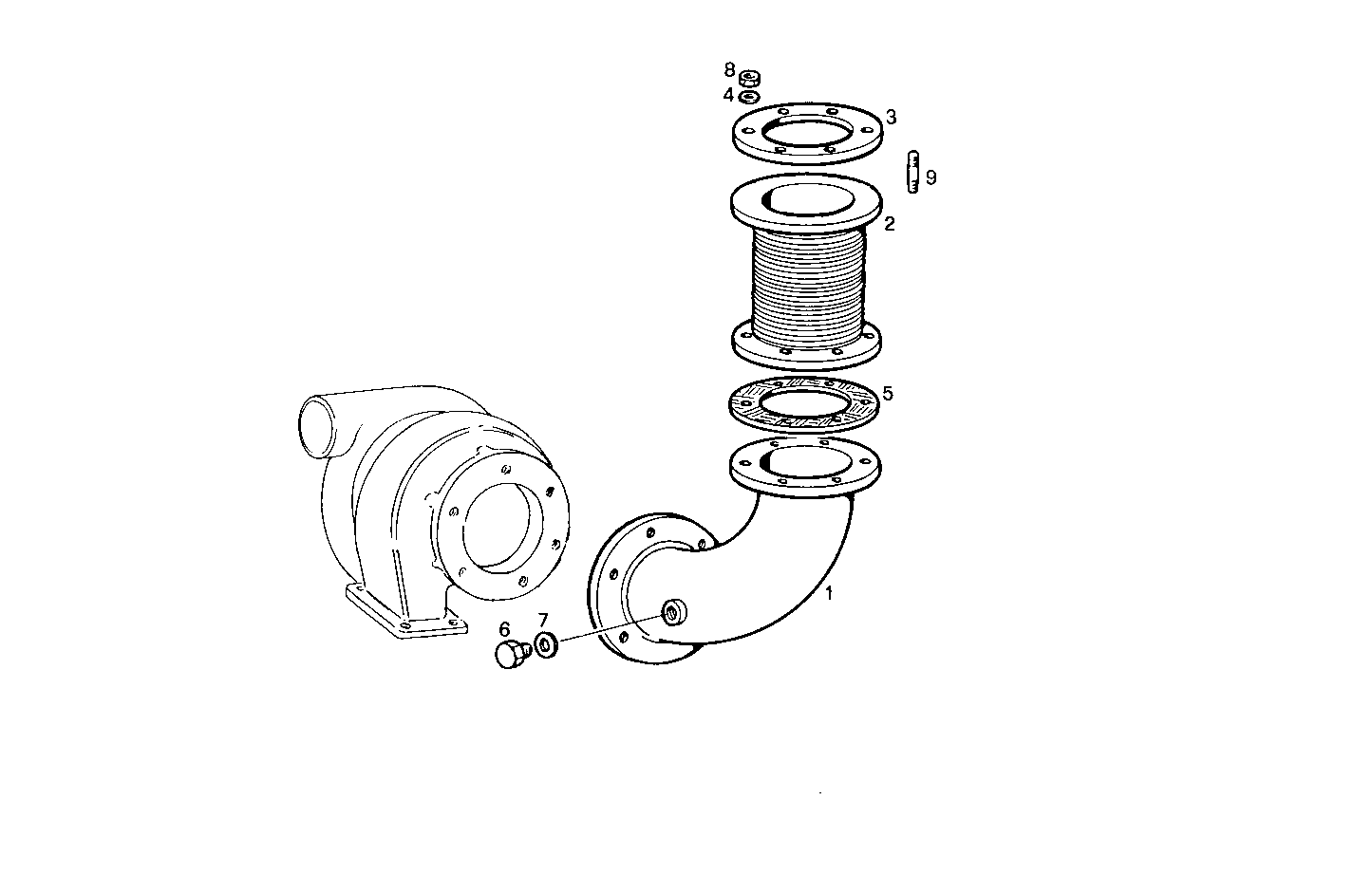

A40010008 TURNING EXHAUST ELBOW WITH BELLOWS
Item | Part number | Description |
---|---|---|
1 | 8104510 | EXHAUST ELBOW |
2 | 8101671 | EXHAUST BELLOWS |
3 | 8103591 | FLANGE |
4 | 17090174 | SPRING WASHER Ø10X20 MM |
5 | 8009600 | GASKET |
6 | 10300511 | LOCK PLUG M12X1,5 |
7 | 4858607 | WASHER Ø12X17 MM SP=1,5 MM |
8 | 17038221 | HEXAGON NUT M10 |
9 | 13449524 | STUD M10X1,25X15X25 |
