8210SRE10.00

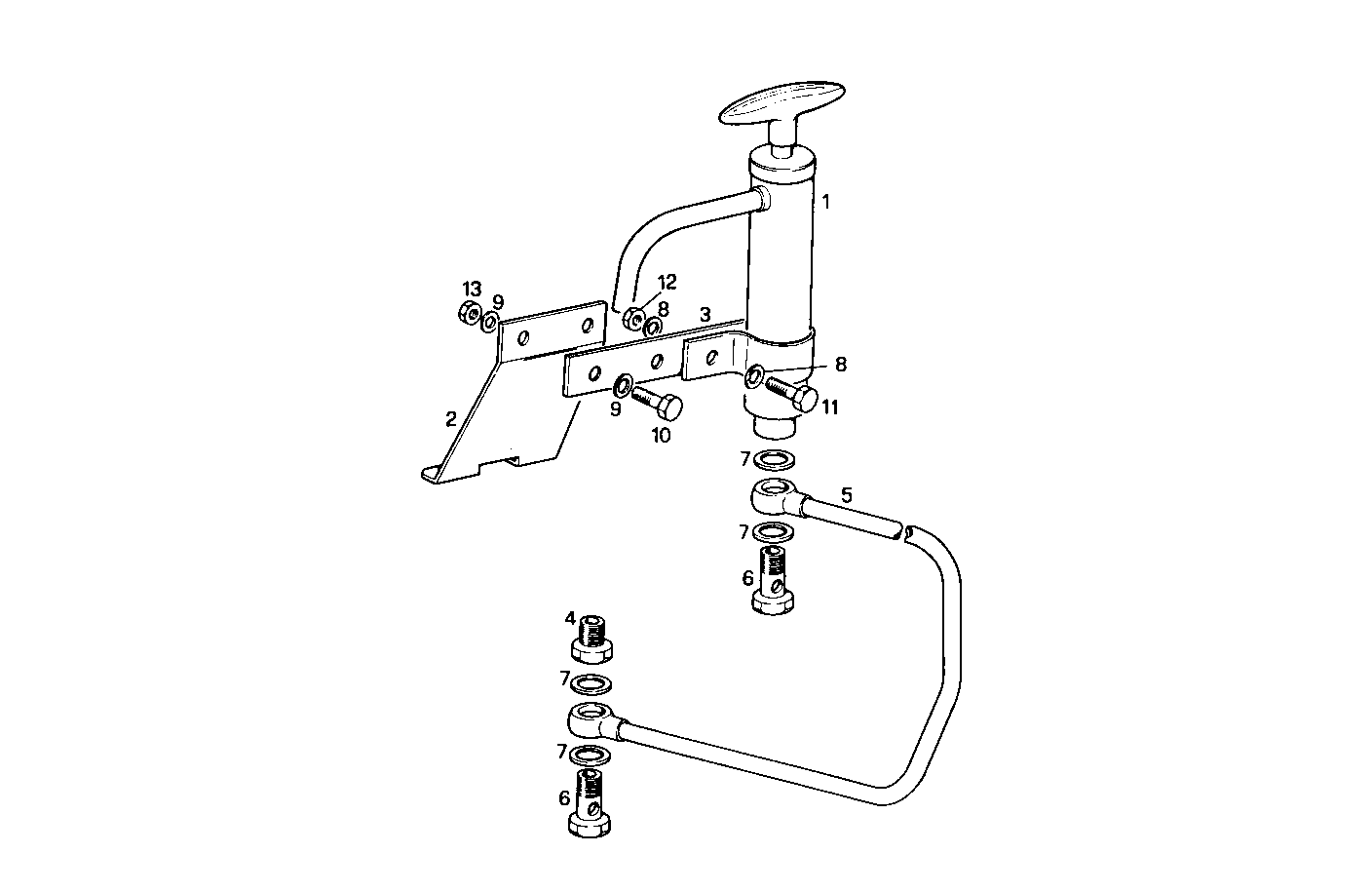

A49010024 OIL DRAIN PUMP
| Item | Part number | Description |
|---|---|---|
| 1 | 8019921 | HAND PUMP |
| 2 | 8011586 | RETAINER |
| 3 | 4919581 | CLIP |
| 4 | 4927625 | PIPE SOCKET |
| 5 | 8011577 | OIL LINE |
| 6 | 4864084 | BANJO BOLT M16X1,5 |
| 7 | 4858609 | WASHER Ø16X22 MM SP=1,5 MM |
| 8 | 17089774 | SPRING WASHER Ø8,4X22 MM SP=2,4 MM |
| 9 | 17090474 | SPRING WASHER Ø10X27 MM SP=2,5 |
| 10 | 16607624 | SCREW M10X25 |
| 11 | 16605424 | SCREW M8X16 MM (8.8) |
| 12 | 17037931 | HEXAGON NUT M8X1,25 |
| 13 | 17038121 | HEXAGON NUT M10 |
