8210SRE10.00

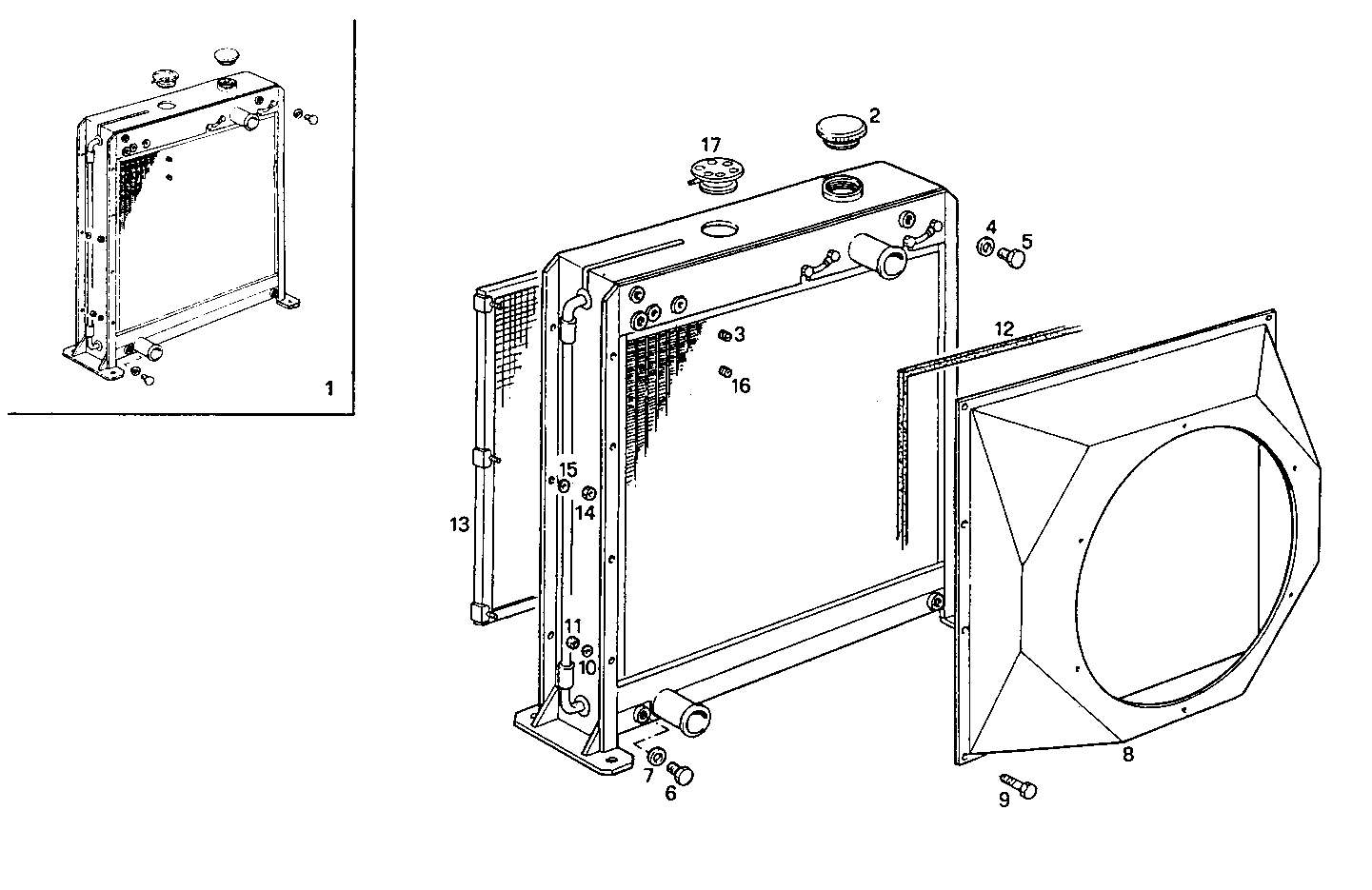

T2241004 RADIATOR - (components)

Iveco/FPT RADIATOR

Item Part number Description
1 8021828 WATER RADIATOR ASSY
2 8025146 PLUG
2 8017558 RADIATOR PLUG
3 8113913 PLUG
4 11270460 GASKET Ø17X21X1,5 MM
5 8105096 PLUG
6 16992311 LOCK PLUG M14X1,5
7 4858608 SEAL GASKET dia.14x19,5x1,5
8 8019658 AIR HOOD
9 16605524 HEXAGON BOLT M8X20 MM
10 17089474 SPRING WASHER Ø8X16 MM SP=1,4 MM
11 17037931 HEXAGON NUT M8X1,25
12 8089128 GASKET L=2100 MM
13 8032347 PROTECTION
14 17037921 HEXAGON NUT M8X1,25
15 17089774 SPRING WASHER Ø8,4X22 MM SP=2,4 MM
16 8113914 PLUG
17 8032345 RADIATOR PLUG
