8210SRE20.00

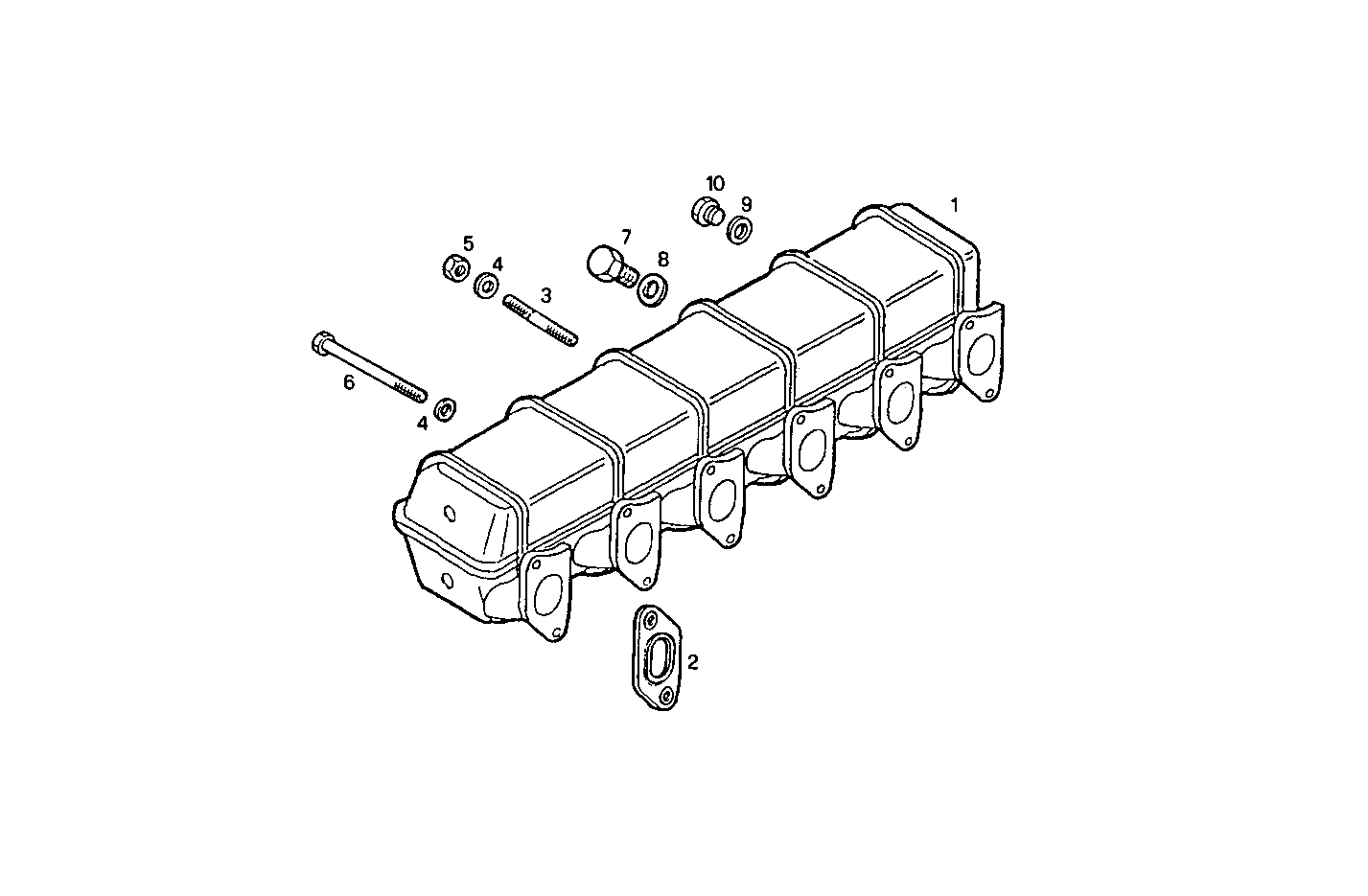

0710.069 INTAKE MANIFOLD
| Item | Part number | Description |
|---|---|---|
| 1 | 8019199 | INTAKE ELBOW |
| 2 | 99440847 | INTAKE ELBOW GASK. |
| 3 | 13449921 | STUD M10X15X40 |
| 4 | 17095114 | WASHER Ø10X21 MM |
| 5 | 17038221 | HEXAGON NUT M10 |
| 6 | 15972821 | HEXAGON BOLT M10X150 MM |
| 7 | 4595833 | THREADED PLUG M20X1,5 |
| 8 | 98429280 | SEAL GASKET Ø20X26 MM SP=1,5 MM |
| 9 | 4858607 | WASHER Ø12X17 MM SP=1,5 MM |
| 10 | 16992211 | THREADED PLUG M12X1,5 |
