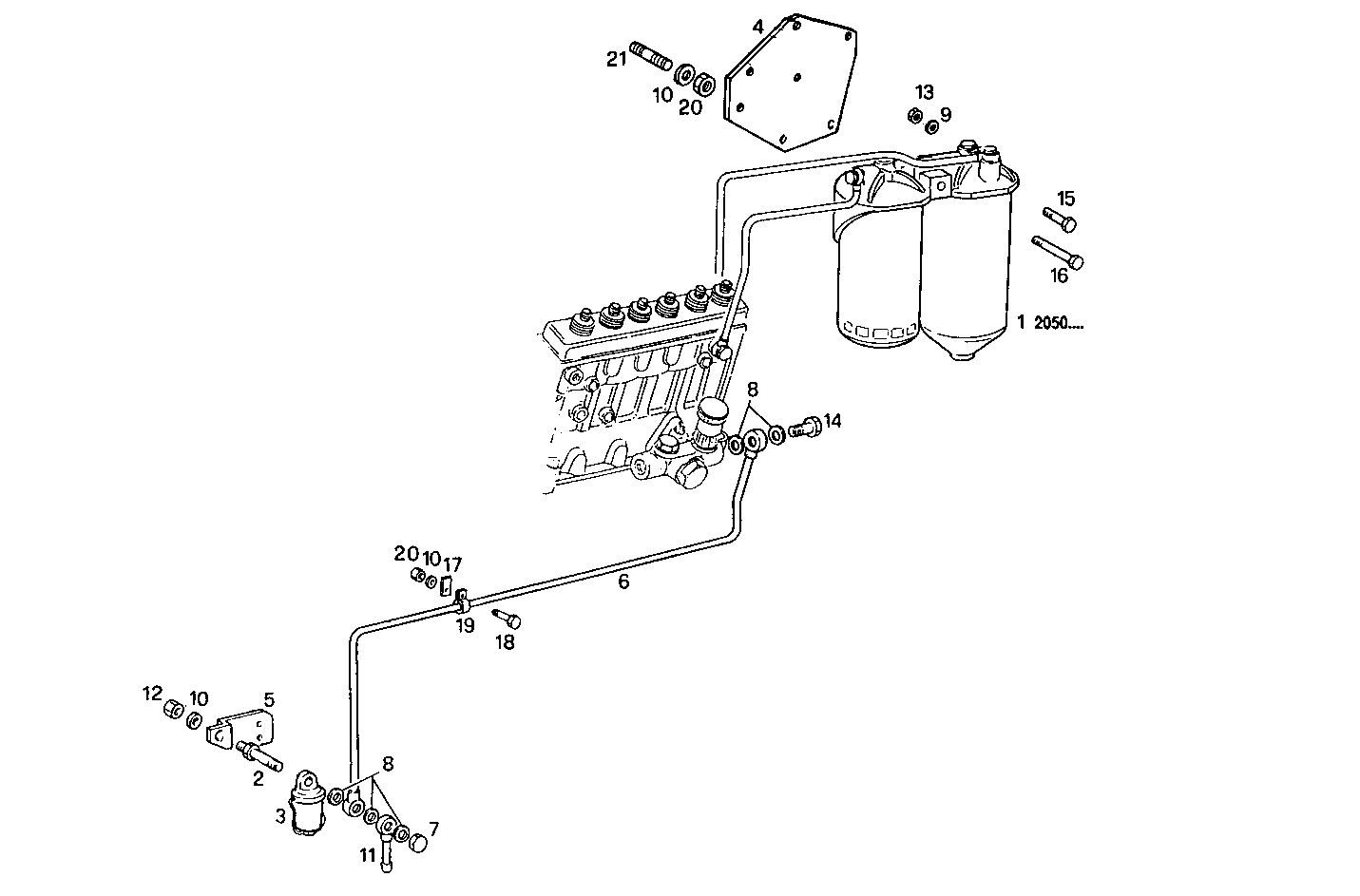

2000.098 FUEL FILTER

Iveco/FPT FUEL FILTER

Item Part number Description
1 4690738 FUEL FILTER ASSY
2 4623038 PIPE SOCKET
3 4797318 FUEL FILTER CORONA
4 8012750 OIL FILTER SUPPORT
5 8105252 RETAINER
6 8012821 FUEL LINE
7 10182817 LOCK PLUG
8 98474308 SEAL GASKET Ø14X22 MM
9 17090174 SPRING WASHER Ø10X20 MM
10 17089474 SPRING WASHER Ø8X16 MM SP=1,4 MM
11 98404882 PIPE SOCKET Ø8 MM
12 17038221 HEXAGON NUT M10
13 17038121 HEXAGON NUT M10
14 4864083 SCREW CONNECTOR M14X1,5X30 MM
15 16609224 HEXAGON BOLT M10X140 MM
16 16607724 HEXAGON BOLT M10X1,5X30 MM (8.8)
17 8102995 RETAINER
18 16043124 SCREW M8X14 MM
19 17316490 CLIP
20 17037931 HEXAGON NUT M8X1,25
21 16729324 STUD M8X12X20 MM
