8210SRE20.00

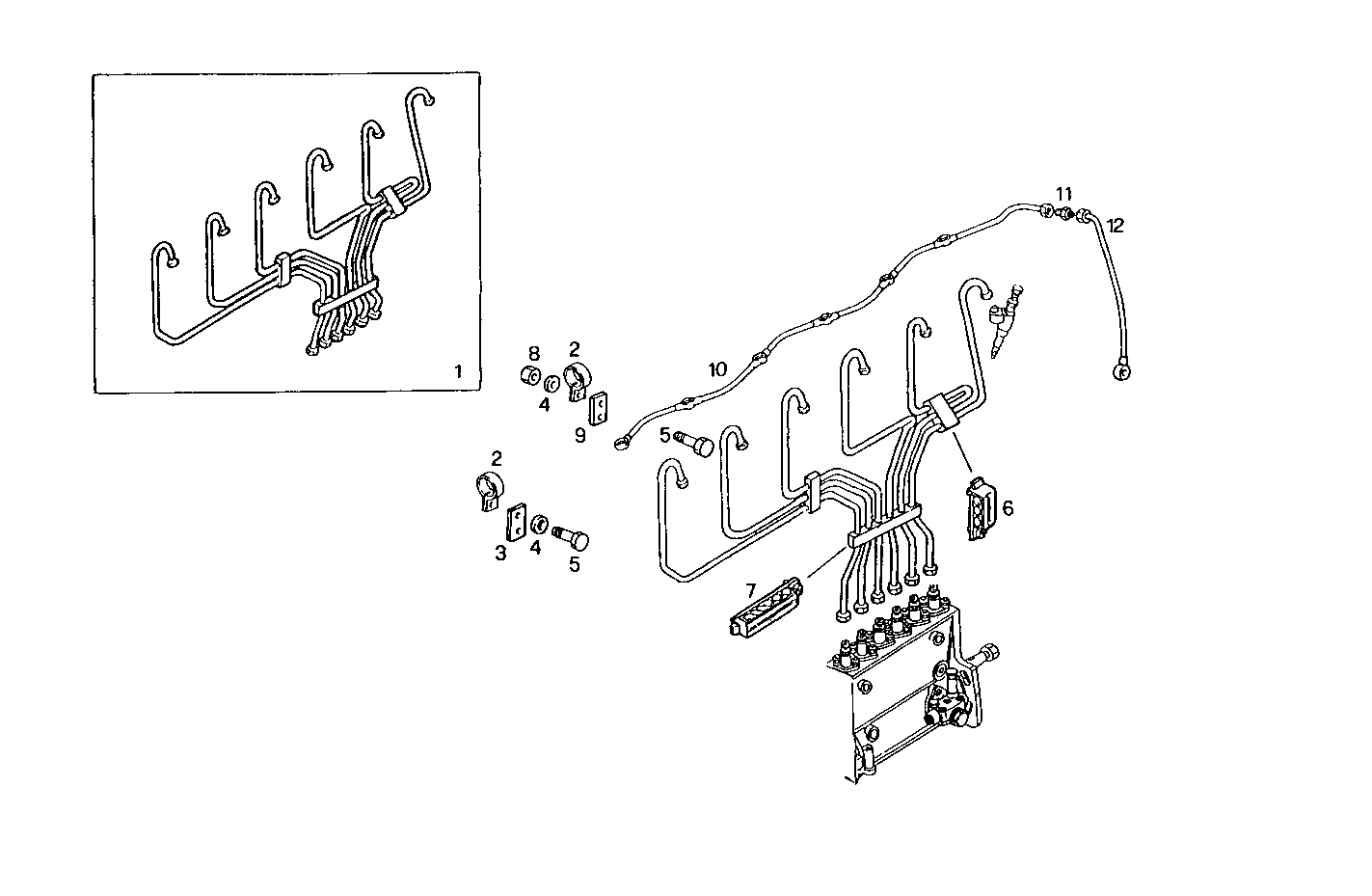

2020.118 INJECTION PIPES
| Item | Part number | Description |
|---|---|---|
| 1 | 98425916 | INJECTION LINE SET ASSY GUIDO |
| 2 | 17316190 | PIPE CLIP Ø6 MM |
| 3 | 4929652 | RETAINER |
| 4 | 17088474 | WASHER Ø6X12 MM |
| 5 | 16603524 | SCREW M6X12 MM (8.8) |
| 6 | 99434292 | FASTENING BRACKET BUNDY |
| 7 | 99434293 | FASTENING BRACKET BUNDY |
| 8 | 17037821 | HEXAGON NUT M6X1 |
| 9 | 8102227 | RETAINER |
| 10 | 98435435 | FUEL LINE |
| 11 | 16501511 | SCREW CONNECTOR M12X1,5 |
| 12 | 8015689 | FUEL LINE |
