8210SRE20.00

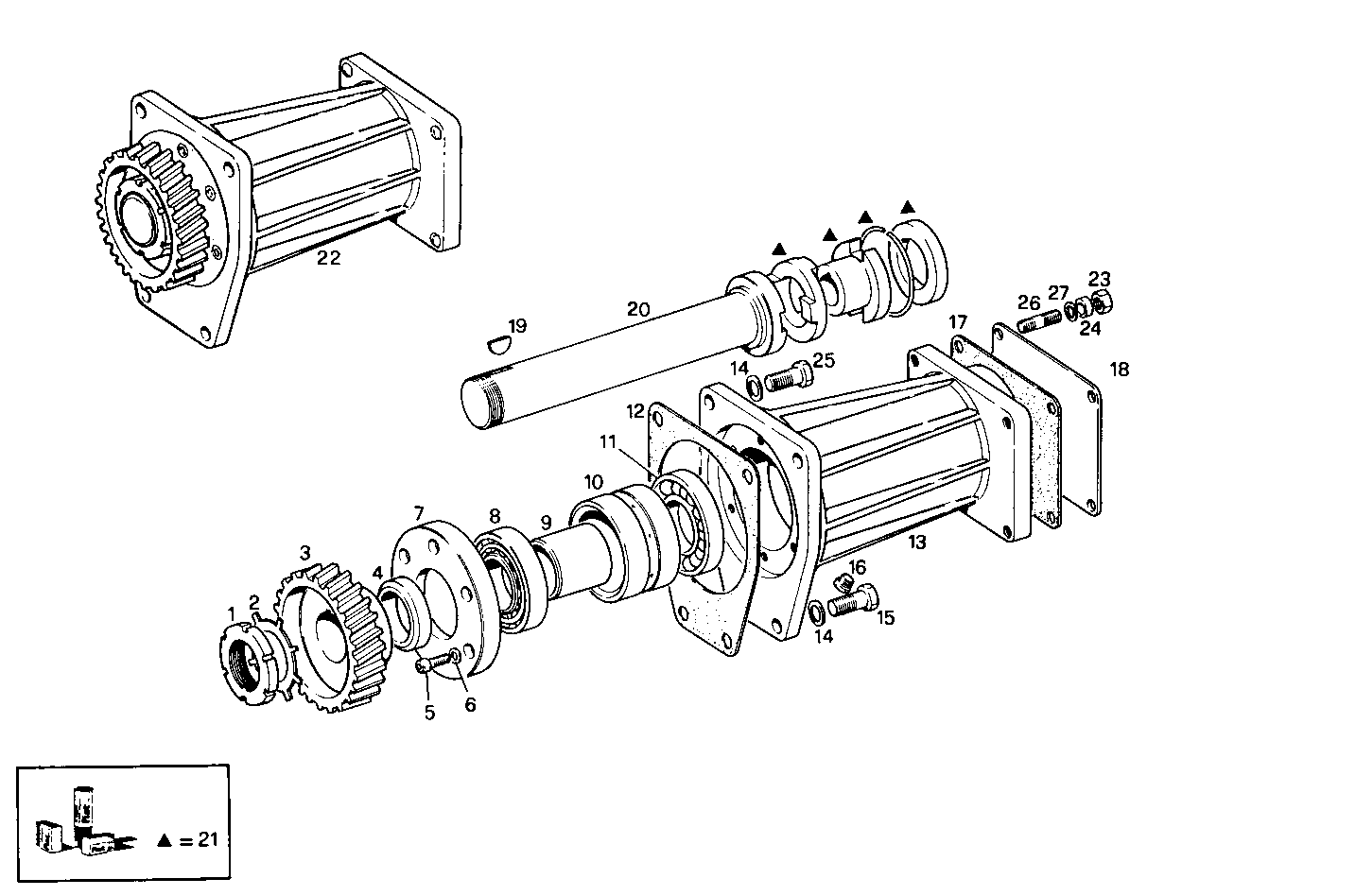

A09080020 ARRANGED FOR HYDRAULIC PUMP - left front

Iveco/FPT ARRANGED FOR HYDRAULIC PUMP

Item Part number Description
1 10214110 GROOVED NUT
2 4513025 LOCKING PLATE
3 8023068 GEAR
4 8023069 SPACING BAR
5 14305321 CYLIND-HEAD SCREW M6X20 MM
6 17088474 WASHER Ø6X12 MM
7 61586412 COVER
8 26798470 DRIVE BEARING
9 61586410 SPACING BAR
10 61586411 SPACING BAR
11 20705250 DRIVE BEARING
12 4864032 FLAT ENGINE GASKET
13 8007094 SUPPORT
14 17090174 SPRING WASHER Ø10X20 MM
15 11307021 HEXAGON BOLT M10X40 MM
16 61584412 LOCK PLUG
17 4863974 FLAT ENGINE GASKET
18 61585907 COVER
19 17221220 KEY 5X9 MM
20 61586409 SHAFT
21 8090978 KIT-HYDRAULIC PUMP
22 8023084 SUPPORT ASSY
23 17037931 HEXAGON NUT M8X1,25
24 13605811 SPACER SP=1,5 MM
25 11227921 HEXAGON BOLT M10X28 MM
26 17364824 STUD M6X30 MM
27 11193879 SPRING WASHER Ø8X16 MM
