8210SRE20.00

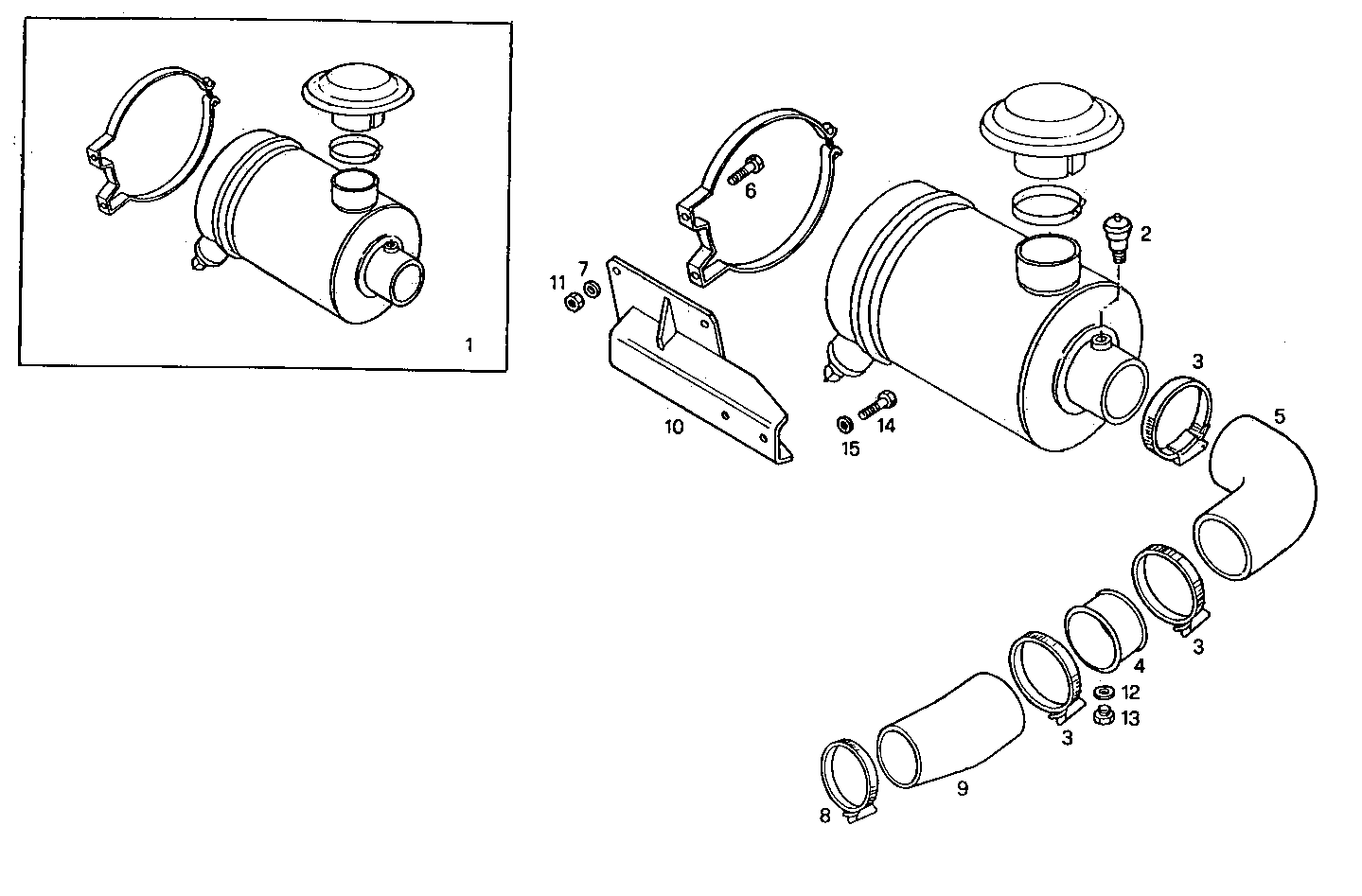

A21210079 DRY AIR CLEANER - with mechanical clogging gauge
| Item | Part number | Description |
|---|---|---|
| 1 | 8016915 | AIR CLEANER ASSY |
| 2 | 8027294 | CHOCKED FILTER INDIC. MECHANICAL |
| 3 | 17766091 | CLIP Ø160/180 MM |
| 4 | 8018638 | AIR MANIFOLD |
| 5 | 8018096 | FILTER HOSE |
| 6 | 16609924 | HEXAGON BOLT M12X30 MM (8.8) |
| 7 | 17091074 | WASHER Ø12X24X2,8 MM |
| 8 | 17765491 | CLIP Ø70/90 MM |
| 9 | 8029556 | FILTER HOSE |
| 10 | 8018639 | SUPPORT |
| 11 | 17038421 | HEXAGON NUT M12 (8) |
| 12 | 4858606 | GASKET Ø10X14X1 MM |
| 13 | 11903111 | LOCK PLUG M10X1,25 |
| 14 | 11391531 | SCREW |
| 15 | 98416514 | WASHER |
