8210SRE21.00

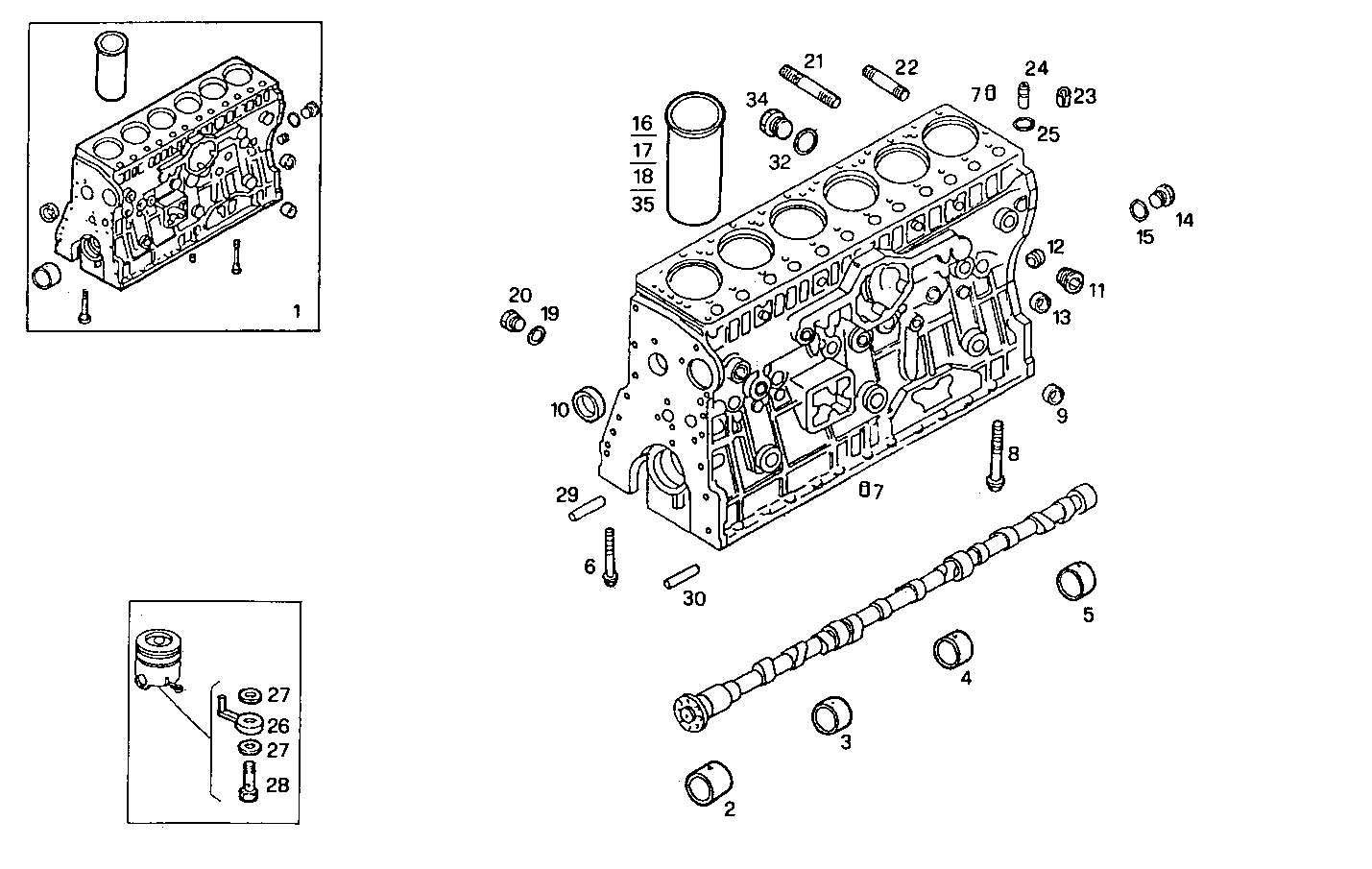

0400.062 CRANKCASE

Iveco/FPT CRANKCASE

Item Part number Description
1 99467249 CRANKCASE ASSY
2 4668570 CAMSHAFT BEARING
3 4668063 CAMSHAFT BEARING FRONT MIDDLE
4 4668064 CAMSHAFT BEARING MIDDLE REAR
5 4573049 CAMSHAFT BEARING
6 4827152 CRAHKSFT.BEAR.STUD M20
7 851425 DOWEL PIN
8 4769168 CRAHKSFT.BEAR.STUD M20
9 14326150 LOCK PLUG
10 14283370 LOCK PLUG Ø63 MM
11 16997411 THREADED PLUG M16X1,5
12 14325501 LOCK PLUG M28X1,5
13 16991170 LOCK PLUG Ø36 MM
14 16993511 LOCK PLUG M28X1,5
15 98458415 SEAL GASKET Ø28X36 MM SP=2 MM
16 99467115 CYLINDER LINER +0,0 MM
17 99469069 CYLINDER LINER +0,25 MM
18 99469070 CYLINDER LINER +0,05 MM
19 4858607 WASHER Ø12X17 MM SP=1,5 MM
20 16992211 THREADED PLUG M12X1,5
21 16729324 STUD M8X12X20 MM
22 11797124 STUD M14X20X25
23 4663640 DOWEL PIN
24 99432168 DOWEL PIN Ø50 MM
25 17277781 O-RING Ø6,07 MM SP=1,78 MM
26 4833421 OIL NOZZLE
27 4700613 GASKET
28 4775503 SCREW CONNECTOR
29 10837810 DOWEL PIN Ø12 MM
30 4533969 DOWEL PIN
32 10265460 SEAL GASKET Ø42X49 MM SP=1,5 MM
34 4665029 LOCK PLUG M42X1,5
35 99467117 CYLINDER LINER +0,5 MM
