8210SRE21.00

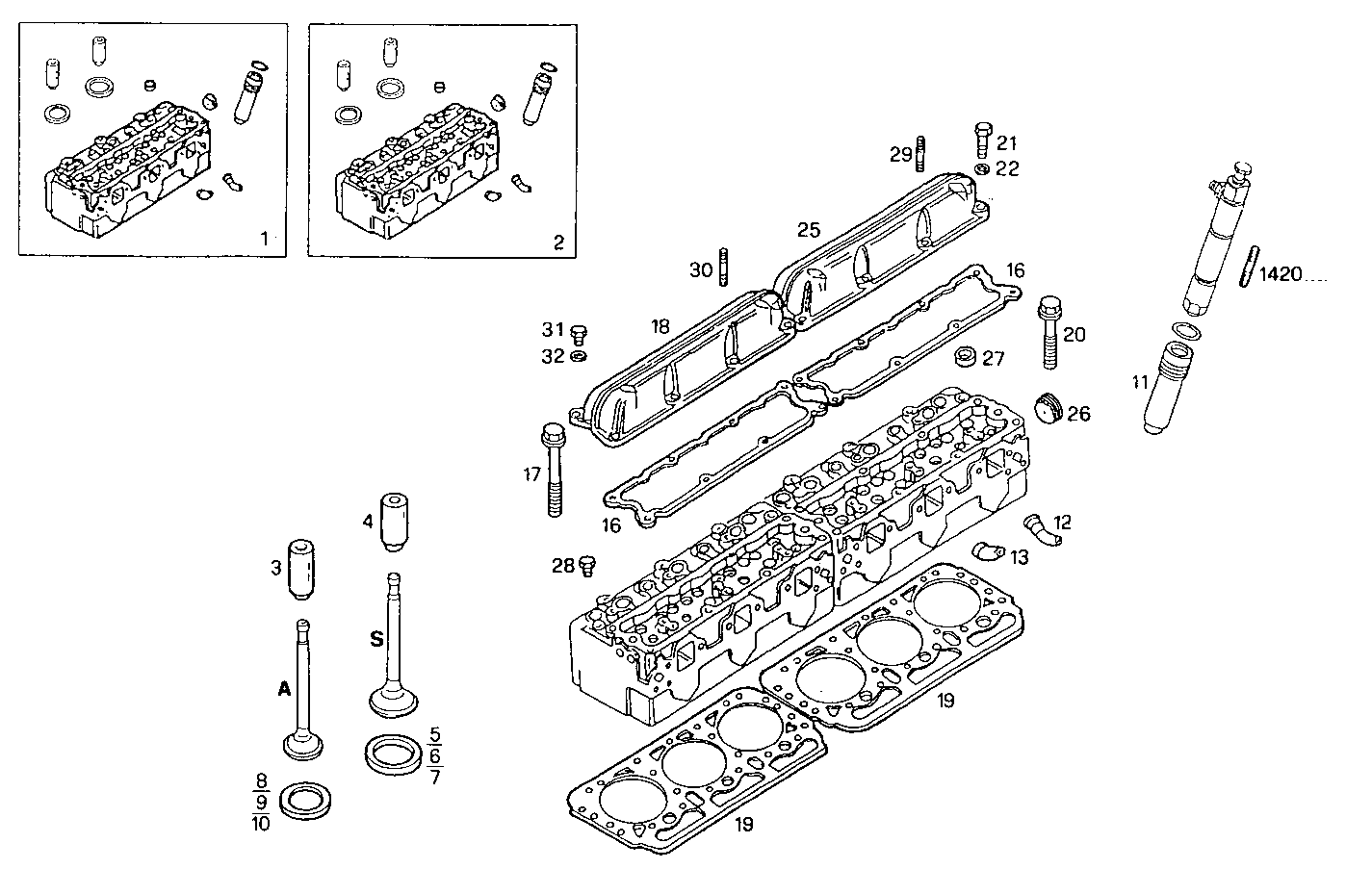

0600.121/01 CYLINDER HEAD

Iveco/FPT CYLINDER HEAD

Item Part number Description
1 500330963 CYLINDER HEAD ASSY FRONT
2 500330965 CYLINDER HEAD ASSY REAR
3 4630923 VALVE GUIDE
4 4648237 VALVE GUIDE
5 4849707 VALVE SEAT STD. [from 258270]
6 4849716 VALVE SEAT +0.05 [from 258270]
7 4849715 VALVE SEAT +0.20 [from 258270]
8 4673864 VALVE SEAT STD.
9 4673869 VALVE SEAT +0.05
10 4673868 VALVE SEAT +0.20
11 98413143 NOZZLE HOLDER SEAT
12 4638192 PIPE
13 4623879 PIPE
16 98480127 HEAD COVER GASKET [from 08-97]
17 4769616 CYL.HEAD STUD
18 98474814 CYL. HEAD COVER
19 99484354 CYL.HEAD GASKET
20 4769615 SCREW
21 16606424 HEXAGON BOLT M8X65 MM
22 17094914 WASHER 8x16
25 8111179 CYL. HEAD COVER
26 16991070 LOCK PLUG Ø32 MM
27 14282370 LOCK PLUG Ø25 MM
28 16997211 LOCK PLUG M12X1,5
29 16746624 STUD M8X20 MM (8.8)
30 13543324 STUD M8X16X20
31 10300911 PLUG M8
32 10260060 SEAL GASKET Ø8X12X1 MM
