8210SRE21.00

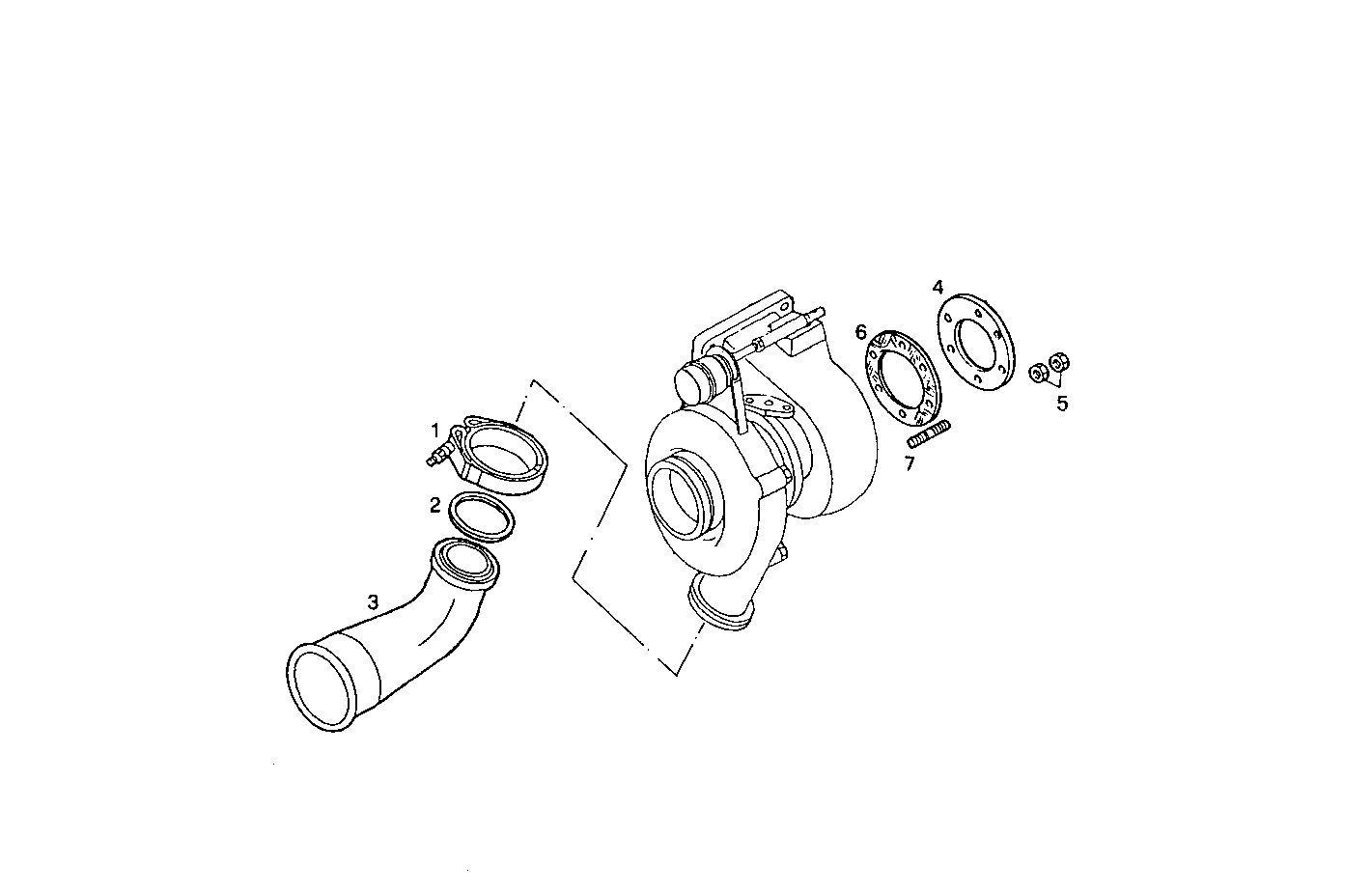

2420.161 SUPERCHARGING LINES

Iveco/FPT SUPERCHARGING LINES

Item Part number Description
1 4800661 CLIP Ø 75 mm.
2 17284681 O-RING Ø61,6 MM SP=2,62 MM
3 61318365 AIR PIPE/DUCT
4 8113463 FLANGE
5 8100961 NUT M10X1,25
6 42075987 GASKET
7 500314985 STUD M10X1,25 - M10X1,5
