8210SRE21.00

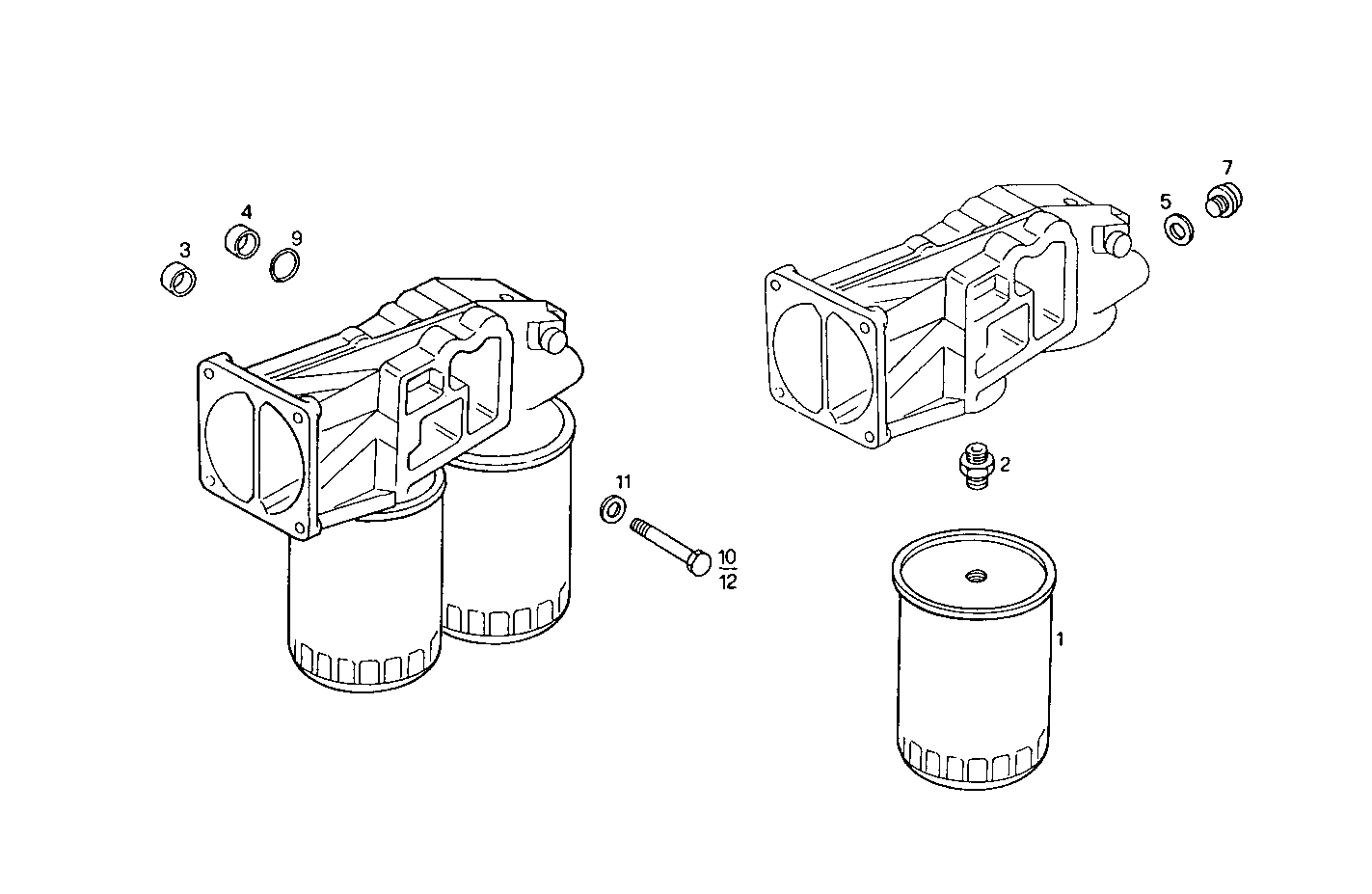

3020.067 OIL FILTERS
| Item | Part number | Description |
|---|---|---|
| 1 | 1903629 | OIL FILTER CARTRIDGE |
| 2 | 4657869 | BULKHEAD STR.COUPL |
| 3 | 4838502 | SEAL GASKET |
| 4 | 4538571 | CENTERING BUSH |
| 5 | 4858608 | SEAL GASKET dia.14x19,5x1,5 |
| 7 | 16992311 | LOCK PLUG M14X1,5 |
| 9 | 17282581 | O-RING Ø28,24 MM SP=2,62 MM |
| 10 | 15972221 | SCREW M10X1,25X120 |
| 11 | 17090474 | SPRING WASHER Ø10X27 MM SP=2,5 |
| 12 | 15972621 | HEXAGON BOLT M10X1,25X140 MM |
