8210SRE21.00

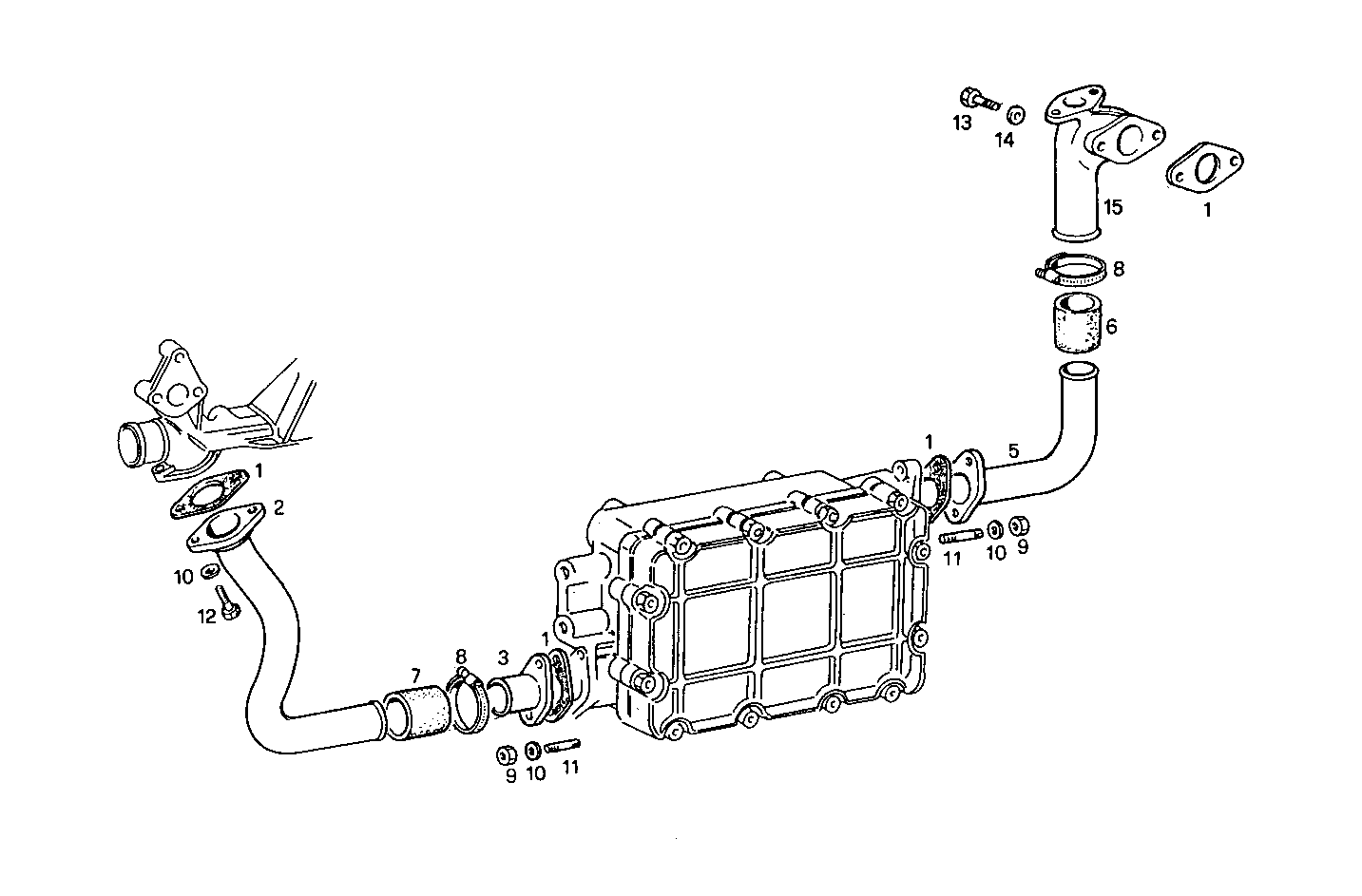

3210.207/02 WATER LINES
| Item | Part number | Description |
|---|---|---|
| 1 | 4863951 | FLAT ENGINE GASKET |
| 2 | 98485417 | WATER PIPE |
| 3 | 4756798 | PIPE |
| 5 | 4756199 | INTAKE ELBOW |
| 6 | 4863960 | WATER HOSE |
| 7 | 4863962 | WATER HOSE |
| 8 | 98490783 | CLIP Ø55-65 MM |
| 9 | 17037931 | HEXAGON NUT M8X1,25 |
| 10 | 17793814 | WASHER Ø8,4X21 MM |
| 11 | 16746724 | STUD M8X25 MM |
| 12 | 16605624 | HEXAGON BOLT M8X25 MM (8.8) |
| 13 | 16605734 | HEXAGON BOLT M8X30 MM |
| 14 | 17089474 | SPRING WASHER Ø8X16 MM SP=1,4 MM |
| 15 | 4670077 | WATER PIPE |
