8210SRE21.00

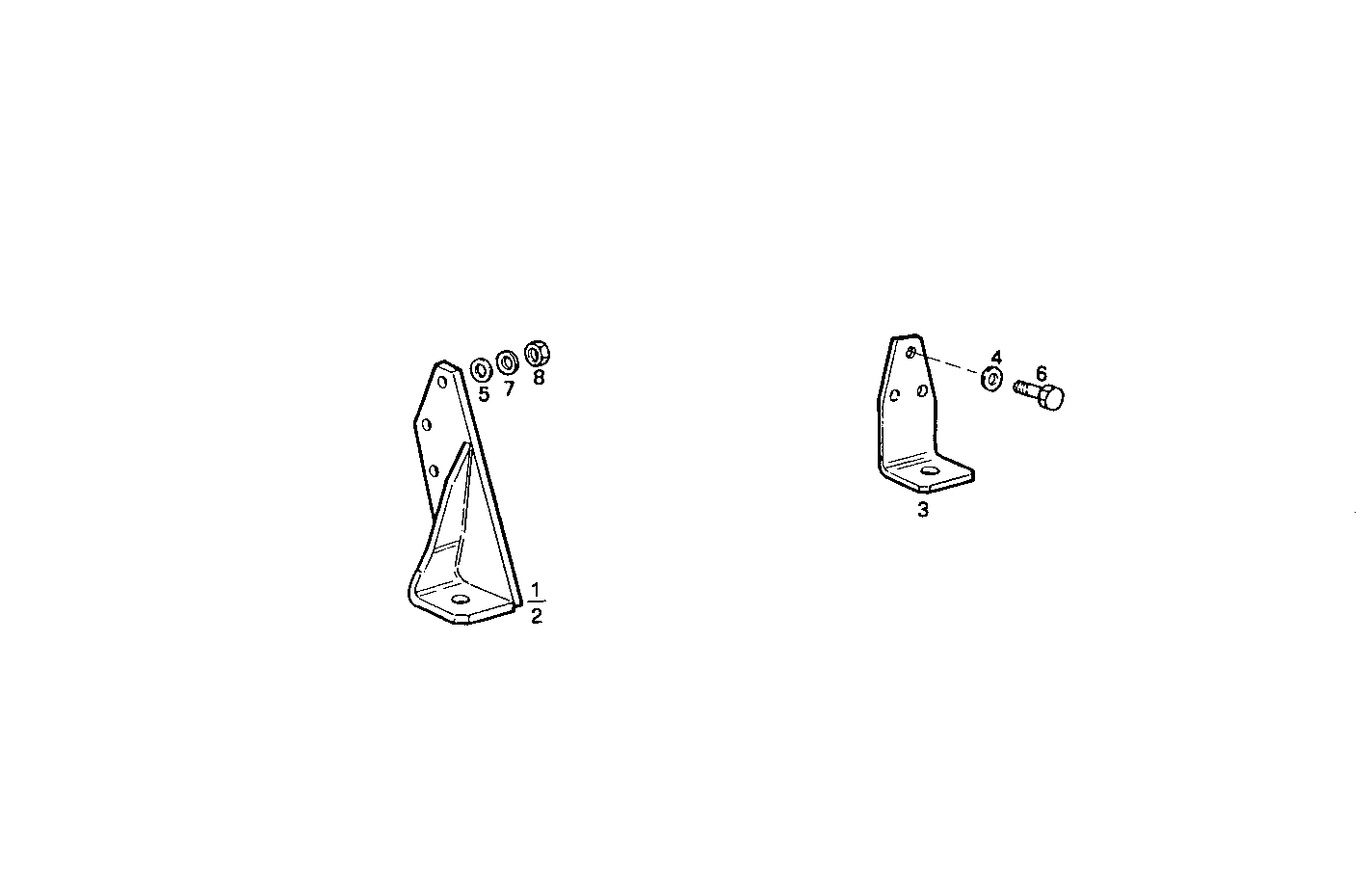

A04000037 RIGID MOUNTING
Item | Part number | Description |
---|---|---|
1 | 8110751 | ENGINE SUSPENSION RIGHT |
2 | 8110752 | ENGINE SUSPENSION LEFT |
3 | 8110750 | ENGINE SUSPENSION |
4 | 17092474 | SPRING WASHER Ø16X34 MM SP=4,4 MM |
5 | 17091621 | WASHER Ø14X27X3,0 MM |
6 | 11390521 | HEXAGON BOLT M16X1,5X40 MM |
7 | 4753027 | SPACER Ø12 MM |
8 | 17038721 | NUT M14X2 [from ...] |
