8210SRE21.00

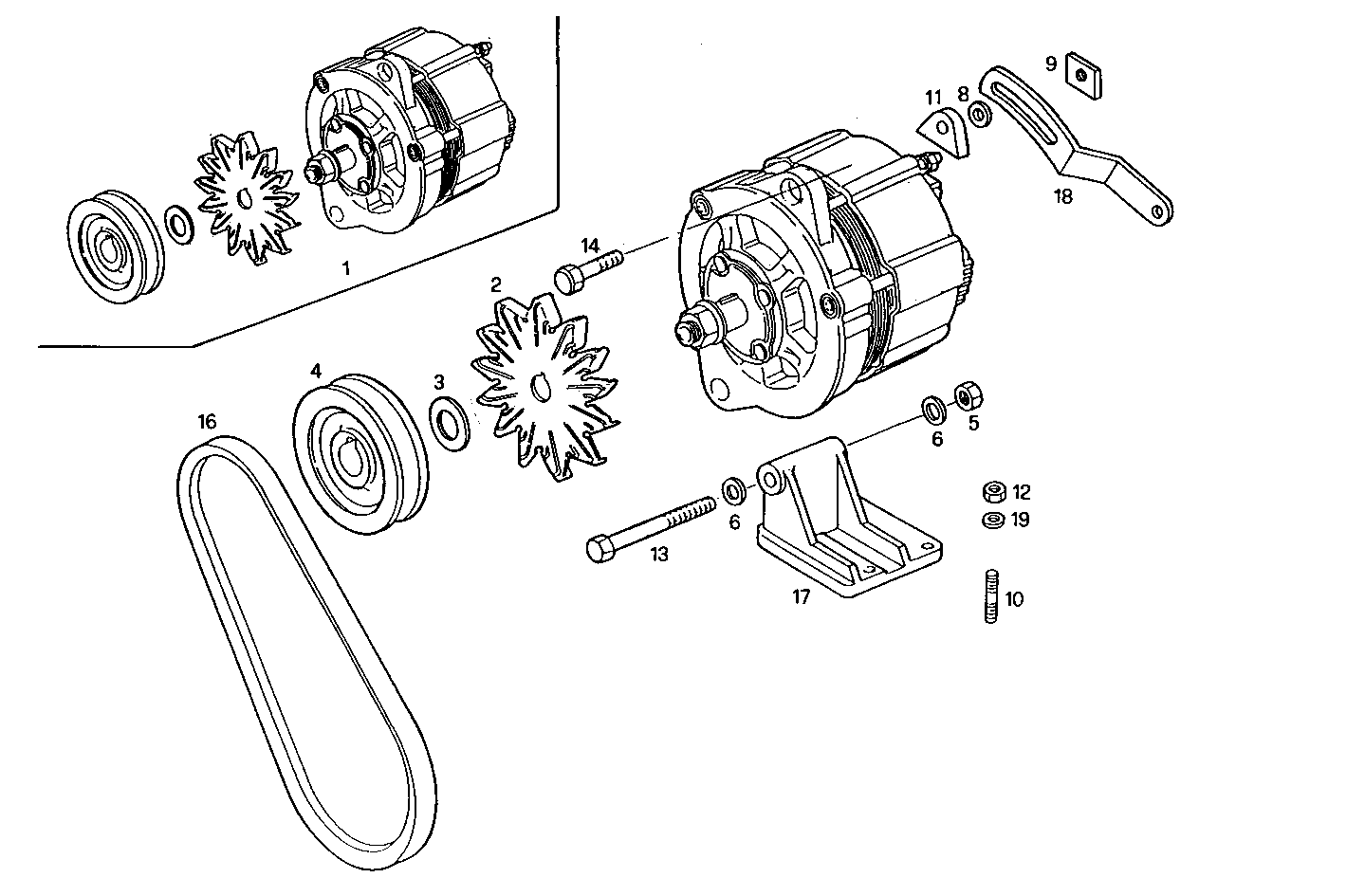

A14010022 SELF-REGULATED ALTERNATOR - 24V 80A (W)
| Item | Part number | Description |
|---|---|---|
| 1 | 98424452 | ALTERNATOR ASSY 80A BOSCH |
| 2 | 4757196 | GENERATOR FAN BOSCH |
| 3 | 98454596 | SPACING BAR BOSCH |
| 4 | 4833642 | PULLEY ASSY |
| 5 | 17157121 | HEXAGON NUT M10X1,5 |
| 6 | 17095104 | WASHER Ø10X21X2 MM |
| 8 | 17095004 | WASHER Ø10X18X2 MM |
| 9 | 98424121 | LOCKING PLATE |
| 10 | 13449424 | STUD M10X15X22 |
| 11 | 98424122 | SPACING BAR |
| 12 | 17038221 | HEXAGON NUT M10 |
| 13 | 16609124 | HEXAGON BOLT M10X130 MM |
| 14 | 14308024 | CYLIND-HEAD SCREW |
| 16 | 98459454 | ALTERNATOR BELT |
| 17 | 98433409 | SUPPORT |
| 18 | 98433408 | BELT TENSIONER |
| 19 | 11198574 | WASHER Ø10X20 MM SP=1,9 |
