Catalogue Menu
8210SRE21.00

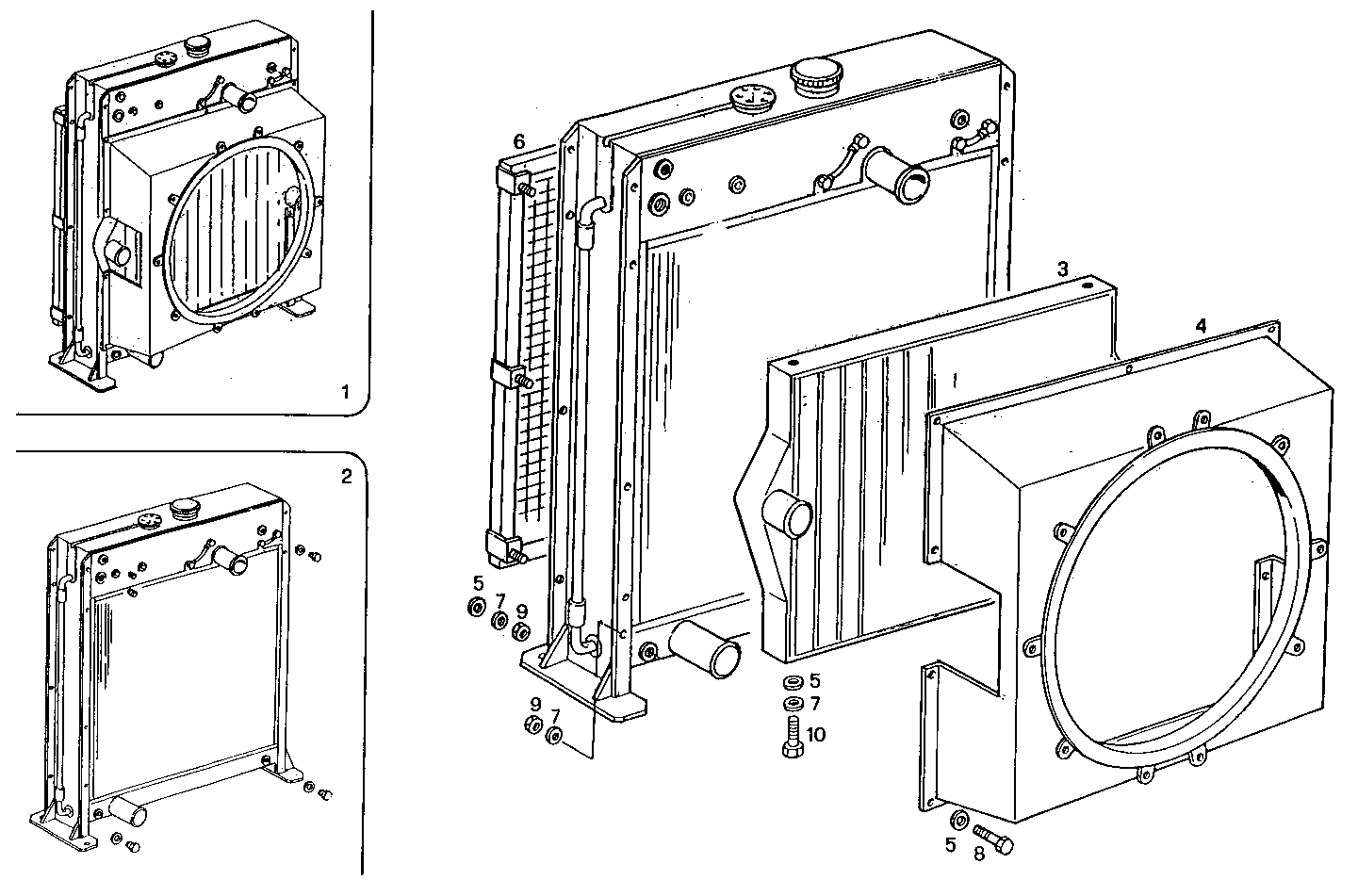

A22400004/01 RADIATOR FOR SETTING TILL MAX POWER - loose
| Item | Part number | Description |
|---|---|---|
| 1 | 8029399 | WATER RADIATOR ASSY |
| 2 | 8008461 | WATER RADIATOR ASSY |
| 3 | 8007997 | INTERCOOLER Tesio |
| 4 | 8029415 | AIR HOOD |
| 5 | 12647001 | WASHER Ø8X25 MM |
| 6 | 8008490 | PROTECTION |
| 7 | 17089774 | SPRING WASHER Ø8,4X22 MM SP=2,4 MM |
| 8 | 16605524 | HEXAGON BOLT M8X20 MM |
| 9 | 17037931 | HEXAGON NUT M8X1,25 |
| 10 | 16605424 | SCREW M8X16 MM (8.8) |
| 11 | 8012140 | VALVE |
