8210SRE21.00

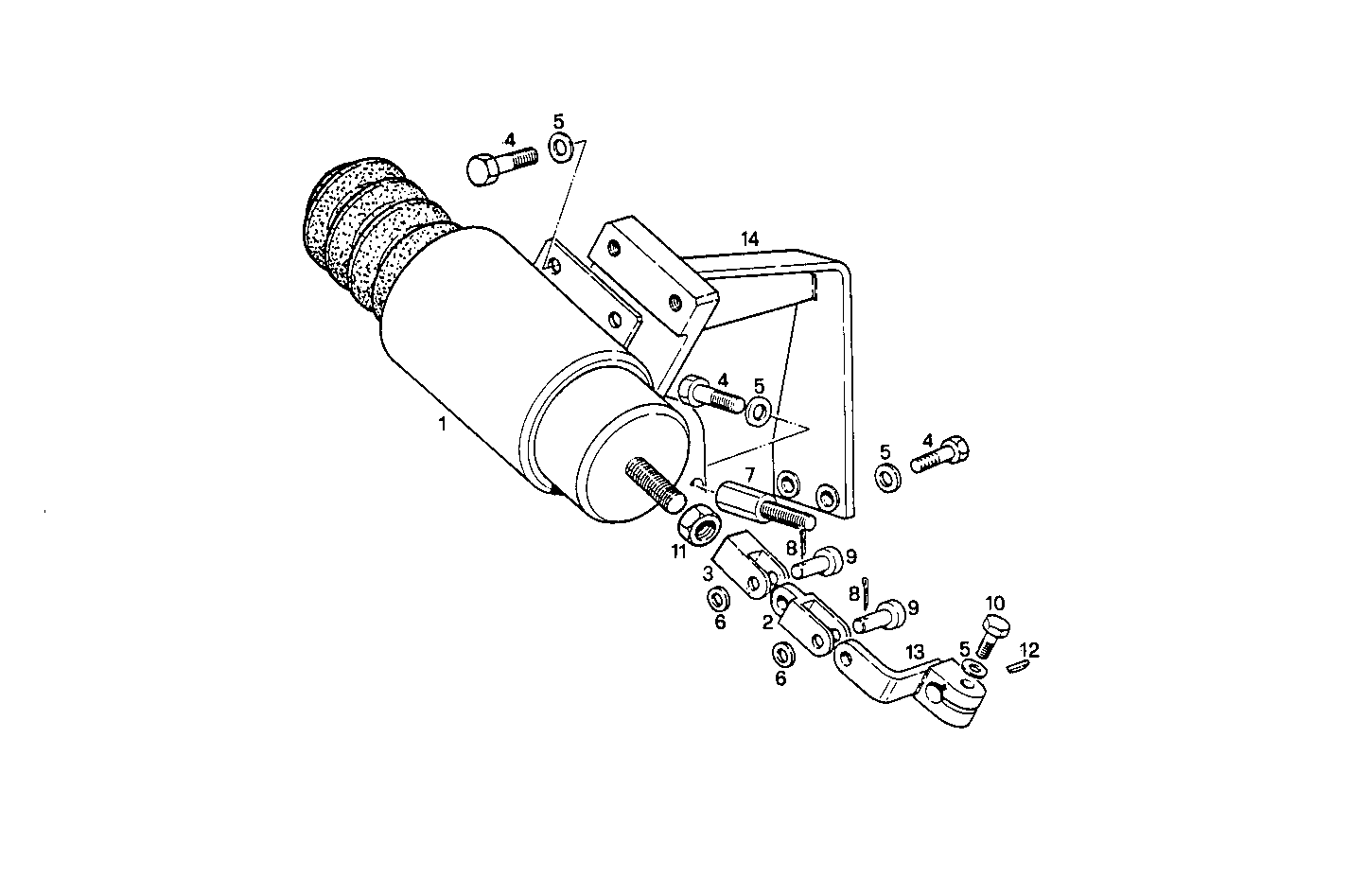

A38420033 STOP SOLENOID - ENERGIZE TO STOP - 24V

Iveco/FPT STOP SOLENOID - ENERGIZE TO STOP - 24V

Item Part number Description
1 8105568 SOLENOID
2 8108833 CLEVIS
3 8109159 CLEVIS M6X40
4 10902221 HEXAGON BOLT M6X16 MM
5 11197779 SPRING WASHER Ø6X12 MM
6 14497801 WASHER Ø5X9,5 MM
7 8110818 SPACING BAR
8 10734101 SPLIT PIN Ø1,3 MM
9 17718411 PIN Ø5 MM
10 16602124 SCREW M5X16 MM
11 15896211 HEXAGON NUT M6
12 8101048 KEY 3X5X12,5
13 8019665 LEVER
14 8110754 SUPPORT [up to 12-90]
