8210SRG85.10

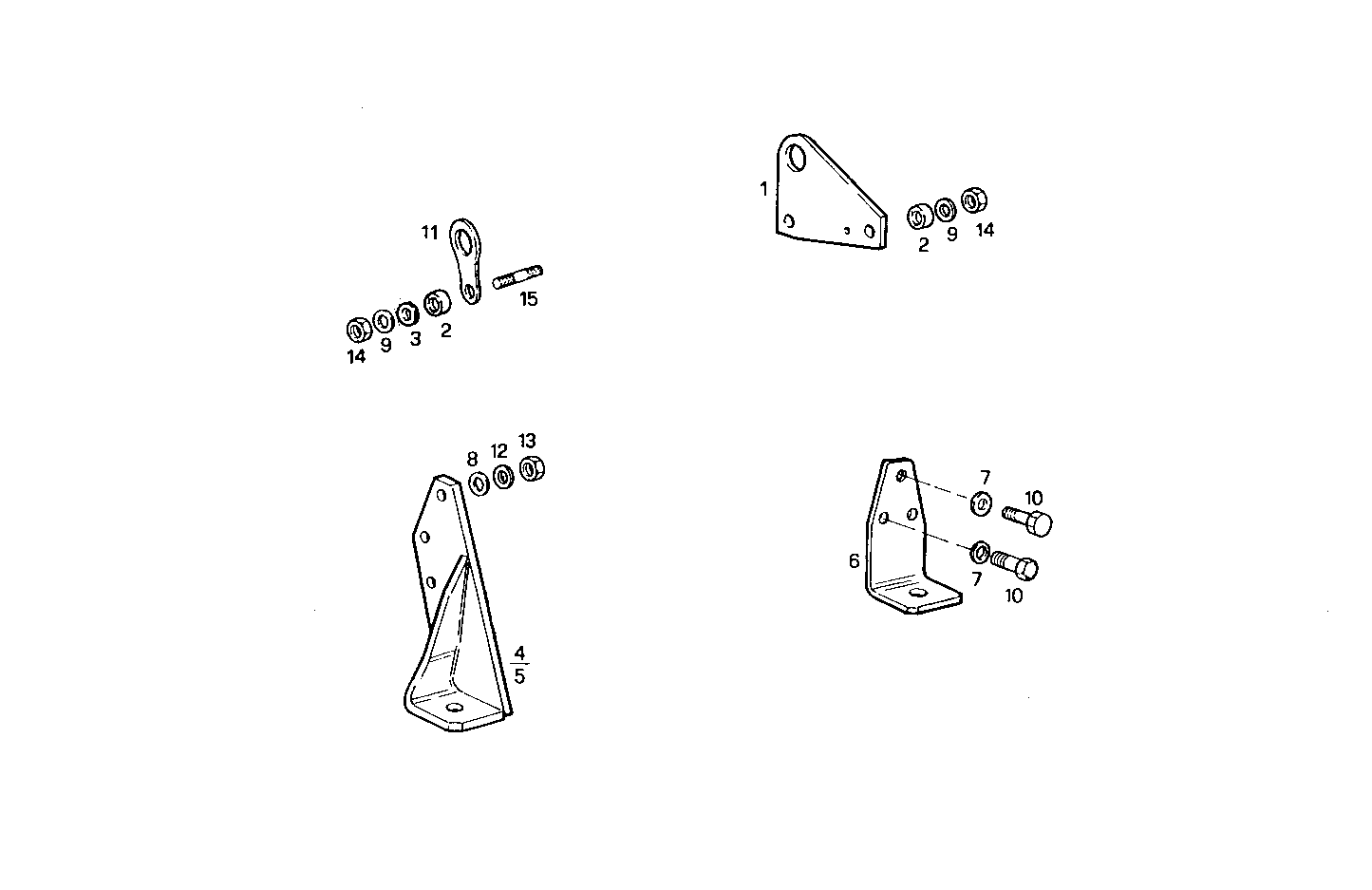

4500.071 ENGINE SUSPENSION

Iveco/FPT ENGINE SUSPENSION

Item Part number Description
1 4753026 HOOK
2 4753027 SPACER Ø12 MM
3 4764086 WASHER Ø12X35 MM
4 8110751 ENGINE SUSPENSION RIGHT
5 8110752 ENGINE SUSPENSION LEFT
6 8110750 ENGINE SUSPENSION
7 11200279 SPRING WASHER Ø17 MM
8 10738121 WASHER Ø14 MM
9 11198674 WASHER Ø13 MM
10 15840521 SCREW M16X1,5X50
11 4756461 HOOK
12 11194179 SPRING WASHER Ø15 MM
13 12164011 HEXAGON NUT M14X1,5 [up to…]
14 16101511 HEXAGON NUT M12X1,25
15 4698263 STUD
