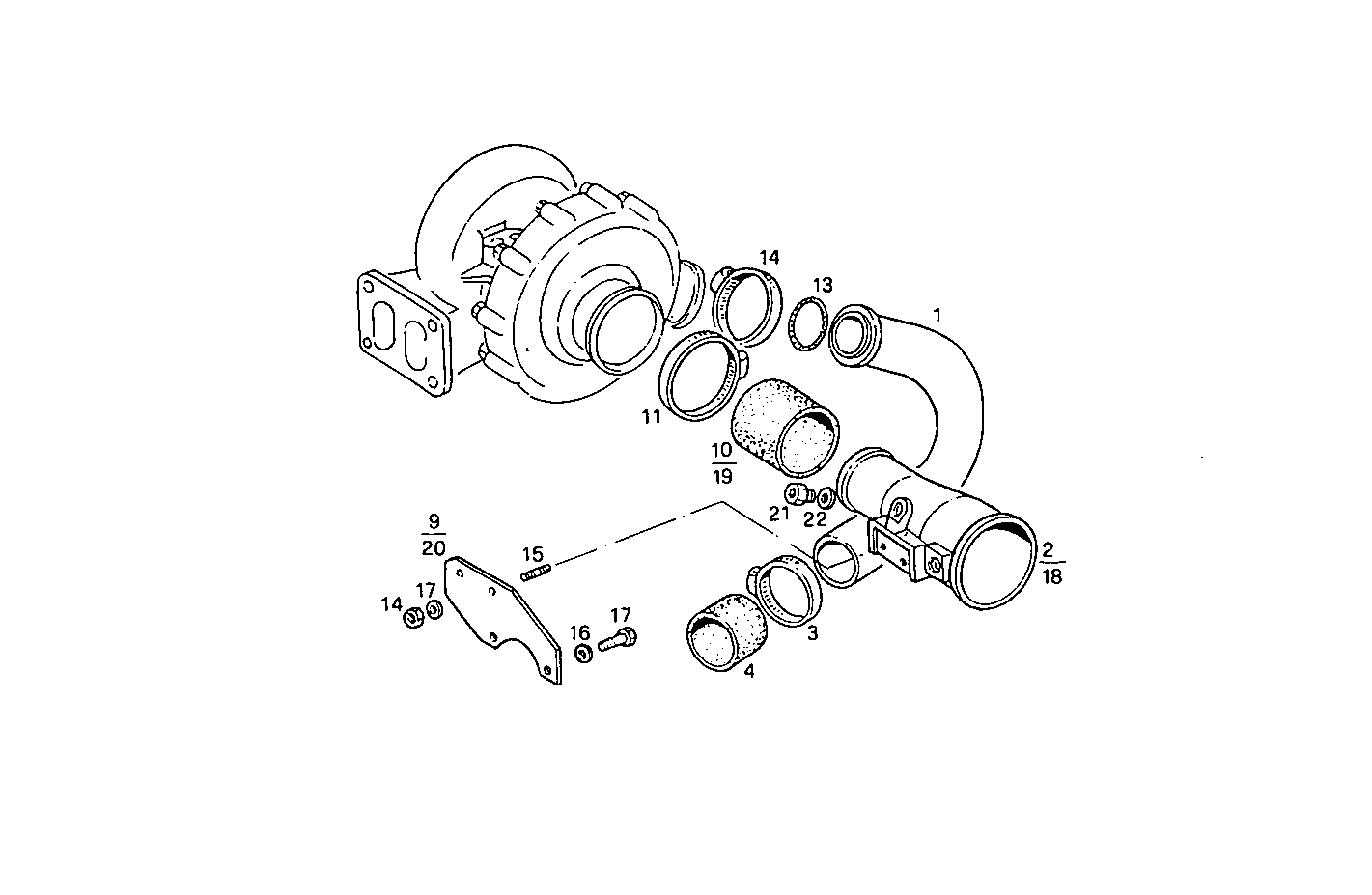

Item |
Part number |
Description |
1 |
4802156 |
AIR PIPE/DUCT |
2 |
4817877 |
AIR PIPE/DUCT [from 205659] |
3 |
4788410 |
CLIP Ø92/98 MM |
4 |
4773335 |
TURBOCHARGER HOSE |
9 |
4817878 |
SADDLE PLATE [from 205659] |
10 |
4699734 |
TURBOCHARGER HOSE [from 205659] |
11 |
17765392 |
CLIP Ø90-110 MM |
12 |
4800661 |
CLIP Ø 75 mm. |
13 |
17284681 |
O-RING Ø61,6 MM SP=2,62 MM |
14 |
17037931 |
HEXAGON NUT M8X1,25 |
15 |
13543121 |
STUD M8X16 MM |
16 |
12646704 |
WASHER Ø8X21X1,5 MM |
17 |
15000724 |
HEXAGON BOLT M8X22 MM (8.8) |
18 |
4773336 |
AIR PIPE/DUCT [up to 205658] |
19 |
4532938 |
TURBOCHARGER HOSE [up to 205658] |
20 |
4773338 |
SADDLE PLATE [up to 205658] |
21 |
4817894 |
BUSH |
22 |
10257460 |
SEAL GASKET Ø20X26 MM SP=1,5 MM [up to ...] |
