8210SRi12.01

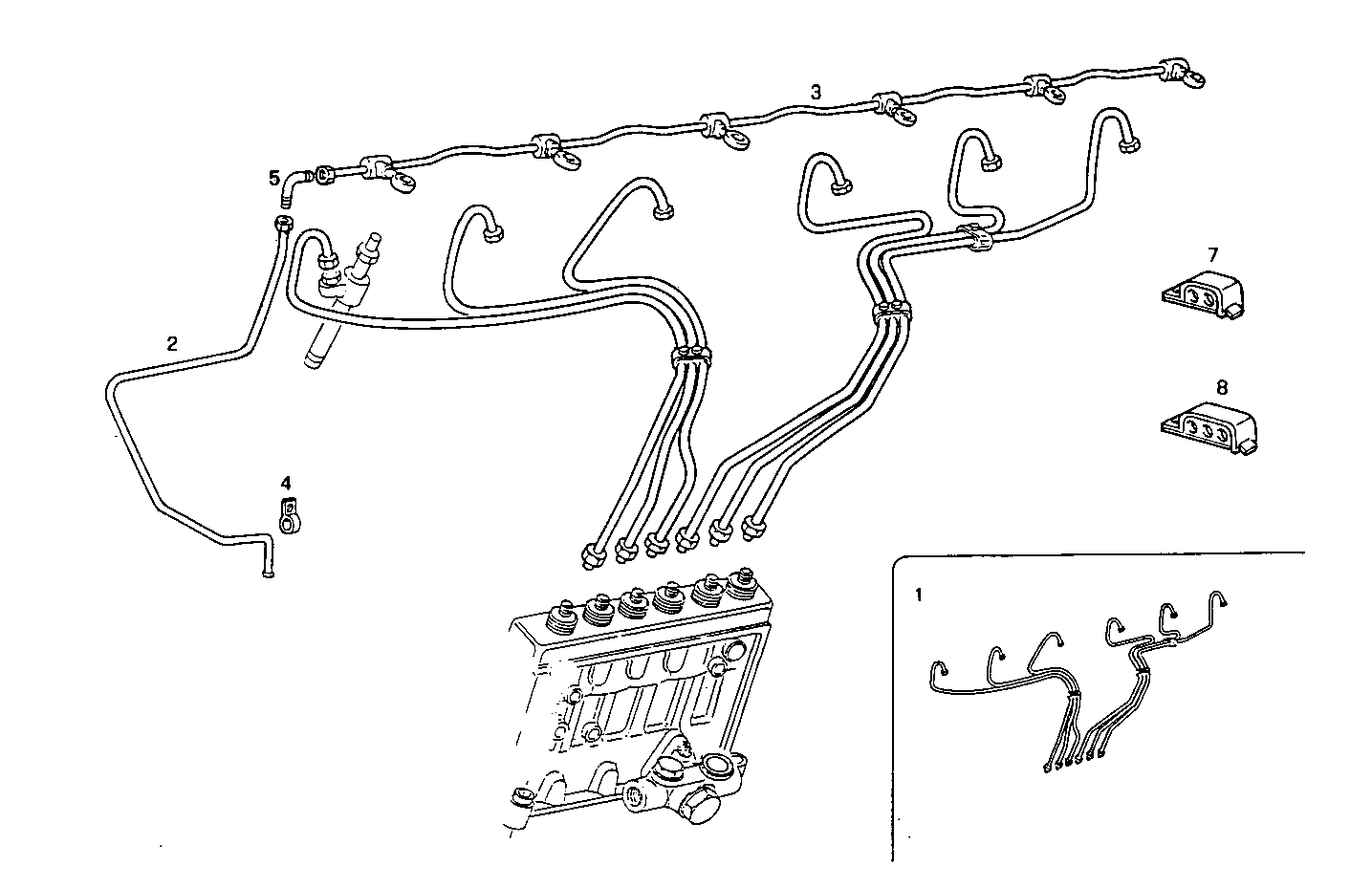

2020.035 INJECTION PIPES
| Item | Part number | Description |
|---|---|---|
| 1 | 98413215 | INJECTION LINE SET |
| 2 | 8006415 | FUEL LINE |
| 3 | 4863056 | FUEL LINE ASSY |
| 4 | 17316390 | CLIP |
| 5 | 16503011 | PIPE SOCKET |
| 7 | 4806611 | FASTENING BRACKET |
| 8 | 4806612 | FASTENING BRACKET |
