8210SRi12.01

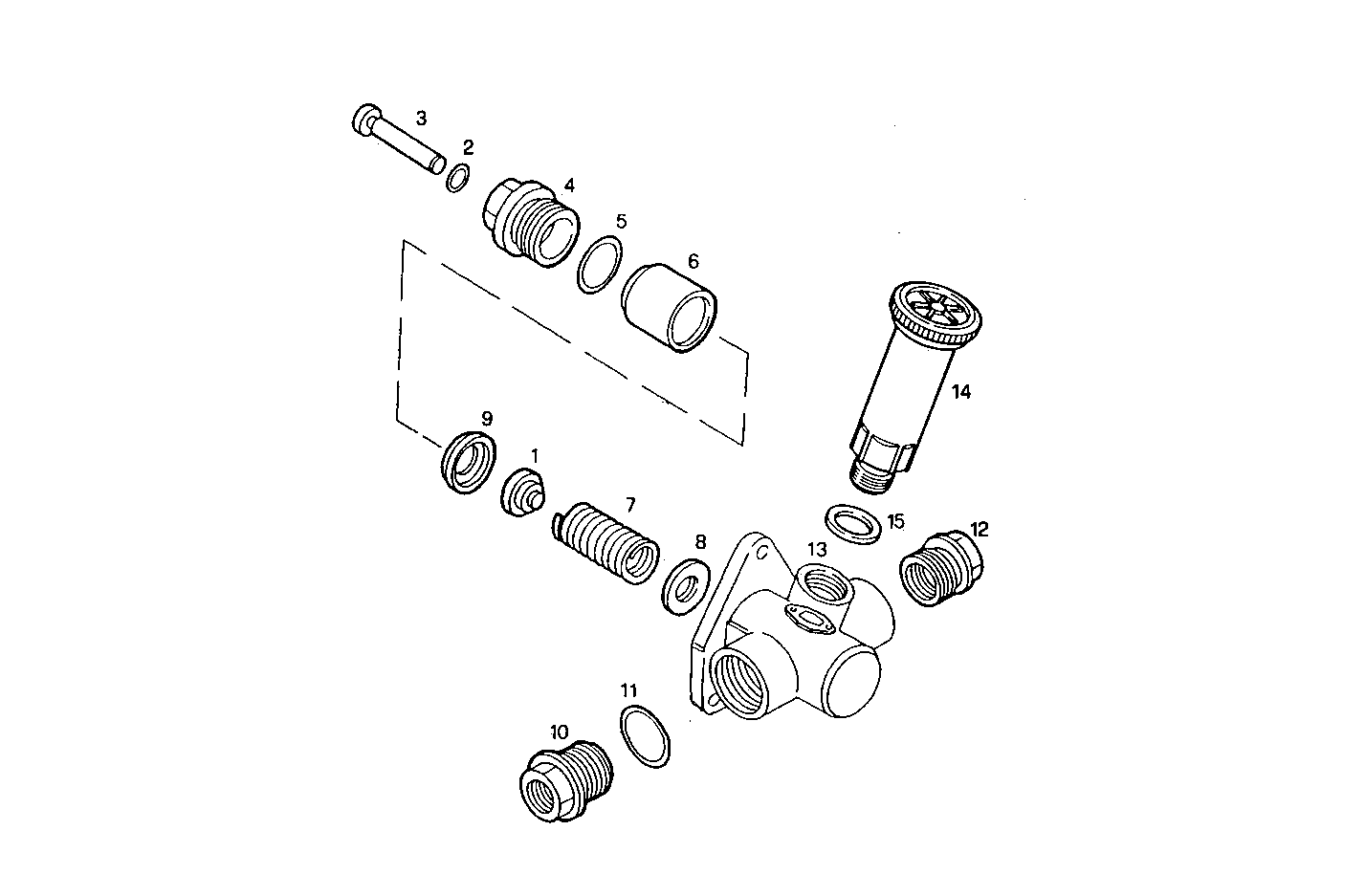

2040.035 FUEL PUMP (COMPONENTS)
Item | Part number | Description |
---|---|---|
1 | 42522534 | VALVE |
2 | 79070369 | O-RING |
3 | 93160441 | VALVE |
4 | 93156914 | VALVE HOUSING |
5 | 93156915 | O-RING |
6 | 93156916 | PUMP PLUNGER |
7 | 93156917 | SPRING |
8 | 93156918 | CAP SP=0,5 MM |
9 | 93156919 | CAP |
10 | 93156921 | THREADED UNION |
11 | 93156922 | O-RING |
12 | 93157238 | THREADED UNION |
13 | 8018467 | FUEL PUMP |
14 | 8011481 | HAND PUMP |
15 | 4858609 | WASHER Ø16X22 MM SP=1,5 MM |
