8210SRi12.01

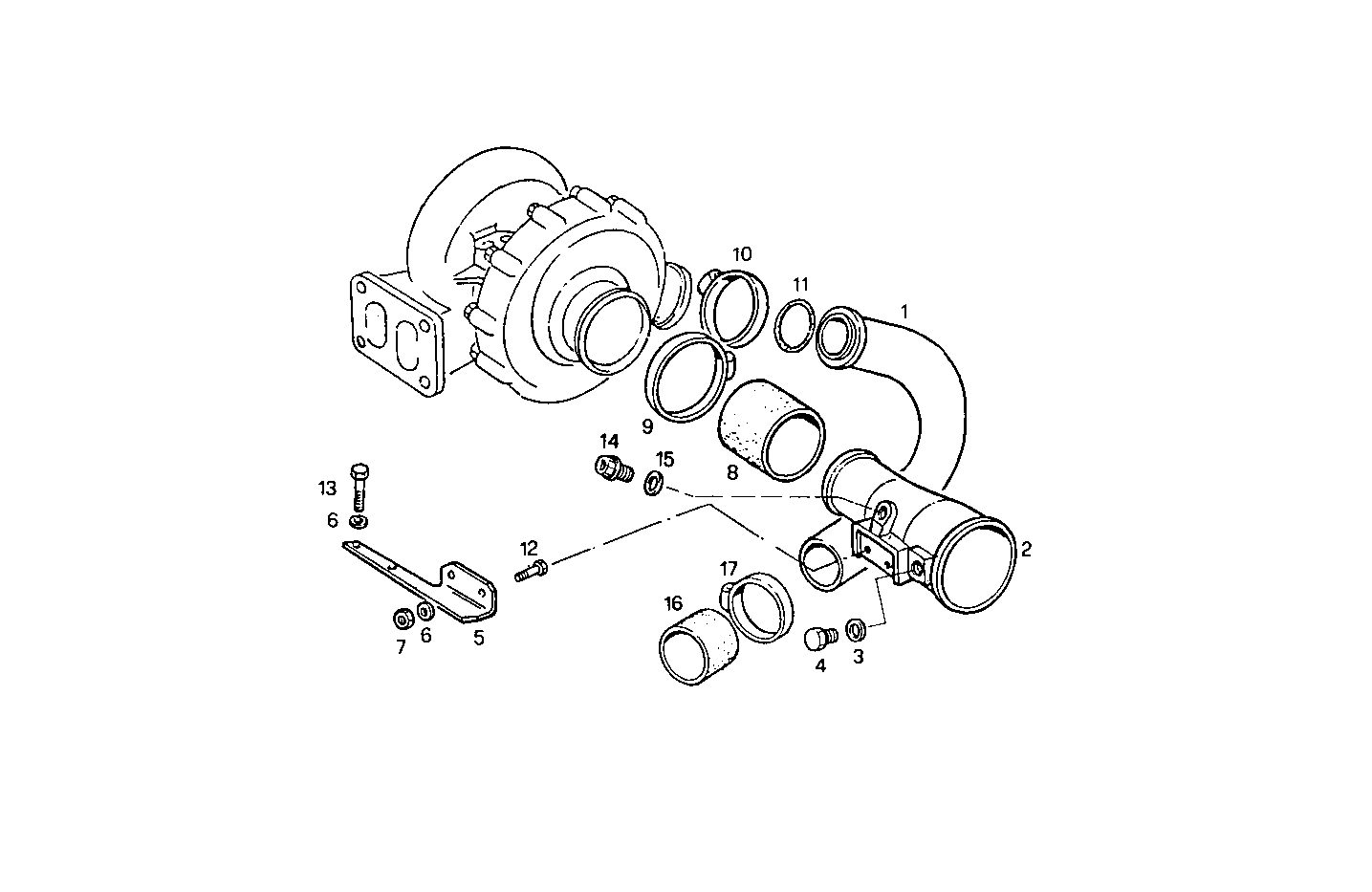

2420.049 SUPERCHARGING LINES

Iveco/FPT SUPERCHARGING LINES

Item Part number Description
1 4802156 AIR PIPE/DUCT
2 4817877 AIR PIPE/DUCT [from 205659]
3 10296260 SEAL GASKET Ø28X36 MM SP=1,5 MM
4 16993511 LOCK PLUG M28X1,5
5 8005000 RETAINER
6 17089474 SPRING WASHER Ø8X16 MM SP=1,4 MM
7 17037931 HEXAGON NUT M8X1,25
8 8030531 TURBOCHARGER HOSE
9 8005839 CLIP
10 4800661 CLIP Ø 75 mm.
11 17284681 O-RING Ø61,6 MM SP=2,62 MM
12 16605734 HEXAGON BOLT M8X30 MM
13 16605624 HEXAGON BOLT M8X25 MM (8.8)
14 4817894 BUSH
15 98429280 SEAL GASKET Ø20X26 MM SP=1,5 MM
16 4865230 TURBOCHARGER HOSE
17 4788410 CLIP Ø92/98 MM
