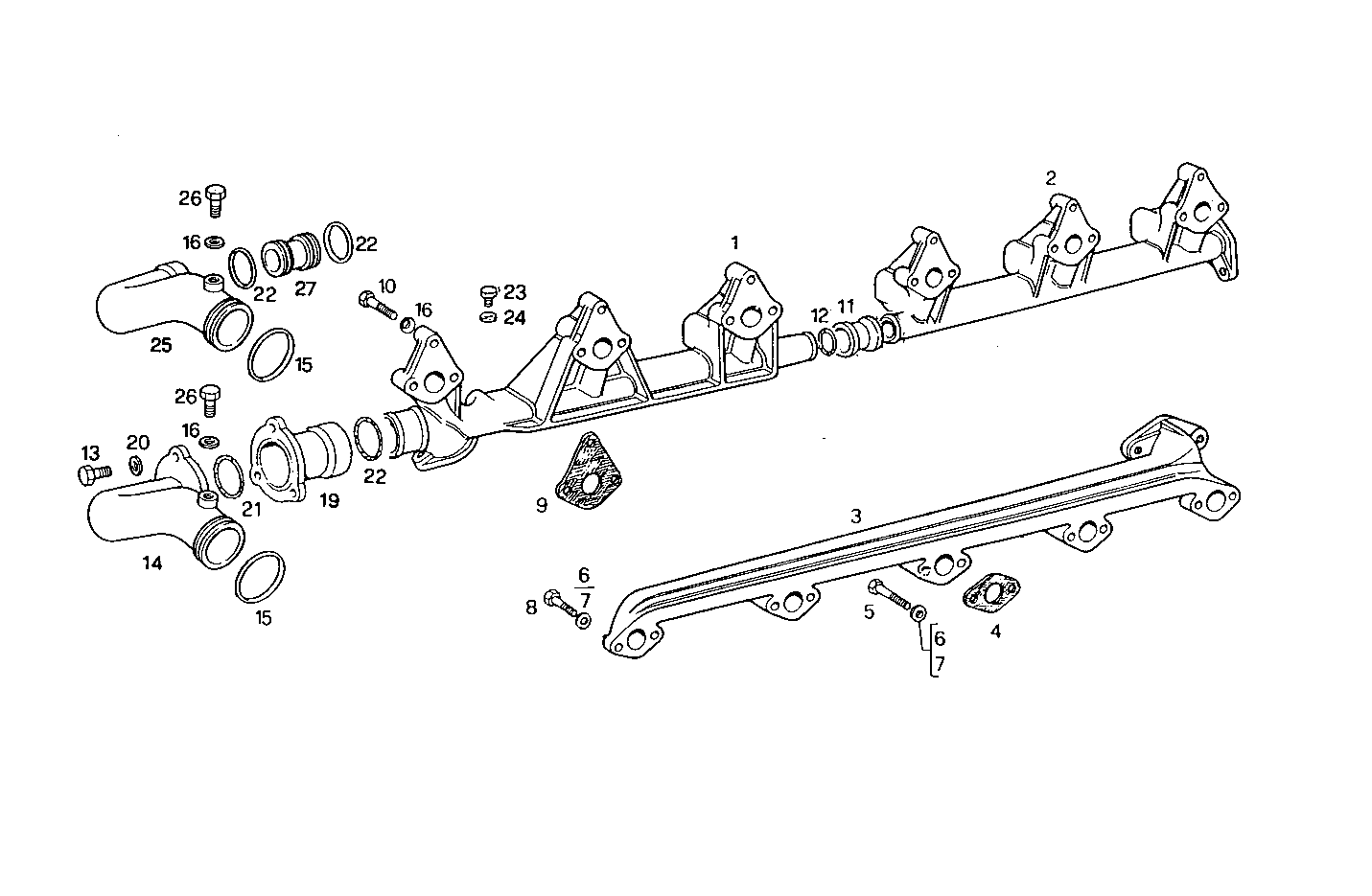

| Item |
Part number |
Description |
|
1 |
4778954 |
WATER MANIFOLD |
|
2 |
4762646 |
WATER MANIFOLD |
|
3 |
4641230 |
WATER MANIFOLD |
|
4 |
500308780 |
FLAT ENGINE GASKET |
|
5 |
16605824 |
HEXAGON BOLT M8X35 MM |
|
6 |
4852210 |
WASHER |
|
7 |
4852211 |
WASHER |
|
8 |
16606024 |
SCREW M8X45 MM |
|
9 |
4852099 |
FLAT ENGINE GASKET |
|
10 |
16605924 |
SCREW M8X40 MM |
|
11 |
4762647 |
CONNECTOR SLEEVE |
|
12 |
98458442 |
O-RING Ø24,99 MM SP=3,53 MM [from 657424] |
|
13 |
16605734 |
HEXAGON BOLT M8X30 MM |
|
14 |
4799658 |
WATER PIPE |
|
15 |
98461204 |
O-RING |
|
16 |
17094914 |
WASHER 8x16 |
|
19 |
4799657 |
WATER PIPE |
|
20 |
17089474 |
SPRING WASHER Ø8X16 MM SP=1,4 MM |
|
21 |
98461201 |
O-RING |
|
22 |
98461203 |
O-RING |
|
23 |
16992311 |
LOCK PLUG M14X1,5 |
|
24 |
4858608 |
SEAL GASKET dia.14x19,5x1,5 |
|
25 |
98478157 |
WATER PIPE [from 301481] |
|
26 |
16606524 |
HEXAGON BOLT M8X70 MM |
|
27 |
4859434 |
CONNECTOR SLEEVE [from 301481] |
