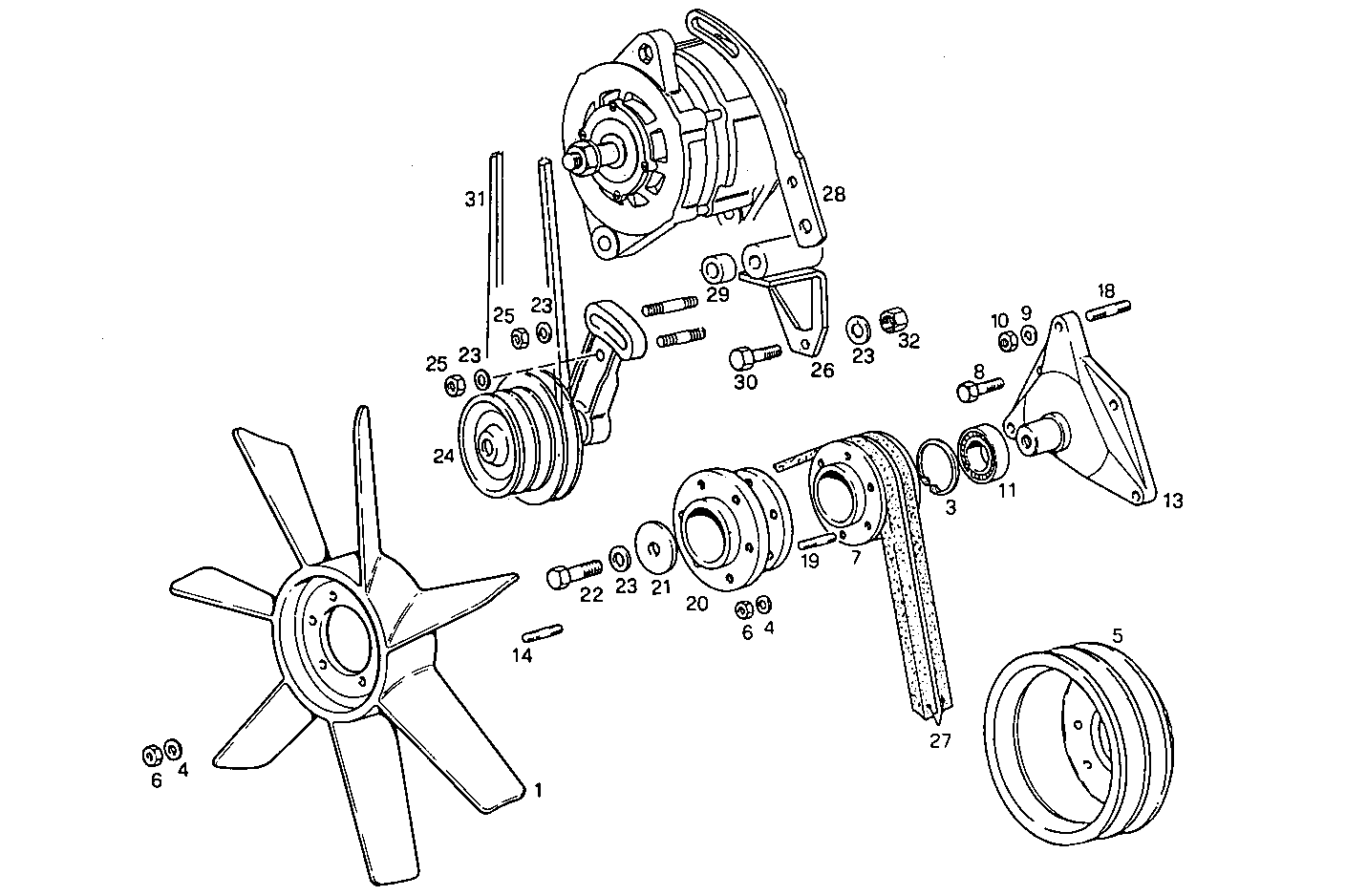

Item |
Part number |
Description |
1 |
4936057 |
FAN Ø700 MM |
3 |
16874776 |
CIRCLIP Ø85,5 MM [from 10-92] |
4 |
17089474 |
SPRING WASHER Ø8X16 MM SP=1,4 MM |
5 |
4651309 |
WATER PUMP PULLEY |
6 |
17037931 |
HEXAGON NUT M8X1,25 |
7 |
98464098 |
PULLEY [from 10-92] |
8 |
15972421 |
HEXAGON BOLT M10X1,25X130 MM |
9 |
17090174 |
SPRING WASHER Ø10X20 MM |
10 |
17038221 |
HEXAGON NUT M10 |
11 |
98427607 |
ENGINE BEARINGS |
13 |
98464097 |
SUPPORT [from 10-92] |
14 |
16729224 |
STUD M8X16 MM |
18 |
13453721 |
STUD M10X25X30 |
19 |
16729324 |
STUD M8X12X20 MM |
20 |
8006900 |
SPACING BAR |
21 |
4801143 |
WASHER |
22 |
15540521 |
SCREW M12X1,25X35 |
23 |
17091074 |
WASHER Ø12X24X2,8 MM |
24 |
98485209 |
BELT TENSIONER ASSY |
25 |
17038621 |
NUT M12 |
26 |
8006911 |
SUPPORT |
27 |
4854694 |
SET OF V-BELTS KIT |
28 |
8007183 |
BELT TENSIONER |
29 |
8114378 |
SPACING BAR |
30 |
16610724 |
SCREW M12X1,75X70 MM |
31 |
4814275 |
ALTERNATOR BELT |
32 |
17038421 |
HEXAGON NUT M12 (8) |
