8210SRi12.01

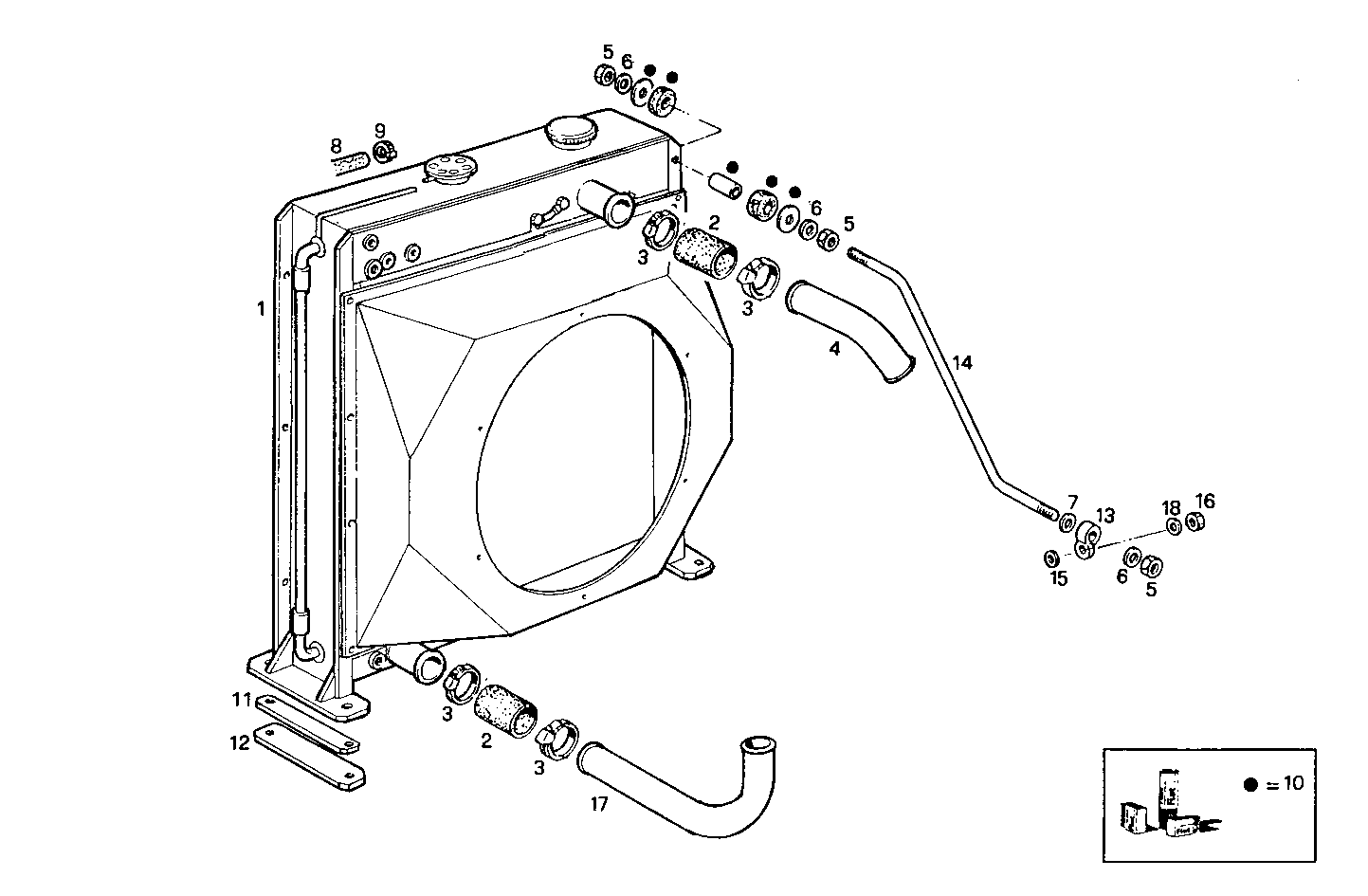

A22410011 RADIATOR FOR SETTING TILL MAX POWER
Item | Part number | Description |
---|---|---|
1 | 8021898 | WATER RADIATOR ASSY |
2 | 17745887 | RUBBER SLEEVE WATER |
3 | 4830091 | CLIP |
4 | 8025455 | WATER PIPE |
5 | 17038421 | HEXAGON NUT M12 (8) |
6 | 17091374 | SPRING WASHER Ø12X30X3,0 MM |
7 | 17095304 | WASHER Ø12X24 MM |
8 | 19056687 | RUBBER HOSE Ø7,5 MM |
9 | 18087991 | CLIP Ø8/16 MM |
10 | 8090977 | KIT-RADIATOR A.S. COMPLETE |
11 | 8010041 | SPACING BAR SP=7 MM |
12 | 8019415 | SPACING BAR |
13 | 8028743 | RETAINER |
14 | 8010577 | TIE ROD RIGHT |
15 | 17095504 | WASHER Ø14X28 MM |
16 | 17038821 | HEXAGON NUT M14 |
17 | 8010580 | WATER PIPE |
18 | 17091674 | WASHER Ø14X27X3,0 MM |
