8210SRi25.01

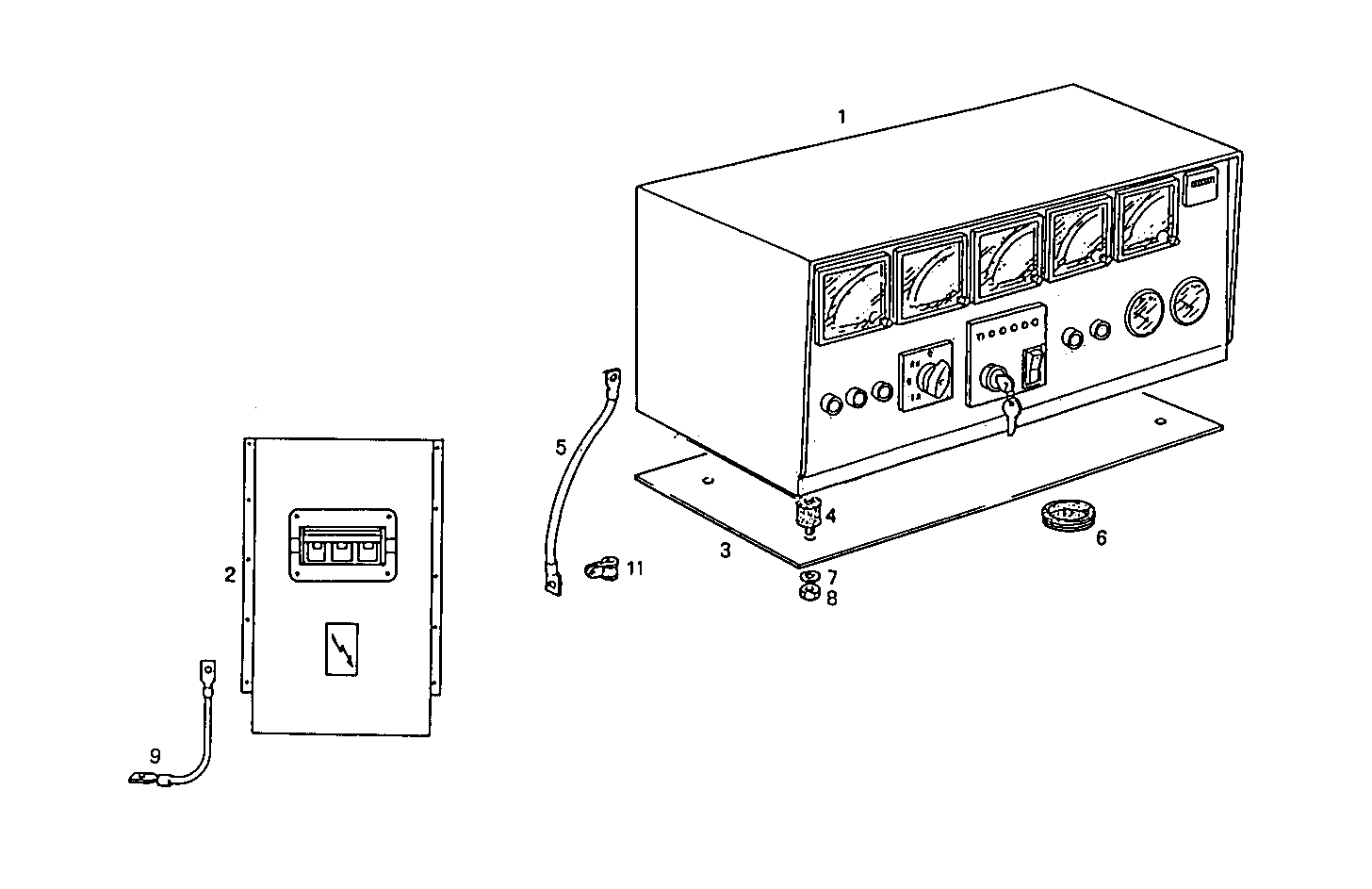

A60310024 MANUAL CONTROL BOARD FOR ELECT. MACHINE - STAMFORD
Item | Part number | Description |
---|---|---|
1 | 8023919 | CONTROL BOARD ASSY 380V 50-60HZ [from 03-97] |
2 | 8023902 | SWITCH 800A [from 03-97] |
3 | 8019259 | COVER |
4 | 8104155 | DOWEL |
5 | 8006993 | EARTH WIRE |
6 | 8113214 | INSULATING RING |
7 | 17088474 | WASHER Ø6X12 MM |
8 | 17037821 | HEXAGON NUT M6X1 |
9 | 8104707 | WIRE/CABLE |
11 | 17314890 | CLIP |
