Catalogue Menu

8210SRi25.01A550

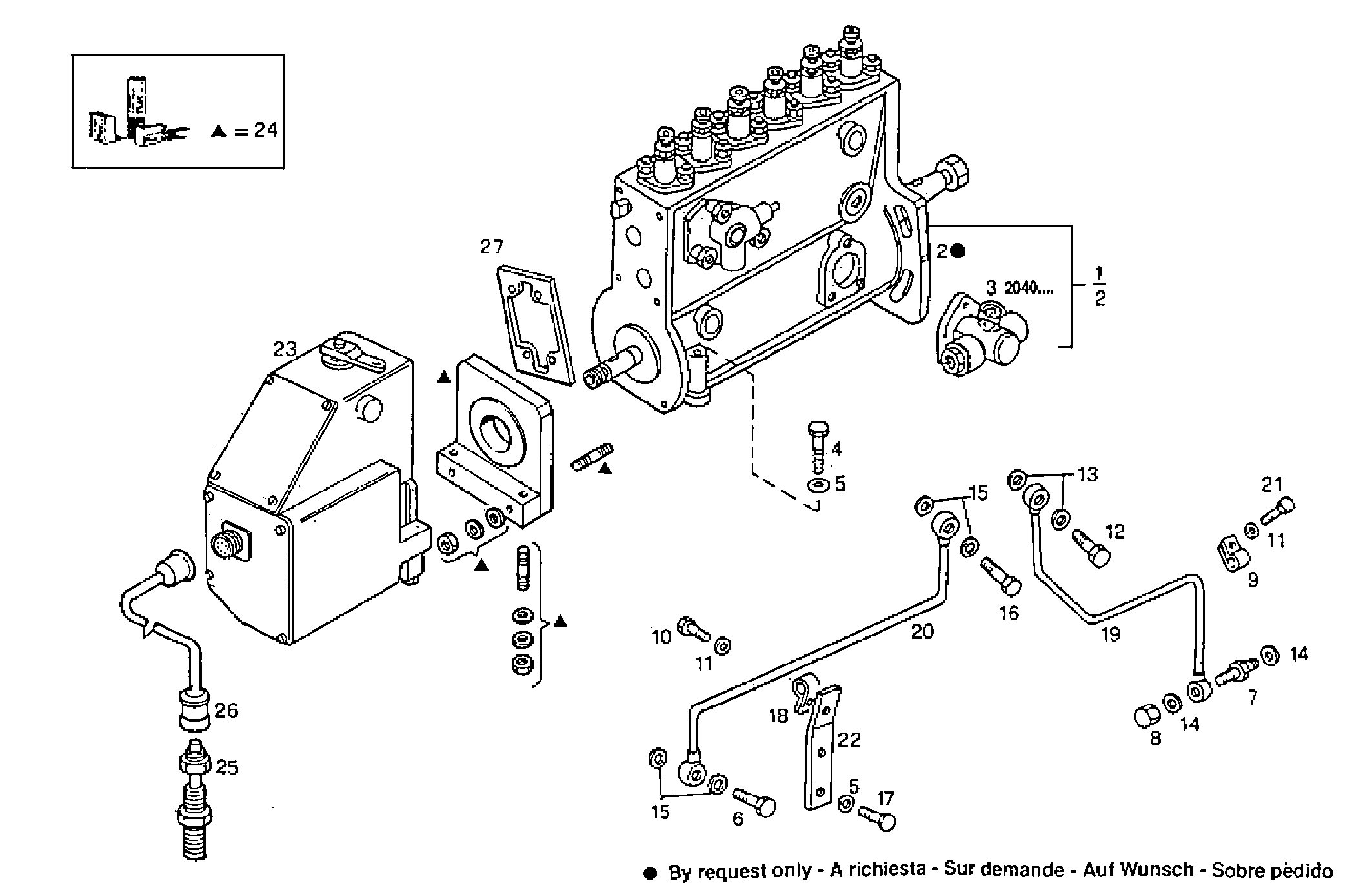

1400.186 INJECTION PUMP ASSY

Iveco/FPT INJECTION PUMP ASSY

Item Part number Description
1 8012017 INLINE INJECT.PUMP ASSY BOSCH
2 8015584 INLINE INJECT.PUMP ASSY
3 8017832 FUEL PUMP ASSY
4 15971621 HEXAGON BOLT M10X1,25X90 MM
5 17090174 SPRING WASHER Ø10X20 MM
6 4864083 SCREW CONNECTOR M14X1,5X30 MM
7 4621393 THREADED UNION
8 11902111 PLUG
9 17316190 PIPE CLIP Ø6 MM
10 16605424 SCREW M8X16 MM (8.8)
11 17089474 SPRING WASHER Ø8X16 MM SP=1,4 MM
12 705736 SCREW CONNECTOR
13 98474305 WASHER Ø10X17 MM SP=2,3
14 4837613 GASKET [up to ...]
15 98474308 SEAL GASKET Ø14X22 MM
16 98479387 SCREW CONNECTOR [from 301968]
17 15004021 HEXAGON BOLT M10X1,25X25 MM
18 17316490 CLIP
19 98443555 PIPE
20 98474954 PIPE
22 4645737 FASTENING BRACKET
23 8029133 ENGINE ACTUATOR
24 8018386 SPEED-GOVERNOR-KIT
25 8018673 PICK-UP
26 8018791 ENGINE HARNESS
27 8093808 GASKET
