8210SRi26.00

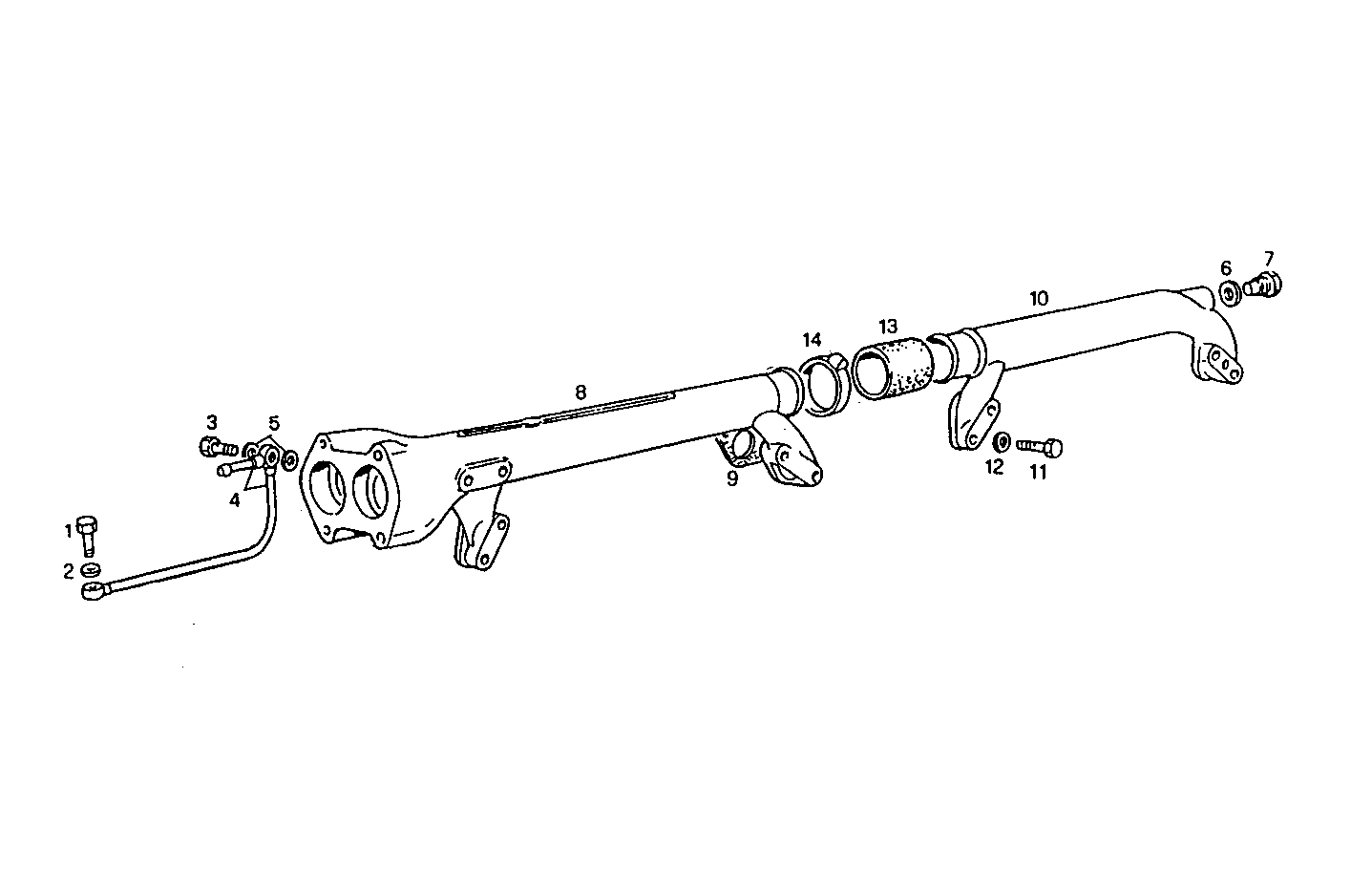

3210.036/01 WATER LINES
Item | Part number | Description |
---|---|---|
1 | 4864080 | SCREW CONNECTOR M10X1,25 |
2 | 4858606 | GASKET Ø10X14X1 MM |
3 | 4864082 | BANJO BOLT M12X1,5X25 MM |
4 | 8007949 | WATER PIPE |
5 | 4858607 | WASHER Ø12X17 MM SP=1,5 MM |
6 | 98429280 | SEAL GASKET Ø20X26 MM SP=1,5 MM |
7 | 10304911 | THREADED PLUG M20X1,5 |
8 | 98427299 | WATER MANIFOLD |
9 | 4852097 | FLAT ENGINE GASKET |
10 | 4616590 | WATER MANIFOLD REAR |
11 | 15888734 | HEXAGON BOLT M10X1,25X55 MM |
12 | 17095114 | WASHER Ø10X21 MM |
13 | 98421377 | RUBBER SLEEVE Ø51 MM |
14 | 17764992 | CLIP Ø50-70 MM |
