8210SRi26.00

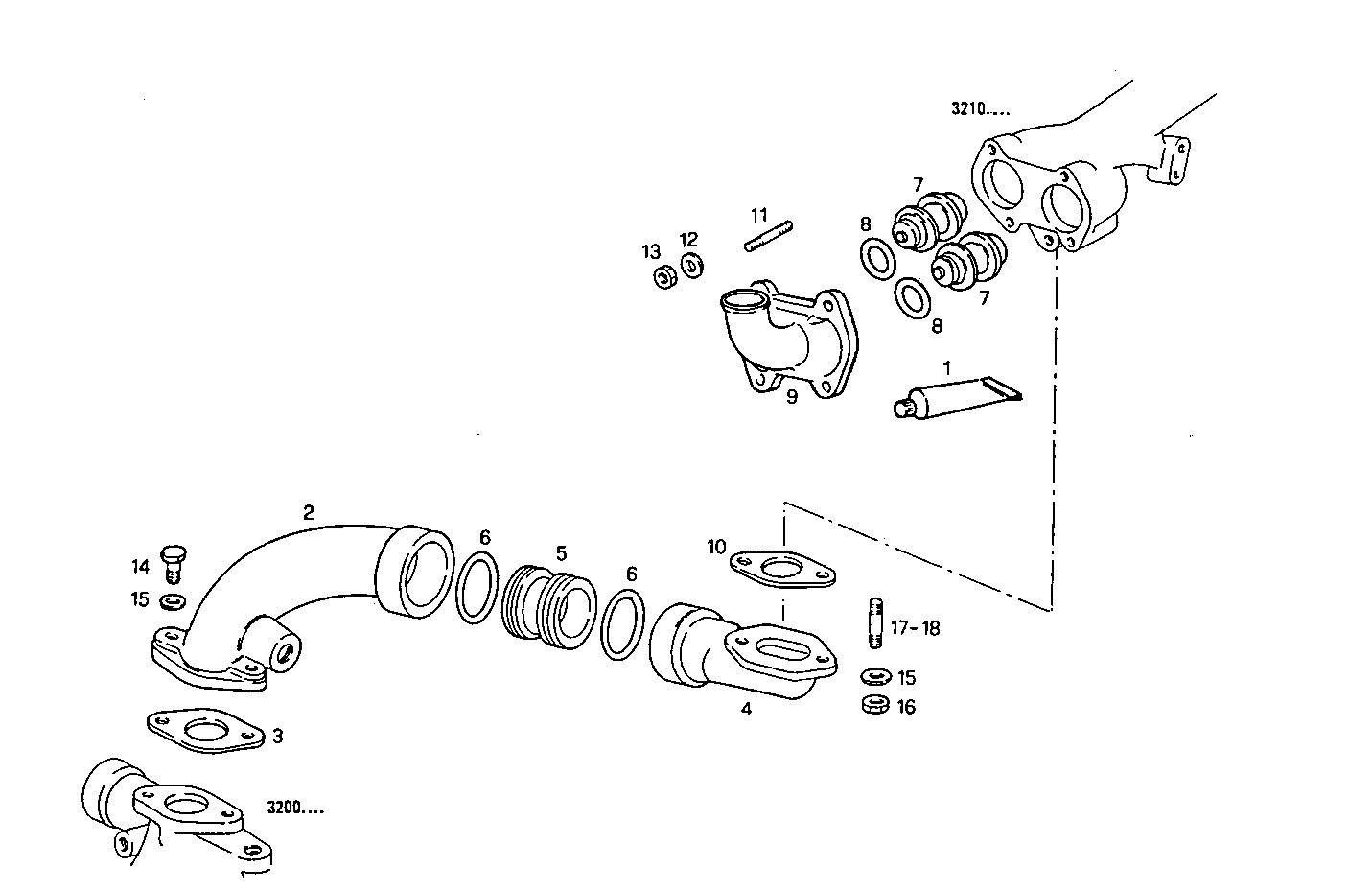

3220.097 THERMOSTAT
Item |
Part number |
Description |
1 |
1905685 |
ADHESIVE/STICKER LOCTITE |
2 |
4799656 |
CONNECTOR SLEEVE |
3 |
61318819 |
FLAT ENGINE GASKET |
4 |
4799654 |
CONNECTOR SLEEVE |
5 |
4799655 |
CONNECTOR SLEEVE |
6 |
98461202 |
O-RING |
7 |
8110948 |
THERMOSTAT |
8 |
4863955 |
O-RING Ø60 MM |
9 |
98418513 |
THERM.BODY COVER |
10 |
4864029 |
FLAT ENGINE GASKET |
11 |
13546821 |
STUD M10X1,25X20X45 MM |
12 |
17793904 |
WASHER Ø10X25 MM SP=1,5 |
13 |
17038221 |
HEXAGON NUT M10 |
14 |
16606024 |
SCREW M8X45 MM |
15 |
17094914 |
WASHER 8x16 |
16 |
17037931 |
HEXAGON NUT M8X1,25 |
17 |
12354521 |
STUD M8X16X22 |
18 |
13544121 |
STUD M8X16X55 MM |
