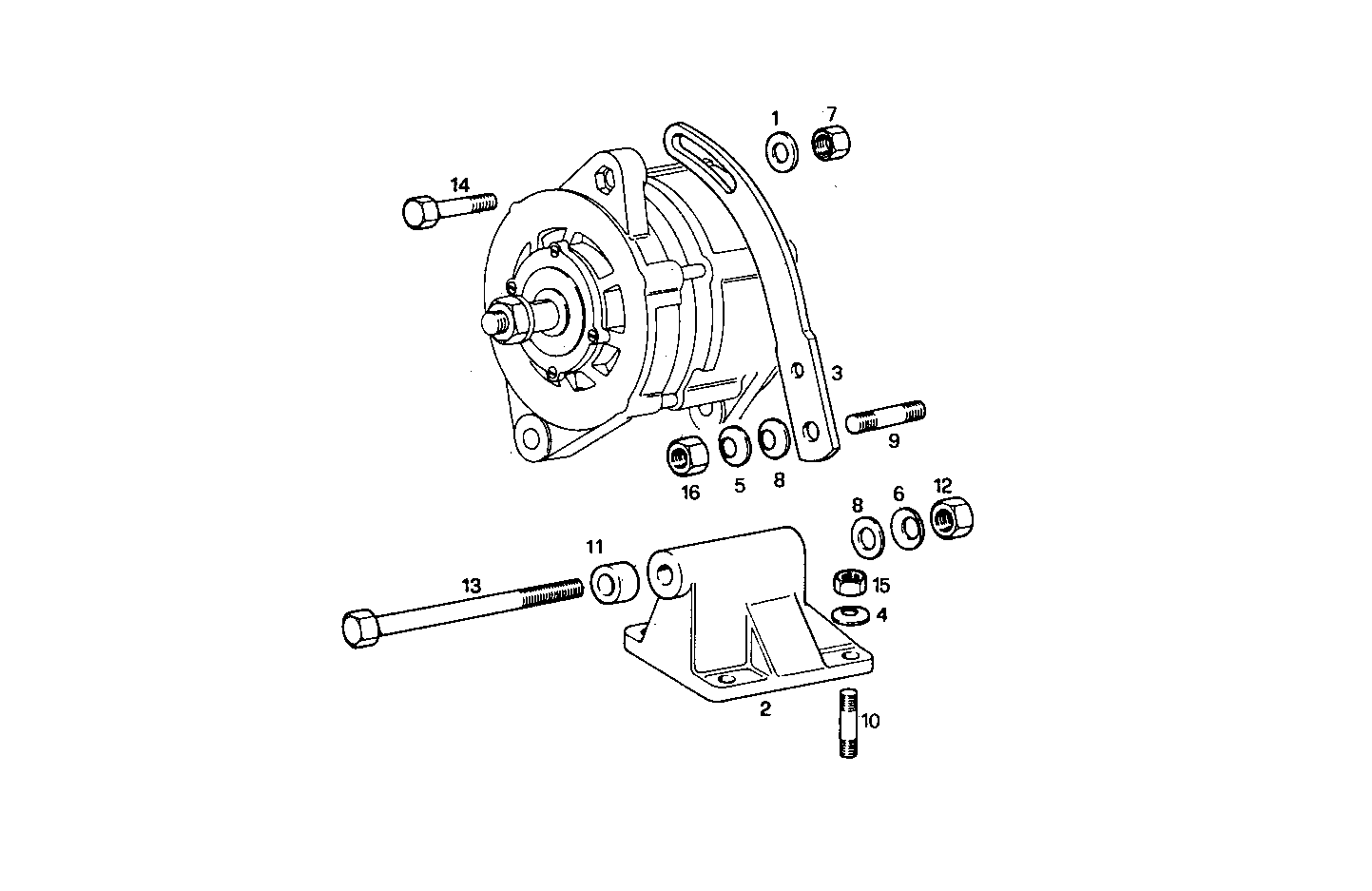

4010.041 MOUNT
| Item | Part number | Description |
|---|---|---|
| 1 | 14496621 | WASHER Ø10,6 MM |
| 2 | 4639185 | GENERATOR SUPPORT |
| 3 | 4831070 | BELT TENSIONER |
| 4 | 11198171 | SPRING WASHER Ø8,4 MM |
| 5 | 11198371 | SPRING WASHER Ø10X20 MM |
| 6 | 11198671 | SPRING WASHER Ø13 MM |
| 7 | 12164711 | HEXAGON NUT M10X1,25 |
| 8 | 12646921 | WASHER Ø12X28 MM |
| 9 | 13453721 | STUD M10X25X30 |
| 10 | 13543621 | STUD M8X16X30 MM |
| 11 | 4831069 | SPACING BAR |
| 12 | 10790111 | HEXAGON NUT M10X1,25 |
| 13 | 15541821 | HEXAGON BOLT M12X1,25X120 MM [up to 565948] |
| 14 | 15970921 | HEXAGON BOLT M10X1,25X35 MM |
| 15 | 17037931 | HEXAGON NUT M8X1,25 |
| 16 | 16101511 | HEXAGON NUT M12X1,25 |
