8210SRi26.01

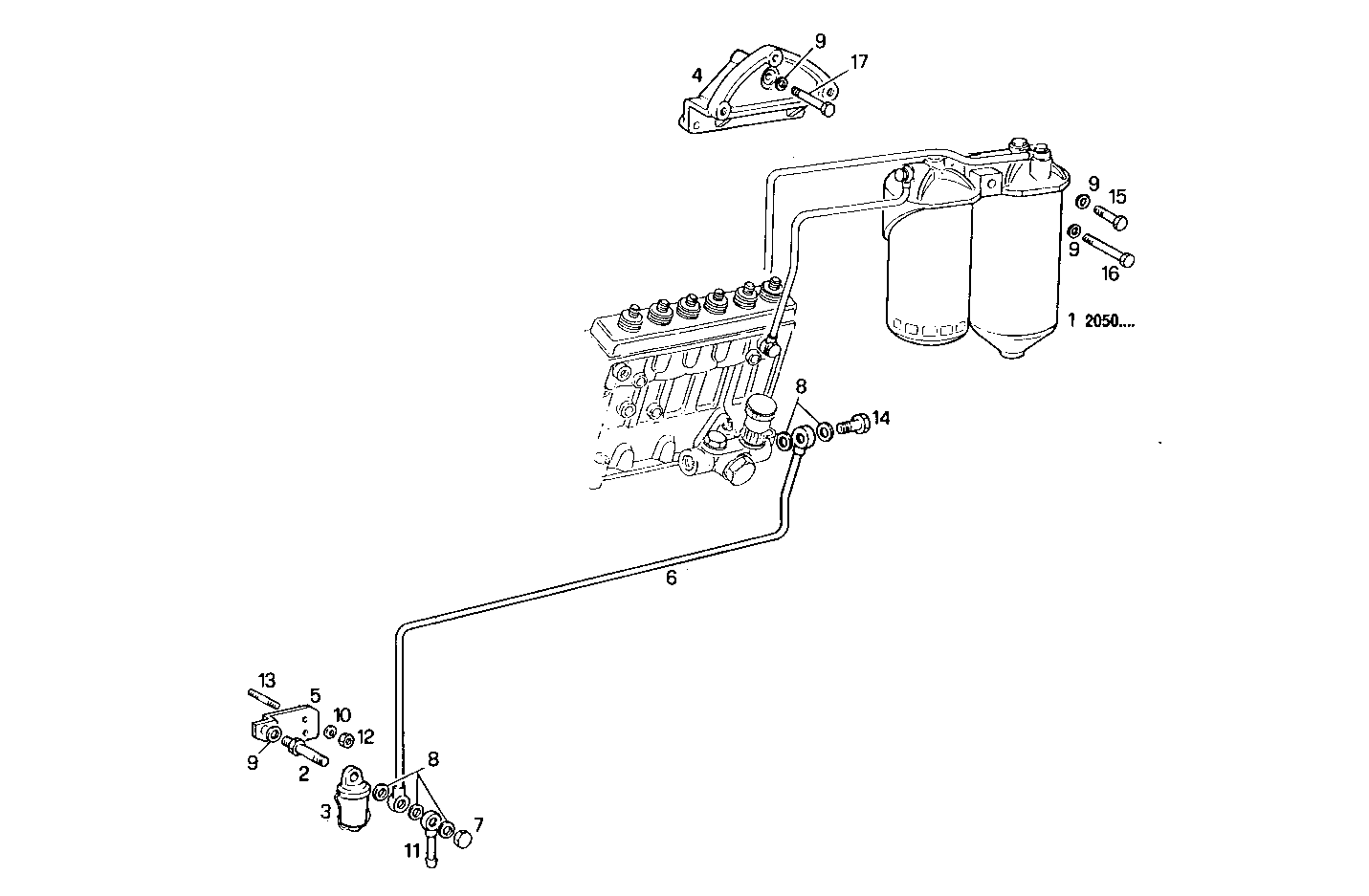

2000.023 FUEL FILTER

Iveco/FPT FUEL FILTER

Item Part number Description
1 4690738 FUEL FILTER ASSY
2 4623038 PIPE SOCKET
3 4797318 FUEL FILTER CORONA
4 4702471 FILTER SUPPORT
5 8006341 RETAINER
6 8013060 FUEL LINE
7 10182817 LOCK PLUG
8 98474308 SEAL GASKET Ø14X22 MM
9 17090174 SPRING WASHER Ø10X20 MM
10 17089474 SPRING WASHER Ø8X16 MM SP=1,4 MM
11 98404882 PIPE SOCKET Ø8 MM
12 17037931 HEXAGON NUT M8X1,25
13 13517630 STUD M8X1,25X50 MM
14 4864083 SCREW CONNECTOR M14X1,5X30 MM
15 15972621 HEXAGON BOLT M10X1,25X140 MM
16 11307021 HEXAGON BOLT M10X40 MM
17 15971330 HEXAGON BOLT M10X75 MM
