8210SRi26.01

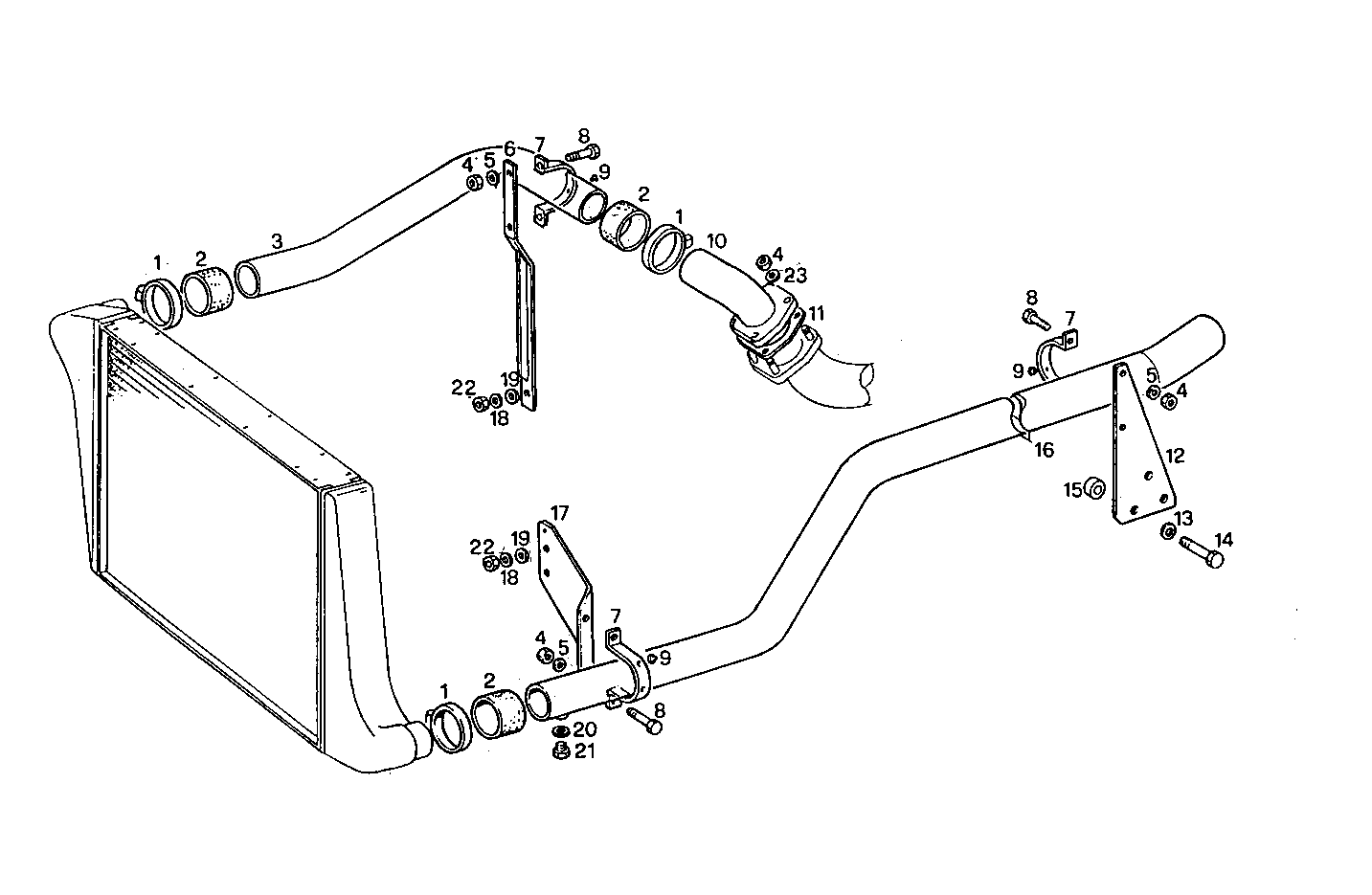

2420.052/02 SUPERCHARGING LINES

Iveco/FPT SUPERCHARGING LINES

Item Part number Description
1 8005839 CLIP
2 42070016 WATER HOSE
3 8005095 AIR PIPE/DUCT
4 17037931 HEXAGON NUT M8X1,25
5 17089774 SPRING WASHER Ø8,4X22 MM SP=2,4 MM
6 8005099 RETAINER
7 8108759 CLIP
8 16605624 HEXAGON BOLT M8X25 MM (8.8)
9 1366290 RUBBER LUG
10 8108884 WATER PIPE
11 98415081 FLAT ENGINE GASKET
12 8005097 RETAINER
13 17092174 SPRING WASHER Ø16X32X3,4
14 11391521 HEXAGON BOLT M16X45 MM
15 4934451 SPACING BAR
16 8005096 AIR PIPE/DUCT
17 8005098 RETAINER
18 17091674 WASHER Ø14X27X3,0 MM
19 16665801 WASHER
20 4858607 WASHER Ø12X17 MM SP=1,5 MM
21 16992211 THREADED PLUG M12X1,5
22 17038821 HEXAGON NUT M14
23 17094914 WASHER 8x16
