8210SRi26.01

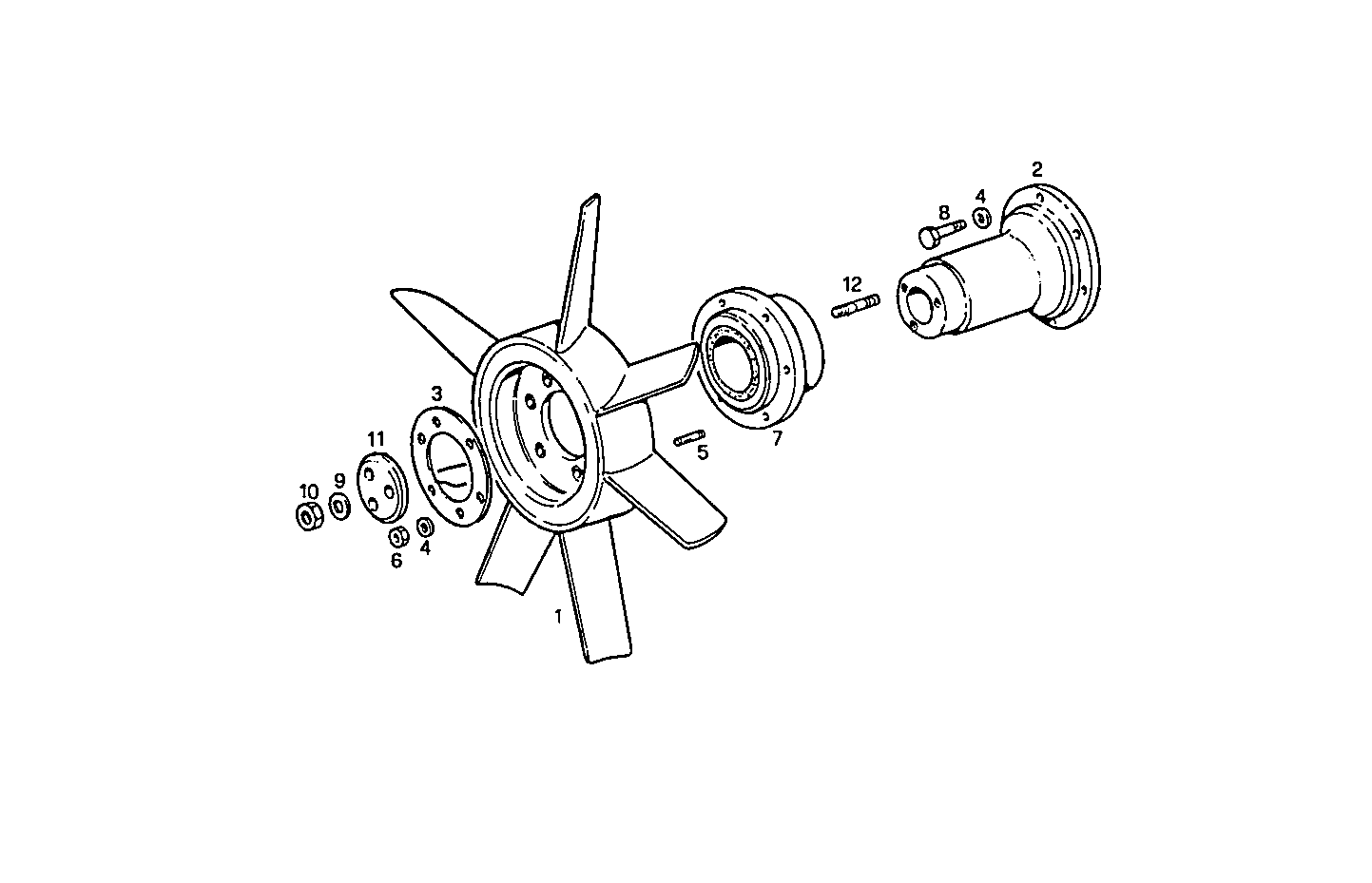

3230.018 FAN
Item | Part number | Description |
---|---|---|
1 | 8104135 | FAN Ø820 MM |
2 | 8108873 | HUB ASSY |
3 | 4933279 | RING |
4 | 17089471 | SPRING WASHER Ø16X8 MM SP=1,4 MM |
5 | 16729224 | STUD M8X16 MM |
6 | 17037931 | HEXAGON NUT M8X1,25 |
7 | 8108850 | FLEXIBLE COUPLING |
8 | 16043721 | HEXAGON BOLT M8X28 MM |
9 | 17090174 | SPRING WASHER Ø10X20 MM |
10 | 17038221 | HEXAGON NUT M10 |
11 | 8108876 | SPACING BAR |
12 | 13546421 | STUD M10X1,25X48 MM |
