8210SRi26.03

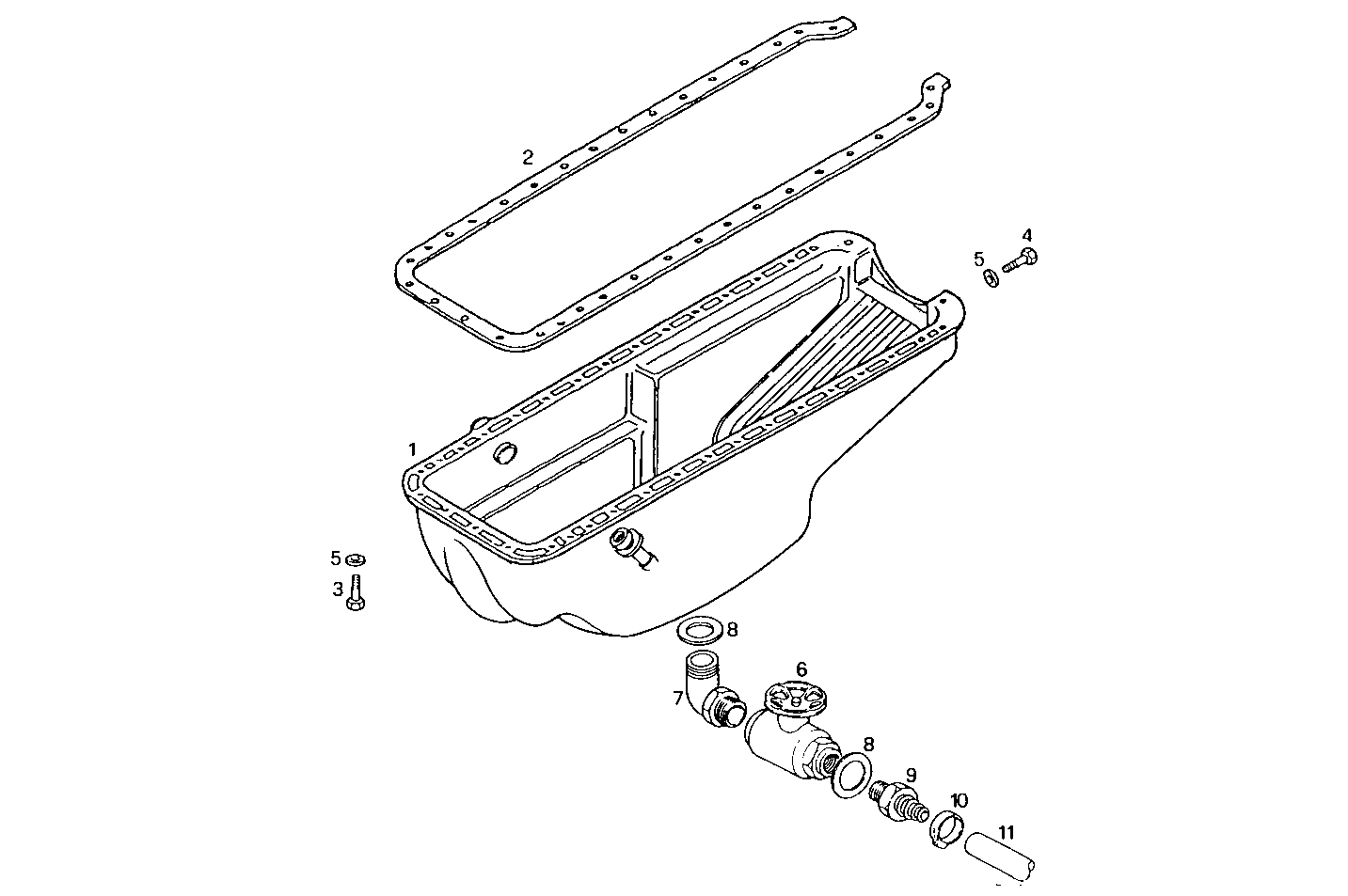

A49020005 DRAIN COCK

Iveco/FPT DRAIN COCK

Item Part number Description
1 4638299 OIL SUMP ASSY
2 98493262 OIL SUMP GASKET
3 10929824 HEXAGON BOLT M10X1,25X25 MM
4 10923624 SCREW
5 17090174 SPRING WASHER Ø10X20 MM
6 4930837 RETAINER COCK
7 4930839 PIPE SOCKET
8 11271460 GASKET Ø21X26X1,5 MM
10 17764592 CLIP Ø20/32 MM
11 4931236 OIL HOSE Ø24X18 - L=680 MM
