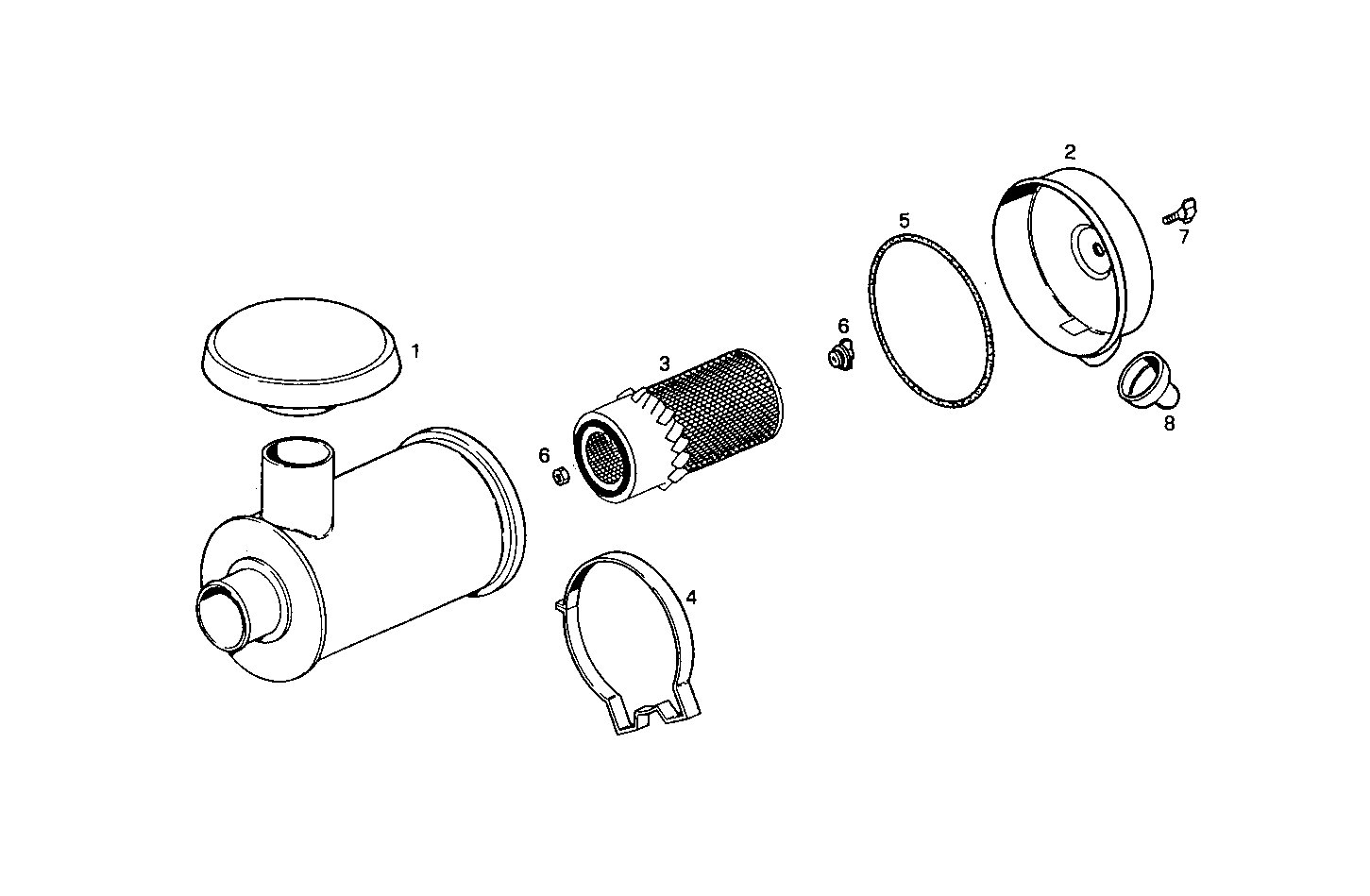

T2121004 DRY AIR CLEANER - (components)
Item | Part number | Description |
---|---|---|
1 | 8016969 | COVER |
2 | 8092466 | COVER |
3 | 8016976 | AIR FILTER ELEMENT PRIMARY |
4 | 8016968 | CLIP |
5 | 8092768 | WASHER |
6 | 8092461 | WING SCREW |
7 | 8092468 | NUT |
8 | 8092459 | VALVE |
11 | 8093575 | NUT |
