8210SRi27.00

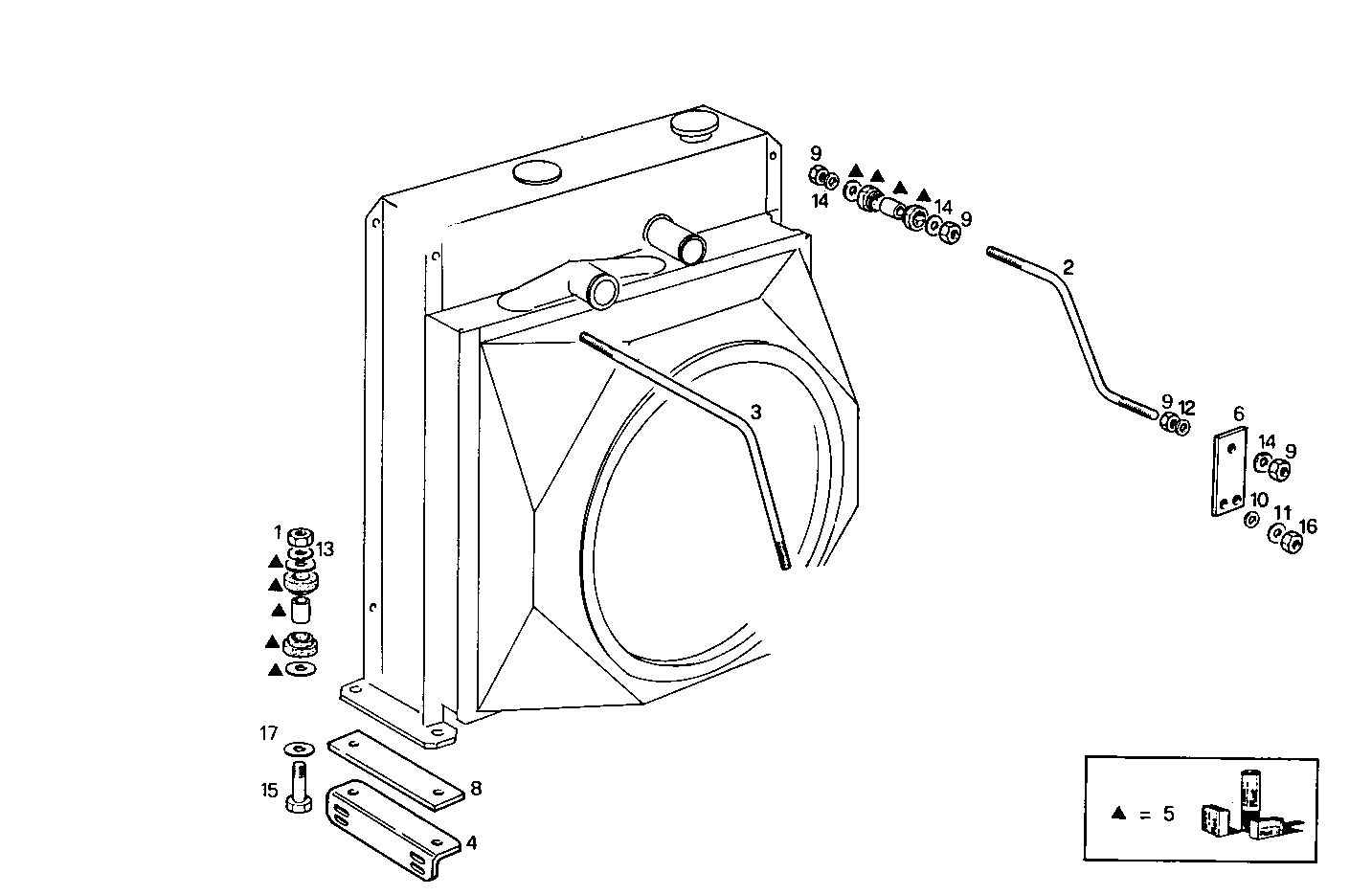

3300.007/02 RADIATOR

Iveco/FPT RADIATOR

Item Part number Description
1 17038921 NUT M16X2
2 8010577 TIE ROD RIGHT
3 8010578 TIE ROD LEFT
4 8087131 RETAINER
5 8090341 KIT-RADIATOR A.S. COMPLETE
6 8010579 RETAINER RIGHT
8 8010041 SPACING BAR SP=7 MM
9 17038421 HEXAGON NUT M12 (8)
10 17091674 WASHER Ø14X27X3,0 MM
11 17095504 WASHER Ø14X28 MM
12 17095304 WASHER Ø12X24 MM
13 17092174 SPRING WASHER Ø16X32X3,4
14 17091374 SPRING WASHER Ø12X30X3,0 MM
15 16614624 HEXAGON BOLT M16X40 MM
16 17038821 HEXAGON NUT M14
17 17095704 WASHER Ø16X30 MM
