8210SRi27.01

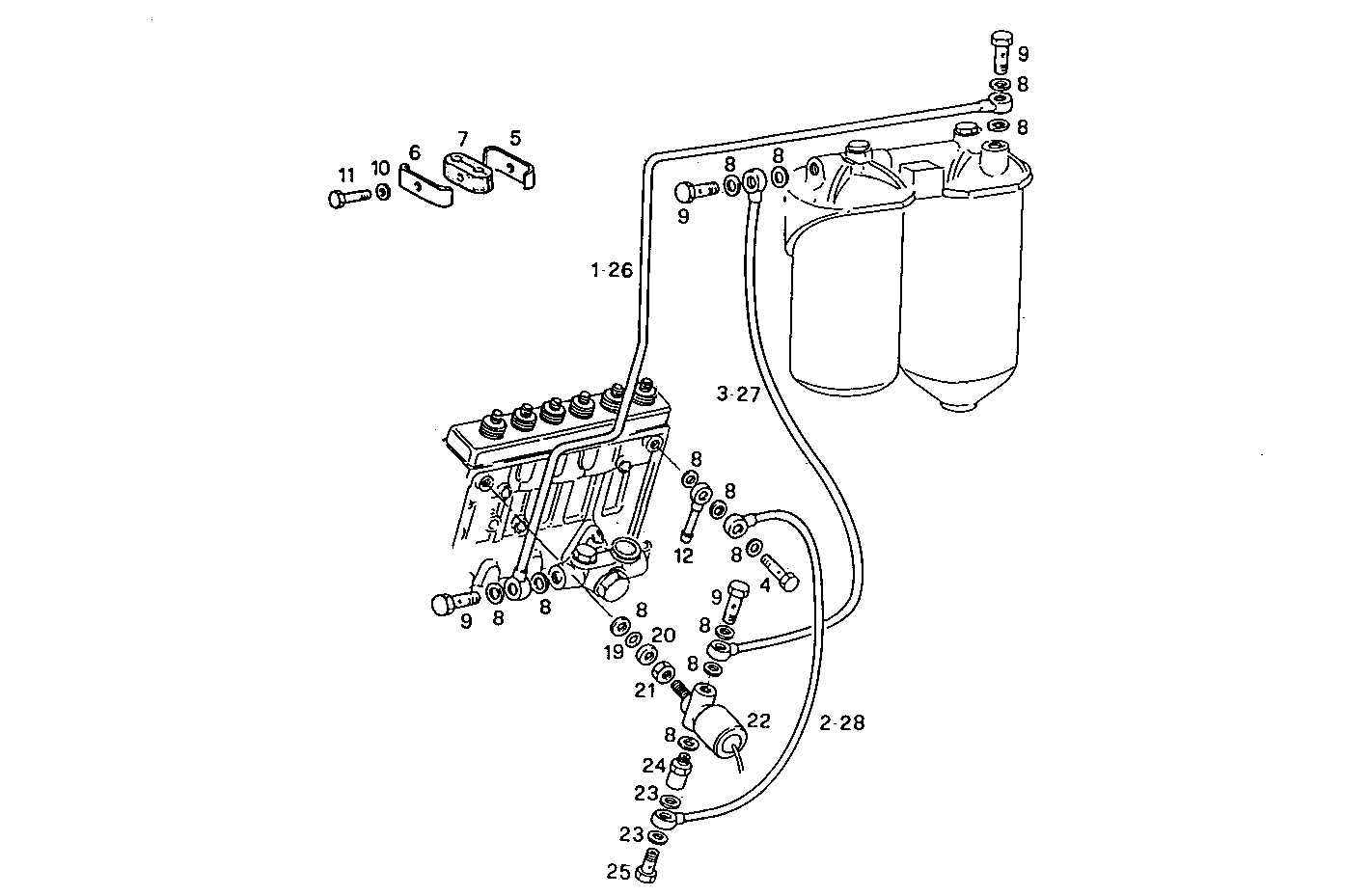

2030.105 FUEL LINES

Iveco/FPT FUEL LINES

Item Part number Description
1 4865209 FUEL LINE
2 8012628 FUEL LINE
3 8113819 INJECTION LINE
4 61320129 FUEL LINE
5 4644289 CLIP
6 4644288 CLIP
7 4871771 RUBBER LUG
8 4858608 SEAL GASKET dia.14x19,5x1,5
9 4684083 INTERIOR PANEL
10 17088474 WASHER Ø6X12 MM
11 16603824 SCREW M6X25
12 98404882 PIPE SOCKET Ø8 MM
19 17281581 O-RING Ø12,37X2,62 MM
20 8006339 CAP
21 16508711 NUT M14X1,5 [from 05-92]
22 8017500 ELECTROVALVE [from 04-94]
23 98474308 SEAL GASKET Ø14X22 MM
24 8102465 VALVE
25 8020609 SCREW CONNECTOR [from 04-94]
26 8016444 FUEL LINE [from 07-94]
27 8019000 FUEL LINE
28 8018344 FUEL LINE [from 07-94]
