Catalogue Menu

8210SRi27.01

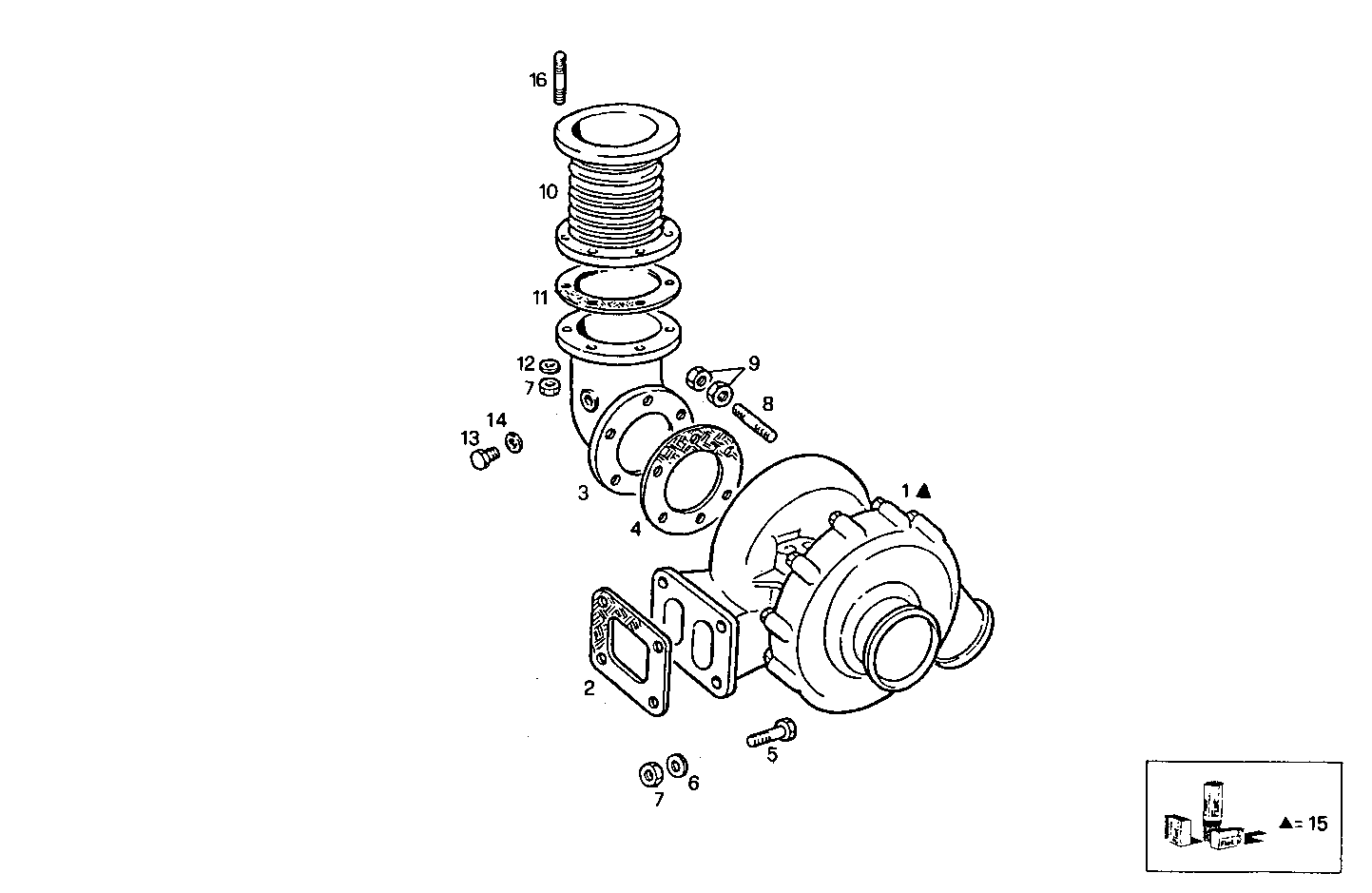

2400.036 TURBOCHARGER

Iveco/FPT TURBOCHARGER

Item Part number Description
1 8009448 TURBOCHARGER ASSY HOLSET
2 4512366 GASKET
3 8104510 EXHAUST ELBOW
4 42075987 GASKET
5 4786751 SCREW
6 10730521 WASHER Ø10,2 MM
7 17038221 HEXAGON NUT M10
8 4731721 STUD
9 8100961 NUT M10X1,25
10 8101671 EXHAUST BELLOWS
11 8009600 GASKET
12 11190579 SPRING WASHER Ø10X20 MM SP=2,3
13 10300611 LOCK PLUG M14X1,5
14 10296160 SEAL GASKET Ø12X18 MM SP=1 MM
15 8092706 KIT-TURBOCHARGER
16 13449524 STUD M10X1,25X15X25
